09.95 6 NC Machine Data (NC MD), NC Setting Data (NC SD)
6.2 General machine data (general data)

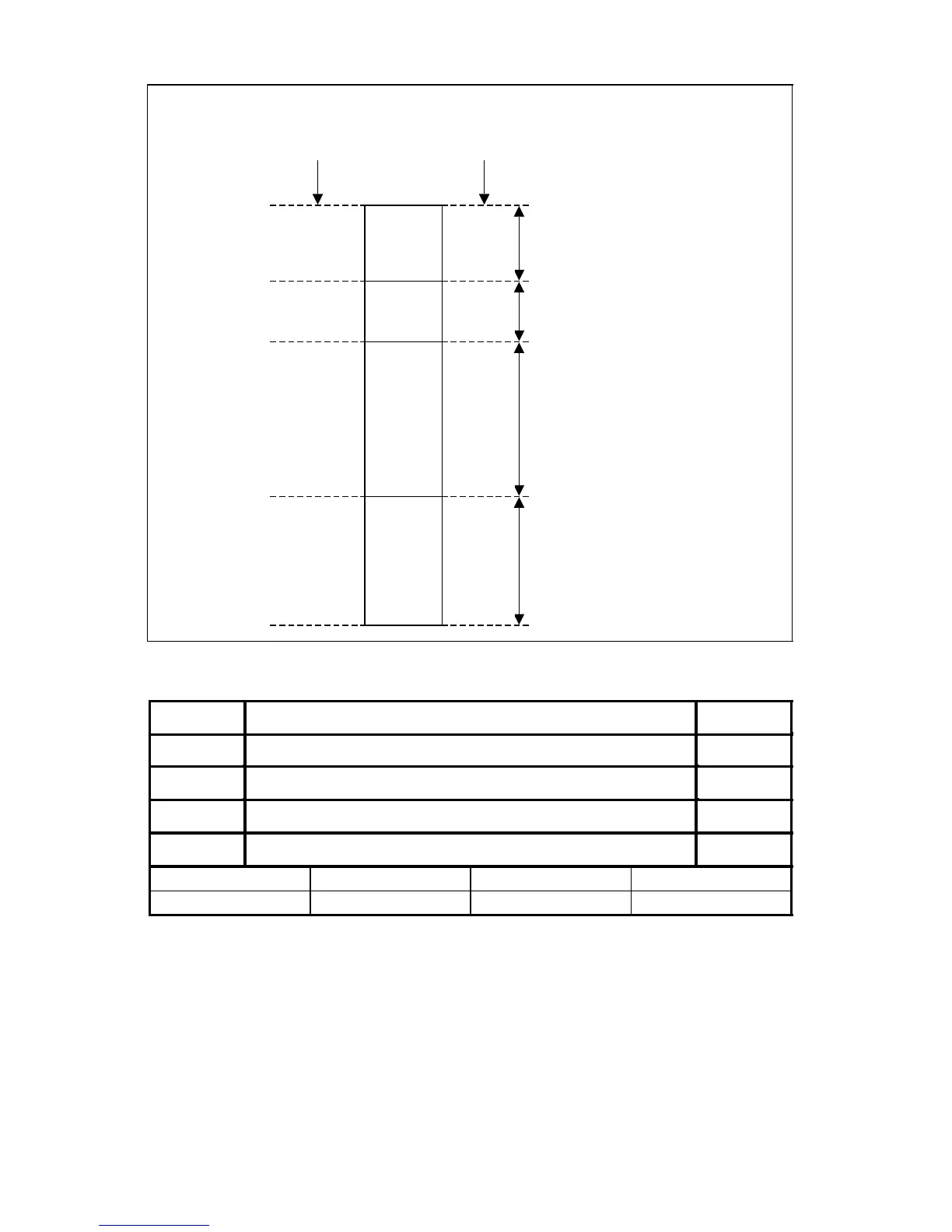

TO area 1
Absolute
D number
D1
D29
TO area 2
TO area 3
TO area 4
D1
D29
D1
D25
D30
D54
D55 D1
D95
D1
D149
D150
D204 D55
TO
memory
D no. to be programmed
for each TO area (for
display also)
User menu for JOG
229
Default value Lower input limit Upper input limit Units
0 0 1 000 –
Active
siee below
User menu for MDA
228
Active
see below
User menu for TEACH-IN
230
Active
see below
User menu for AUTOMATIC
231
Active
see below
User menu for JOG/REFPOINT
232
Active
see below
If a mode is selected and the standard system basic menu for this mode does not appear on
the screen, it is possible to define any user menu as the new basic menu for this mode by
entering the user menu number.
If value 0 is entered, the standard system basic menu when this mode is selected.
Note:
A change of NC MD 228 - 232 becomes valid the next time this mode is selected.
©
Siemens AG 1992 All Rights Reserved 6FC5197- AA50
6–21
SINUMERIK 840C (IA)
