4-92

1010GCNFM-3C

Section 4

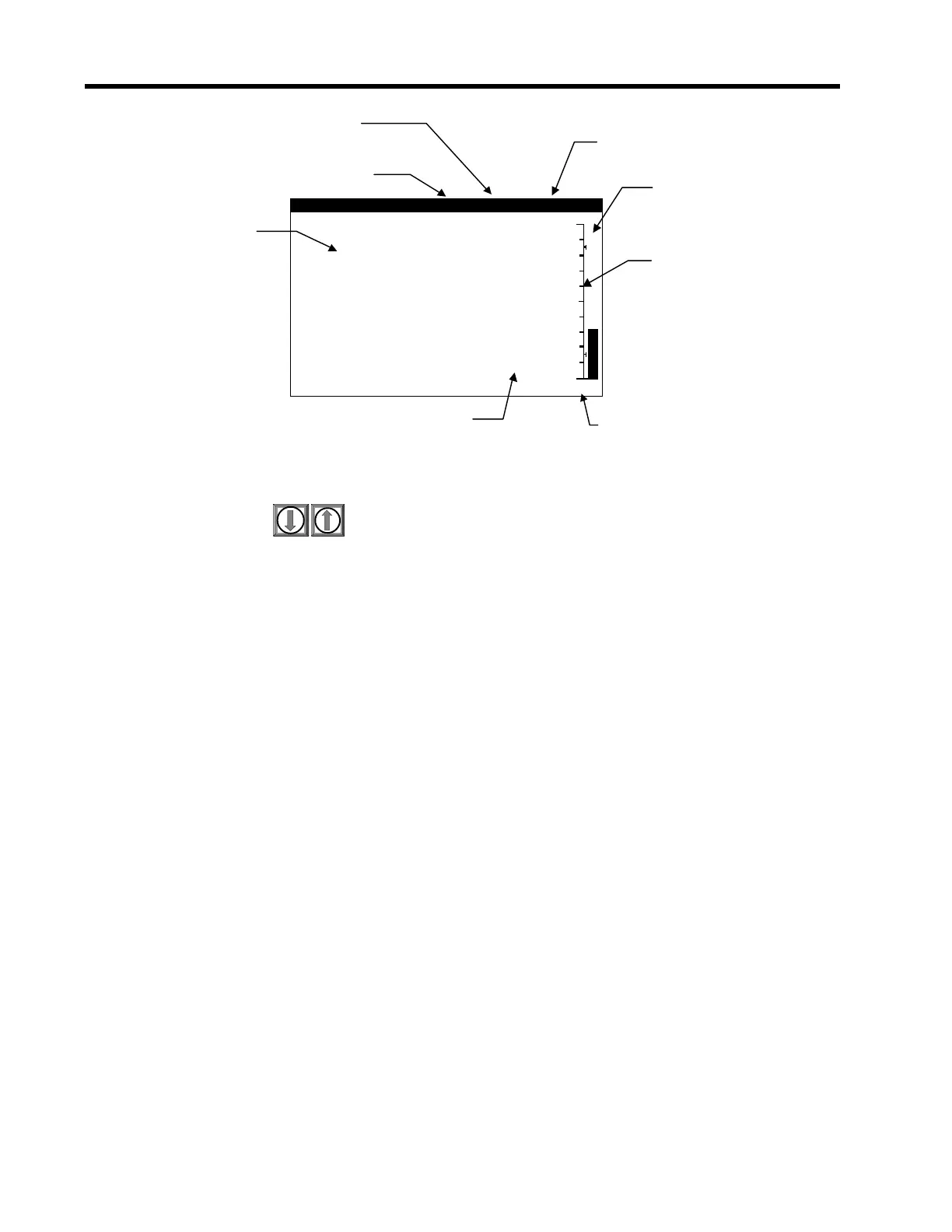

You can press the to scroll between the available display screens.

Controlotron

Dual Path [2]

SITE #1

Vfo

0.0

80.20

TOTAL KCU FT Vs

18.20

80.2

FLOW CU FT/MIN

200.0

323

C/M

Meter Type

Selected

Measurement

Path

Site Setup Name

Percent

of Span

Bargraph

Display

Instantaneous

Volumetric

Flow Rate (%)

Measured

Sonic Velocity

Flow

otal

Vfo

(Volumetric

verage

Flow

Output)

Siemens

Table of Contents33
Introduction41
Important Safety Considerations41
Flowmeter Installation Steps41
Theory of Operation42
Introduction42
Flow Profile Compensation43
Standard Volume Compensation43
FUG1010GCN Flowmeter Installation Instructions45
FUG1010GCN Flowmeter Types45
Power Supply Wiring45
Input Power Connector (P10) Wiring45
Graphic Display Settings46
FUG1010GCN Interconnection Diagram47
Getting Started49
The Keypad Enable Switch49
The FUG1010GCN Keypad49
Keypad Function Chart49
Introduction to the FUG1010GCN Menu Screens50
Explanation of Callouts50
How to Use the Installation Menu51
Accessing and Leaving the Menu51
How to Enter Data52
Selecting Items from an Option List52
Multiple Select Option Lists53
Entering Numeric Data54
Entering Alphanumeric Strings54
The Meter Type Menu55
Dual Path Flow55
Selecting a Meter Type55
Creating a New Site Setup56
The FUG1010GCN Installation Menu59
Manual Conventions59
General Installation Menu Notes59
The Channel/Path Setup Menu60
How to Recall a Site Setup61
How to Enable and Disable a Measurement Channel61
How to Create/Name a Site Setup62
How to Enable/Disable Site Security62
How to Delete a Site Setup63
How to Save/Rename a Site Setup63
The Pipe Data Menu64
Pipe Configuration65
Pipe Configuration Menu Structure66
Pipe Configuration Option List Definitions66
Pipe Data Menu Structure67
How to Select a Pipe Class68
How to Select a Pipe Size69
How to Enter the Pipe OD (In. or MM)69
How to Select a Pipe Material69
How to Enter the Wall Thickness69
Pipe ID (In)70
CC129 Thickness70
Thermexp Coef70
Mod of Elast PSI71
The Gas Parameters Menu71
Gas Parameters Menu Structure and Defaults72
Base Temp and Base Pres. PSIA72
Spec. Heat Ratio72
Viscosity (Cp)72
Fixed MW G/Mole73
Estimated Vs73
Fixed Temp and Fixed Pres. PSIA73
Z Base74
Z Actual74
AGA8 Comp74
AGA8 Table Generation and Installation Instructions75
Example #176
Example #277
How to Select a Transducer Model79
How to Select a Transducer Size80
How to Select a Xdcr Mount Mode80
Reviewing the Spacing Method81
How to Use the Spacing Offset81
The Number Index Menu Cell82
The Ltn Menu Cell82
How to Use [Install Completed?]82
Force Transmit Procedure84
The Zero Flow Adjust Menu85
Autozero86
Actual Zero86
Reversamatic87
Zeromatic (Definition)87
Using Actual Zero87
Using Reversamatic88
Zeromatic (Optional Function)89
The Operation Adjust Menu90
Operation Adjust Menu Structure91
Damping Control91
Deadband Control92
Memory/Fault Set92
Memory Delay (Sec)92
The Flow/Total Units Menu93
Totalizer Controls93
The Flow/Total Units Menu Structure94
Flow Volume Units94
Std Vol Corr94
Flow Time Units95
Flow Display Range95
Flow Display Scale95
Total Volume Units95
Totalizer Scale96
Total Resolution96
Totalizer Mode97
Batch/Sample Total97
The Data Span/Set/Cal Menu97
The Data Span/Set/Cal Menu Structure98
Span Data99
Pgen100
Max Flow100
Min Flow101
Max Flow2101
Min Flow2101
Max Vs M/S101
Min Vs M/S101
Max SG101
Min SG101
Max Base S.G102
Min Base S.G102
Max Viscosity Cs102
Min Viscosity Cs102
Max Temperature102
Min Temperature102
Set Alarm Levels102
High Flow102
Low Flow103
High S.G103
Low S.G103
High Base S.G103
Low Base S.G103
High Viscosity Cs103
Low Viscosity Cs103
High Temperature103
Low Temperature103
Interface Vs (M/Sec) and Interface SG103
Turbulence104
Makeup Latch104
Calibrate Flowrate105
Intrinsic105
Kc Calibration105
Kc Factor106
Selecting Kc Factor106
Calibration Tables 1 through 3106
The Stripchart Setup Menu107
The Stripchart Setup Menu Structure107
Select Data108
Data Display108
Time Base108
Stripchart Clear109
The Datalogger Setup Menu109
Datalogger Mode109
The Datalogger Setup Menu Structure110
Datalogger Data111
Alarm Codes and Descriptions111
Log Time Interval112
Datalogger Events112
Display Datalogger112
The I/O Data Control Menu113
The I/O Data Control Menu Structure114
Analog Output Setup115
System 1010 Analog Outputs115
Analog out Setup Data Categories115
Assigning Io Output Functions115
Assigning Vo Output Functions116
Assigning Pgen Output Functions116
Pulse Output (Pgen Wiring)116
Relay Setup117
Assigning Relay 1 and 2 Functions117
Relay Option List117
Analog Input Setup118
Setting up the Analog Current Input118
Diagnostic Data Menu Structure119
Main Diagnostics Screen120
Main Diagnostic Menu Description120
Flow Data Menu120
Flow Data Menu Items121
Vs M/S121
Ancal121
The Application Info Menu122
Application Info Menu Items122
The Gas Data Menu123
Gas Data Menu Items123
The Site Setup Data Menu123
Site Setup Menu Items124
Introduction to [HF] Menu Item124
Using the [HF] Menu Item124
Manual" Adjustment125
Automatic" Adjustment126
The Test Facilities Menu127
Test Facilities Commands127
Detection Modes128
The Test Facilities Graph Screen128
Entering the Diagnostic Graph Screen129
Diagnostic Text Display129
Time Base Control129
Correlated Plot129
Command Modes130
Digital Damping Control (Hot Key 1 and 2)130
Transit Time Adjustment (Hot Key 3)130
Zero Crossover Adjustment (Hot Key 4)130
Envelope Threshold Adjustment (Hot Key 5)131
Signal Masking Function (Hot Key 6)131
Description of Graph Screen Text Display Parameters132
Hot Key Summary132
Makeup132
Troubleshooting Tips132
Flow Computer Messages133
Using the "F4" Reset Sequence133
The Meter Facilities Menu and Graphic Display Screen135
Preferred Units135
The Table Setups Menu136
Pipe Table136
Pipe Table Menu Structure136
Create/Edit Pipe137
Delete Pipe138
The Datalogger Control Menu139
Datalogger Control Menu Structure139
Display Datalogger139
Output Datalogger140
Circular Memory140
Est Log Time Left141
Clear Datalogger141
The Memory Control Menu141
Memory Control Menu141
The Analog Output Trim Menu142
Analog Output Trim Menu Structure142
Current Output Trim (Io1 & Io2)142
Voltage Output Trim (Vo1 & Vo2)142
Pgen Output Trim (Pgen 1 & Pgen 2)143
RTD Calibration by Data Entry144
The Clock Set Menu144
Clock Set Menu Structure144
Date144
Time145
Setup145
Setup Menu Structure146
Baud Rate146
Parity146
Data Bits147
Line Feed147
Network ID147
RTS Key Time148
Backlight148
System Info148
System Info Menu Structure148
The FUG1010GCN Graphic Display Screens148
Hardware Installation Guide151
Preparing to Mount the Transducers151
How to Identify 1011 Transducers and Mounting Hardware151
Selecting a Location for Clamp-On Transducers152
Clamp-On Transducer Mounting Modes152
Preparing the Pipe153
Reflect Mode-Mounting Frames and Spacer Bar154
Direct Mode-Mounting Frames, Spacer Bar & Spacing Guides156
Using 1012T Mounting Tracks160
Installing a 1012T Mounting Track in Reflect Mode160
Installing a 1012T Mounting Track in Direct Mode162
FUG1010GCN Application Notes165
To Obtain Technical Assistance165
Overview of System Performance165
Accuracy165
Repeatability166
Data Stability166
Data Scatter166
Data Drift166
Flow Conditions166
Low Flow Rates166
Flow Data Scatter and Damping167
FUG1010GCN Damping and Slewing Controls167
Time Average167
Smartslew167
Notes on Fluid Conditions167
Erroneous Fluid Parameter Specification167
Turbulence167
Two-Phase Fluids168
Overview of FUG1010GCN Memory Resources168
Active Memory168
Site Storage Memory168
Datalogger Memory168
Reference Tables169
FUG1010GCN Reynolds Compensation Factor169
Terminology Chart170
The NEMA Dual Path Menu Chart172
The Meter Menu172
The Clamp-On Gas Menu172
The Meter Facilities Menu175
