3.3 INTRODUCTION TO THE FUG1010GCN MENU SCREENS

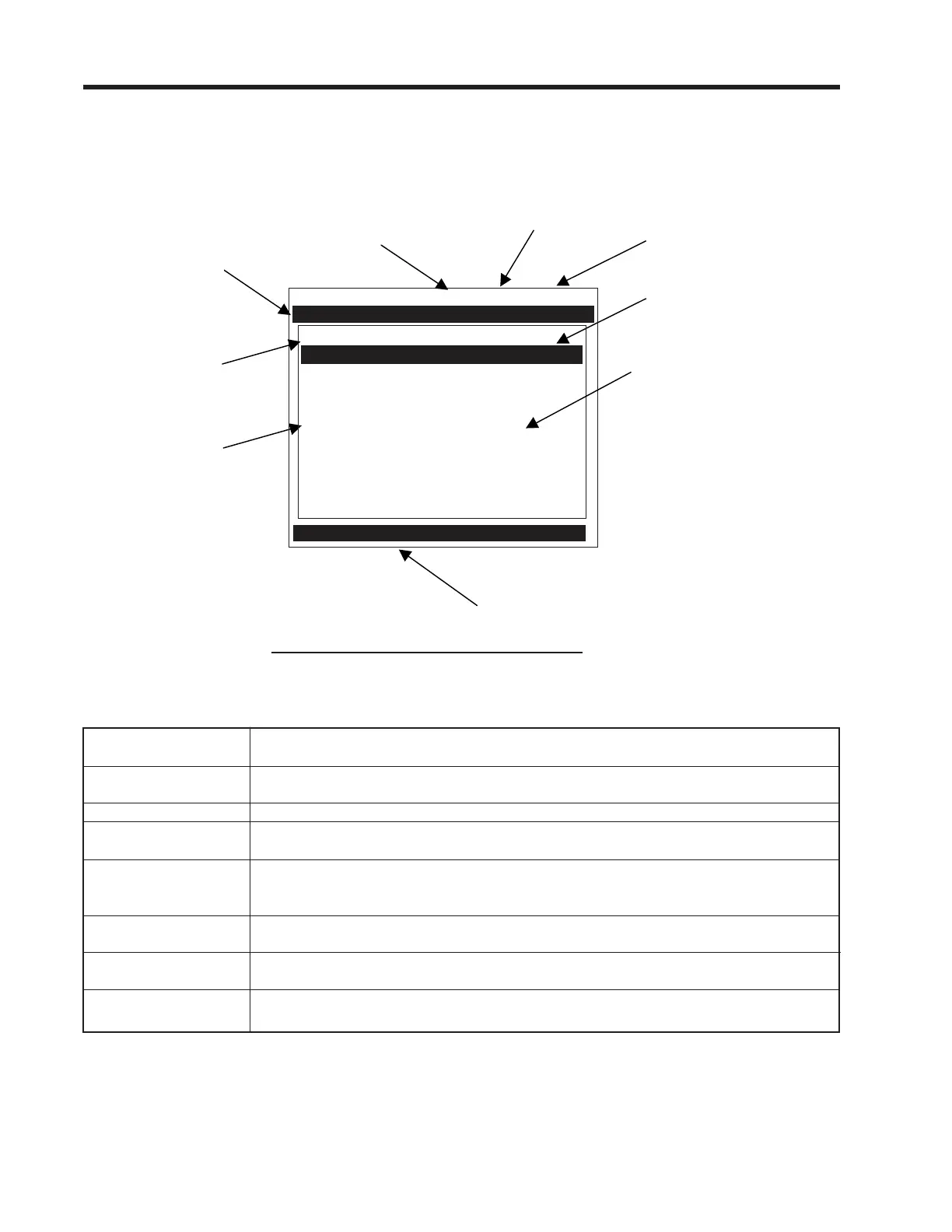

The figure below shows a typical FUG1010GCN menu screen for a dual-channel system (in this case,
the Pick/Install Spool Menu).
Menu Prompt Line
(Reverse Video)
TYPICAL INSTALLATION MENU SCREEN
Menu Cell Data
(left-hand column)
Highlighted Data
Siemens 2 Channel [1] SITE 1
Install Path 1
Transducer Model 1011HG Hi Prec
Transducer Size B2H
Xdcr Mount Mode Direct
Spacing Offset Minimum
Number Index 2
Spacing Method Track 1012TNH
Ltn Value (in) -1.244
Install Completed? Yes
Zero Flow Adjust Actual Zero
Pick/Install Xdcrquid Class
Site Name Identified
Menu Cell Data
(right-hand column)
Current Selected
Measurement
Channel
Current Selected Menu
Current Selected
Meter Type
Highlighted
Menu Cell
Scroll List and select desired Model
EXPLANATION OF THE CALL-OUTS
Menu Prompt Line When you select a menu cell, a highlighted text prompt appears on the top of the screen to
explain the function of the cell.
Current Selected Meter [2 Channel] indicates Dual Channel meter operating mode selected.
Type
Selected Channel The [1] indicates that measurement Channel 1 is currently selected.
Highlighted Menu Cell The menu cursor (highlight bar) shows where you are currently working by reversing the
display colors for that cell (white type on black).
Highlighted Data The right-hand column shows the current value highlighted. Pressing the <Right Arrow>
provides access to an option list or numeric field where you can change the current value
as required.
Menu Cell A menu cell is an individual location within a menu (e.g., Gas Parameters) that stores a
parameter (either a numeric entry or an option list selection.
Menu Cell Data The right-hand column shows the current value stored by left-hand column menu cell. The
Gas Parameters menu includes option list items and numeric entries.
Current Selected Menu The highlighted bar at the bottom of the screen shows the name of the menu that you are
accessing (e.g., Gas Parameters).
