4.12 THE METER FACILITIES MENU AND GRAPHIC DISPLAY SCREEN
Meter Facilities functions are available immediately after pressing <MENU>. The Meter Facilities menu
provides global control that enables you to identify and activate the following functions and features of
the hardware supported by this model (refer to Section 6, paragraph 6.6 for Meter Facilities Menu struc-
ture).
z Select data entry and meter output in either English (default) or metric units.
z Customize the default pipe and transducer tables to suit your requirements.
z Output, display, erase and select a memory management method for the Datalogger.
z Determine the amount of memory available.
z Verify/Adjust the analog output voltage and current using a multimeter.
z Verify/Adjust the analog pulse output using a frequency counter.
z Calibrate the RTD temperature sensors.
z Set the system clock/calendar.
z Obtain detailed software/hardware identification.
4.12.1 PREFERRED UNITS
The selection you make in this menu cell becomes the default units for all menu items and data outputs.
You can choose either English or metric units. The factory setting is English.
To specify metric default units for all meter functions:
1. Press the <Right Arrow> to access the [Preferred Units] option list.
2. Use the <Up or Down Arrows> to move the cursor to [Metric].
3. Press <ENT> to register your selection.

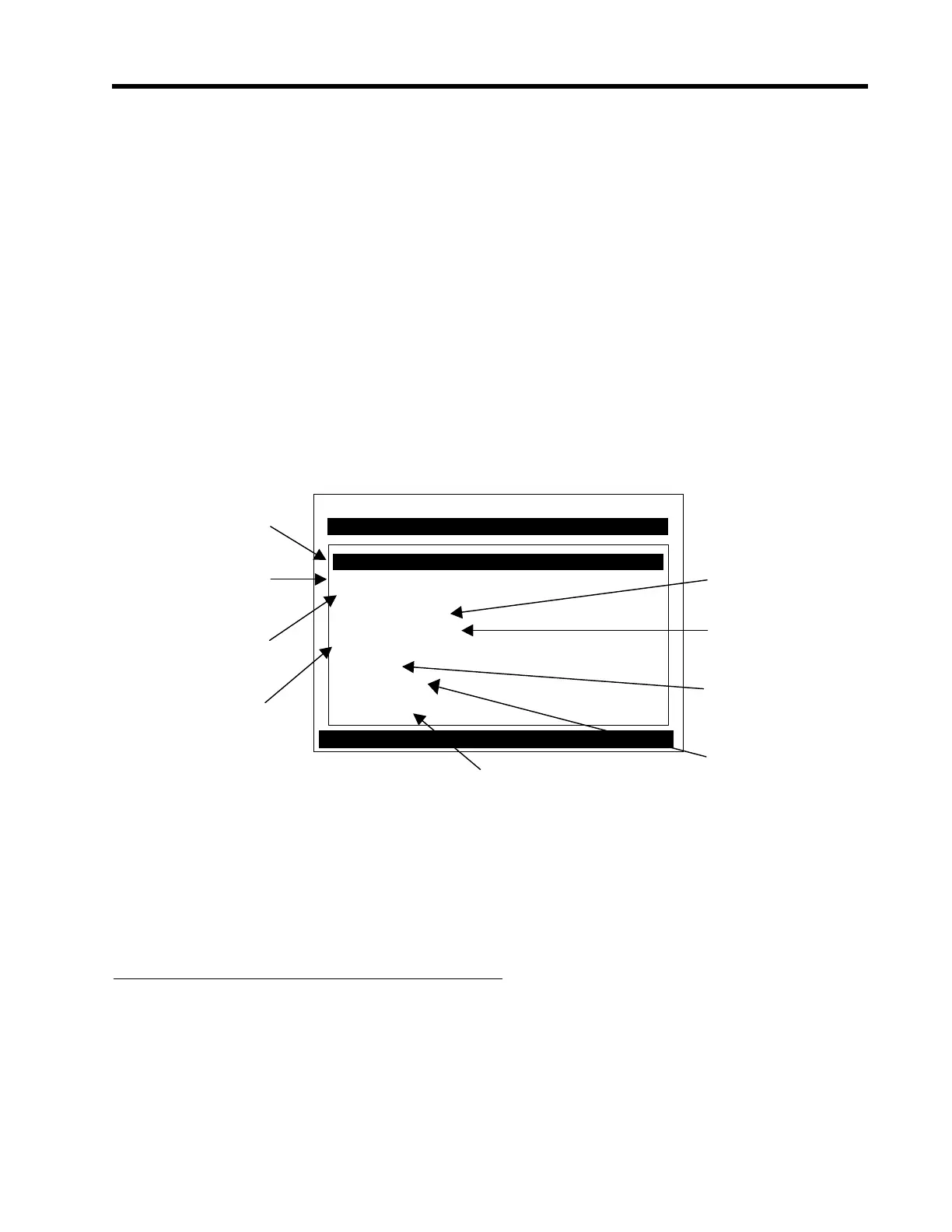

Siemens Dual Path SITE 1
Table Setups
Datalogger Control
Memory Control
Analog Output Trim
RTD Calibrate
Clock Set 09.02.99 09.30.06
RS-232 Setup 9600 Odd 7
Backlight On
System Info
Preferred Units English
Meter Facilities
Select Default Units for all Menus
This menu allows you to
specify default
measurement units.
This menu allows you to
work with and select a
datalogger.
This menu allows you to
calibrate the RTD
Temperature Sensors.
This menu allows you to
view the number of data
memory bytes.
This menu allows you to
fine-tune the analog
outputs.
This menu allows
you to set the
system
clock/calendar.
This menu allows
you to select RS-
232 port
parameters.
This menu allows you to
create or edit pipe and
transducer tables.
This menu shows detailed information about
this model’s hardware and software.
