We recommend Reflect mount whenever possible. This is the simplest way to mount the transducers.
Also, Reflect mount resists abnormal flow profile conditions such as cross-flow within the flow stream.
Reflect mode supports the AutoZero function, which zeroes the meter automatically without user-partici-
pation. In addition, Reflect mount may be the only possibility if conditions do not allow access to the
opposite side of the pipe.
Direct mount provides a shorter sonic beam path. This usually improves performance with sonically
attenuative liquids or pipe materials. We recommend using Direct mount for plastic pipes. Compared to
Direct mounting, Reflect mount requires almost double the amount of a straight pipe run. Therefore,
Direct mount may be the only option if the availability of mounting space is limited.
5.1.4 PREPARING THE PIPE
z Pick a mounting location with the longest straight run. You must have easy access to at least one side
of your pipe. The mounting location must remain full, even at zero flow.
z Decide on your mounting mode (Direct or Reflect). Always use Reflect Mode whenever possible. You
may only need to use Direct Mode if your pipe is plastic.
z After receiving the spacing dimensions from the Installation Menu, prepare the pipe surface. De-
grease the surface, if necessary, and remove any grit, corrosion, rust, loose paint, etc. Use abrasive
material provided to provide a clean contact surface for the transducers.
z Refer to the next sections for illustrated instructions on how to locate each area to be cleaned and
how to use each mounting option.
Please note that the instructions show vertical mounting for clarity purposes only. Do
not install transducers on the top of a pipe.

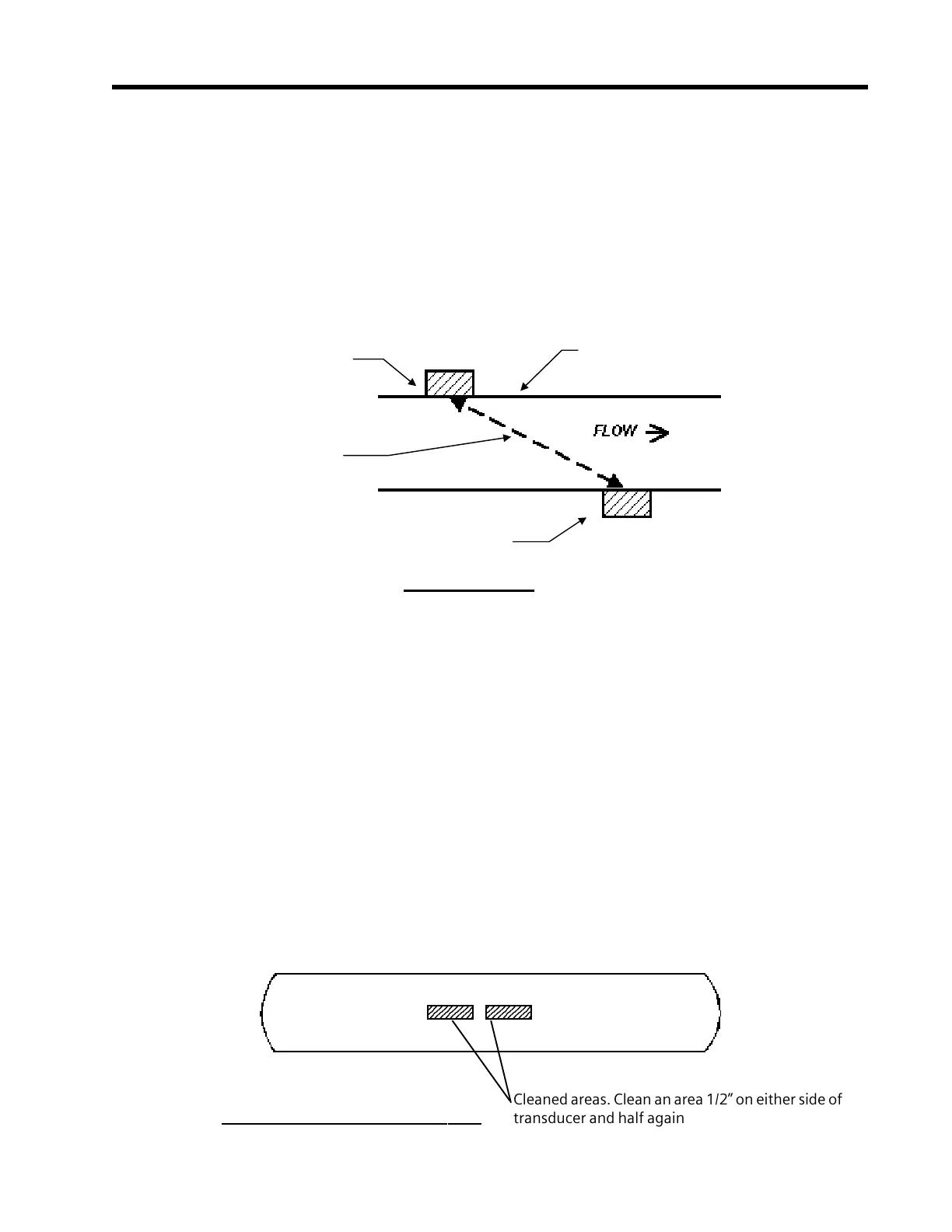

DIRECT MOUNT
Upstream
Transducer
Sonic Path
Pipe
Downstream
Transducer
23456789
23456789
2345678
2345678
Cleaned areas. Clean an area 1/2” on either side of
transducer and half again the length of the trans-
ducer on the front and back.
Pipe
PREPARING THE PIPE SURFACE
To Next Page
