5-12
1010GCNFM-3C
Section 5
5. Once transducer is in place, secure with the transducer clamping screw. Do not overtighten. Observe
the upstream/downstream orientation and connect the transducer cable to the computer’s input
jack. If a dual-channel unit, make sure you connect the cable to the input jacks of the correct channel.
Repeat this procedure for the number index transducer.

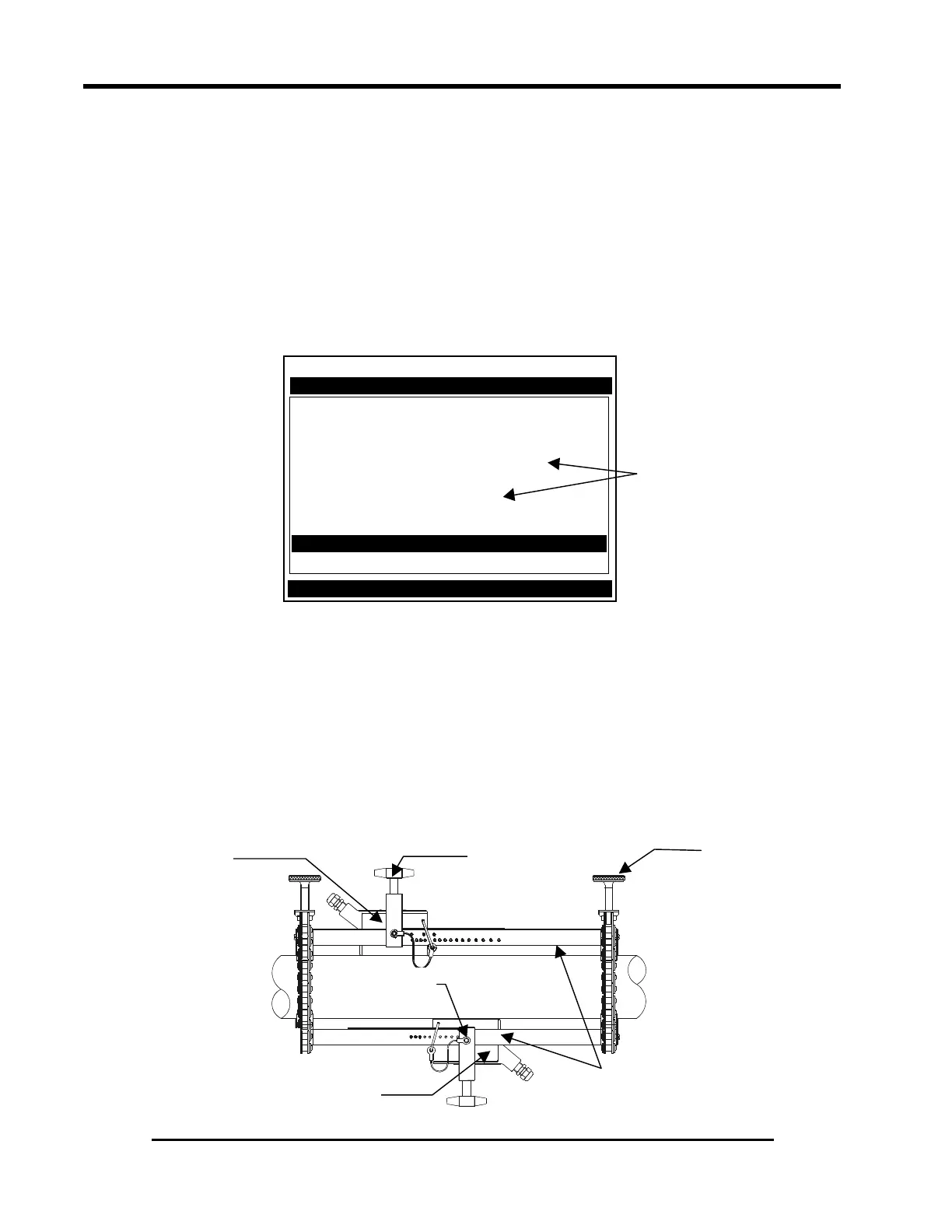

Installing a 1012T Mounting Track in Direct Mode
Paragraph 4.4 describes the Installation procedures that lead up to the automatic selection of transduc-
ers, mounting mode and spacing method. Shown is a Model 1012T mounting track to accommodate
size B3 universal transducers. Examine the figure below which shows a typical Pick/Install Xdcr menu
screen. Note the automatic assignment of model numbers for the transducer and mounting track, plus
the designation of number index.
1. Perform all required menu steps up until the point where the flow computer prompts you to press
<ENT> to finish the transducer install routine. Note the reported number index.
You will be inserting an index pin into this hole and the reference hole. Check to ensure that you have
a matched set of transducers. They both should have the same S/N number but marked with either
an “A” or “B” (e.g., 100A and 100B).
2. The direct mount configuration uses two track rails, one for each transducer, installed 180º apart on
the pipe. One track rail includes the tension screw while the other has a locating stud to support the
chain (see below and on next page).
Install Path 1
Transducer Model 1011G Universal
Transducer Size B3
Xdcr Mount Mode Direct
Spacing Offset Minimum
Number Index 4
Spacing Method Track 1012TP
Ltn Value (in) 0.217
Install Completed? No
Zero Flow Adjust Channel Not Setup
Controlotron Dual Path SITE1
Key [Install] after mounting transducers
Pick/Install Xdcr
Note selection of track
P/N, Mount Mode and
Number Index.
INSTALLATION – DIRECT MOUNT 180º OPPOSED WITH MOUNTING TRACK
Upstream
Transducer
Chain
Tensioning
Screw
Transducer Clamping
Screw
Downstream
Transducer
Number
Index Pin
TOP VIEW
Ç
ÇÇ
Ç
Track Rails
Upstream
Transducer
Transducer Clamping
Screw
Chain Tensioning
Screw
Track Rails
Downstream
Transducer
Number
Index Pin
TOP VIEW
ÏÏ
ÏÏ
Ï
To Next Page
