2-1
1010GCNFM-3C
Section 2
2. FUG1010GCN FLOWMETER INSTALLATION INSTRUCTIONS
This section outlines the basic steps required to initially prepare an FUG1010GCN gas flow display
computer (FDC) for installation. Refer to the interconnection diagram in this section when performing the
following procedures.
2.1 FUG1010GCN FLOWMETER TYPES
FUG1010GCN Single Channel and 1010GDCN Dual Channel System NEMA 4/IP65
The FUG1010GCN series flowmeters are available in Single, Dual and Four Path versions. The
FUG1010GCN flowmeter components are housed under internal metal shields and are compliant with
CE EMI/RFI specifications. The flowmeter has a large MultiGraph display providing digital and analog data
and includes an integral keyboard to access on-screen software setup menus.
2.2 POWER SUPPLY WIRING
WARNING: Turn off main power before installing AC connections to the FUG1010GCN flowme-
ter. Contact with exposed wiring may lead to fire, electric shock, or serious personal
injury.
z Open the FUG1010GCN flowmeter top cover by releasing the cover latch (see installation drawing
1010N-7).
z Unscrew the two power supply access cover fasteners and remove access cover.
z Locate power supply connector J10.
z Wire input power connector P10 for AC or DC power as shown below. Insert wires into wire entry
holes and secure by tightening wire clamp screws.
NOTE: Power Supply connector wires should be stripped stranded or solid conductors AWG 12 -
18.
CAUTION: Use conduit fittings or cable glands at all cable entries, including the input power
wiring entry hole. Install weather tight seals at all unused holes.

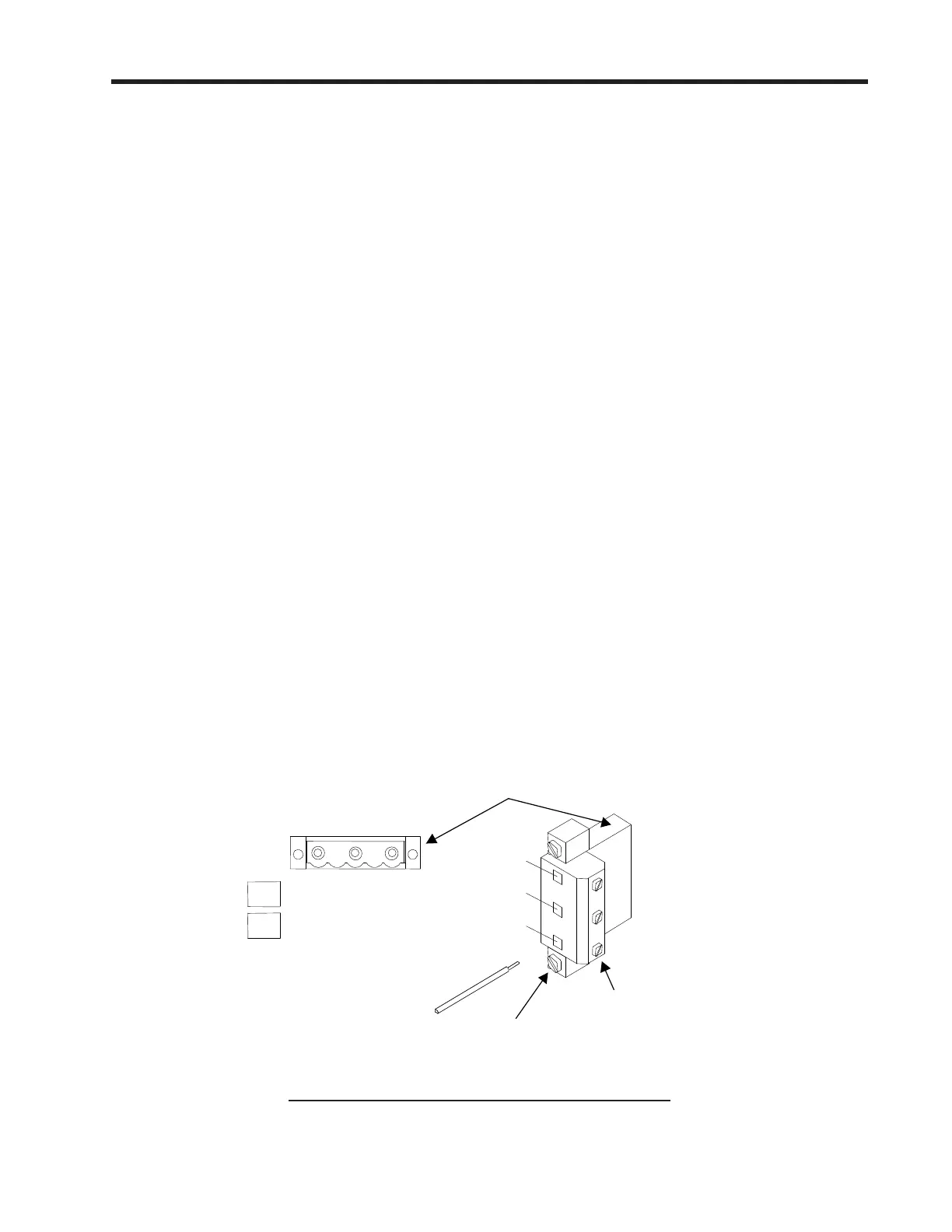

Input Power Connector (P10) Wiring
GND
GND
3
2
1
HOT
+
DC
AC
P10
NEU
-
2
3
1
Connector
Mounting
Screws
Stripped Wire
Wire
Clamp
Screws
To Next Page
