4. Using a cross-head screwdriver, remove 12 screws and washers securing the faceplate.
Set aside.
① Top cover release latch
② Faceplate screws (12)
③ Pry open faceplate here

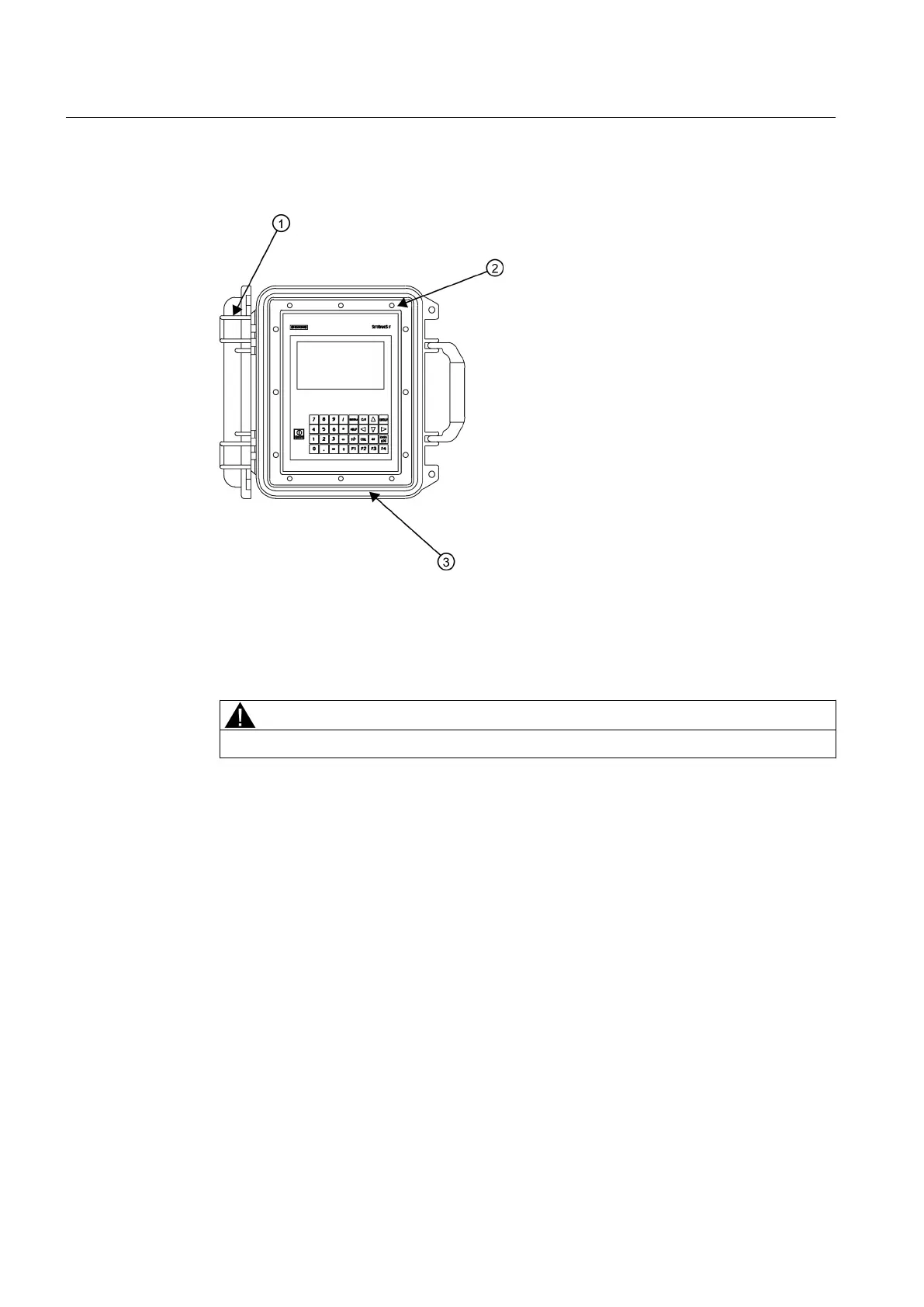

Figure 9-1 Faceplate Removal
CAUTION
When lifting faceplate make sure not to damage wire harnesses.
Maintenance and service
9.2 Replacing the battery
FUP1010 IP67 Portable Flowmeter
112
Operating Instructions, 02/2010, A5E02951522A Revision 01
