① Adjusting Nut ④ E-Z Clamp Chain
② Bit Snap ⑤ Pipe
③ Sensor

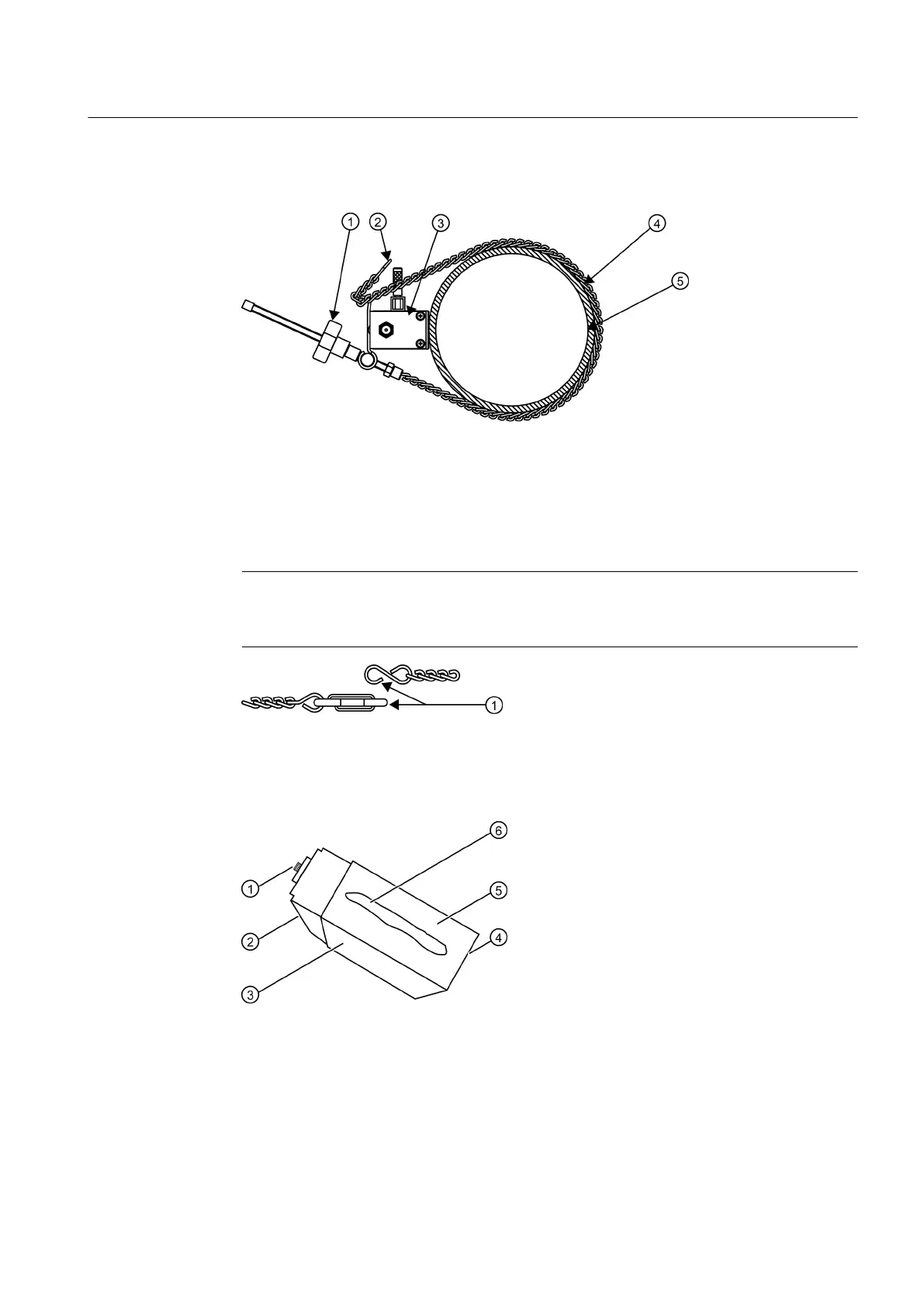

Figure 5-14 EZ Clamping Sensor to Pipe
Note
To surround larger pipes, link multiple lengths of chain together by mating the Bit Snap
and "S" hook.
① Mate Bit Snap and "S" Hook to extend chain
Figure 5-15 E-Z Clamp S-Hook
5.
Take sensor and apply a continuous lengthwise 3 mm (1/8-inch) bead of coupling
compound across the center of the sensor emitting surface.
① Cable Connector ④ Front Edge
② Angled Edge ⑤ Emitting Surface
③ Sensor ⑥ Coupling Compound
Figure 5-16 Sensor
6. Place
sensor at the center
of the pipe in the middle of one of the areas you have cleaned.
Ensure that the cable connector is facing away from where the other sensor will be placed.
Connecting
5.2 Sensor Wiring
FUP1010 IP67 Portable Flowmeter
Operating Instructions, 02/2010, A5E02951522A Revision 01
43
To Next Page
