9. Take sensor and apply a continuous lengthwise 3 mm (1/8-inch) bead of coupling
compound across the center of the sensor emitting surface.

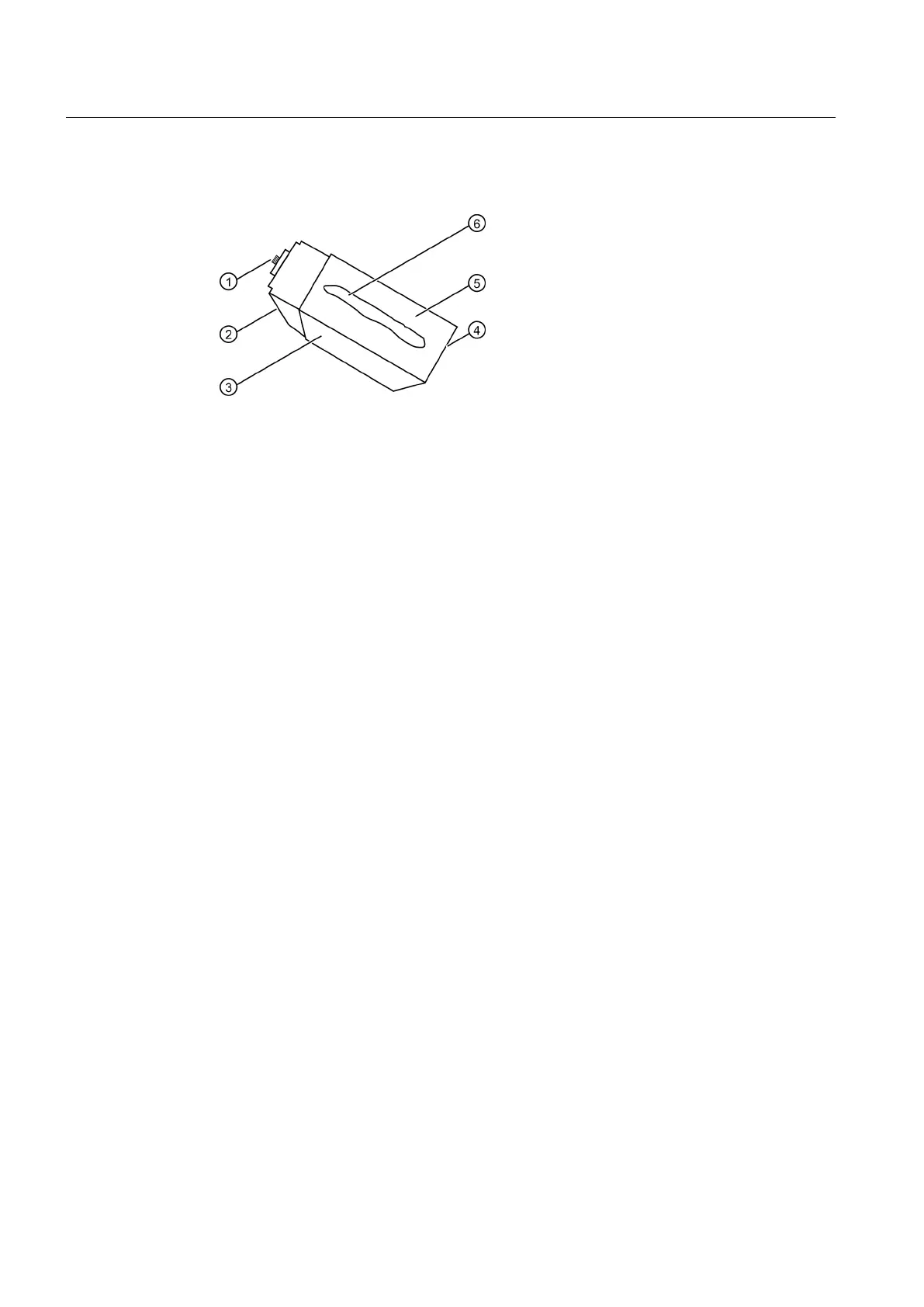

① Cable Connector ④ Front Edge
② Angled Edge ⑤ Emitting Surface
③ Sensor ⑥ Coupling Compound
Figure 5-11 Sensor
10.
Place sensor in the middle of one of the areas you have cleaned. Ensure that the cable
connector is facing away from where the other sensor will be placed.
11.While holding this sensor in-place, bring the chain around the pipe and attach the closest
link onto the hook of the EZ clamp.
12.
Tighten the adjusting nut until the chain is just snug around the pipe. Ensure that the chain
is straight around the pipe and the sensor contacts the pipe at the white dot just under the
front label. Ensure that there is equal space on either side of the dot between the edges of
the sensor and pipe.
13.Repeat Steps 7, 8 and 9 for the second sensor leaving it attached to the spacer bar. At the
same time that you place it in the middle of the second prepared pipe area, secure the
spacing bar to the previously mounted sensor by inserting the sensor index screw through
the REF hole on the bar and into lowest hole on sensor (i.e. for those sensors that have
two holes).
14.Sight along spacer bar to ensure axial alignment to the pipe. Adjust if necessary. Tighten
both chains and ensure that sensors did not move while tightening. Do not over tighten.
Connecting
5.2 Sensor Wiring
FUP1010 IP67 Portable Flowmeter
40
Operating Instructions, 02/2010, A5E02951522A Revision 01
