Functions
7
7.1 Selecting Flow Units
The [Flow/Total Units] menu is available after selecting a meter type and measurement
channel. Use the [Flow/Total Units] menu to select volumetric flow units and an associated
time base for the flow rate and total outputs. After making your selections, a view-only menu
cell shows the resultant scaling. Another menu cell lets you adjust the output resolution by
selecting a display range.
Selecting Flow Volume Units
The [Flow Vol. Units] option list allows you to select the rate units the flowmeter uses to report
volumetric or mass flow. If you select mass units, the flowmeter uses the specific gravity
parameter to convert volumetric flow to mass flow. The default in English Units for liquid is
[Gallons].
To select a Volumetric or Mass unit:
1. Press the <MENU> key and [Meter Type] will be highlighted.
2. Press the <Right Arrow> to [Dual Path Flow] and then press <ENT>.
3. The [Dual Path Flow] menu with appear with [Chan/Path Setup] menu item highlighted.

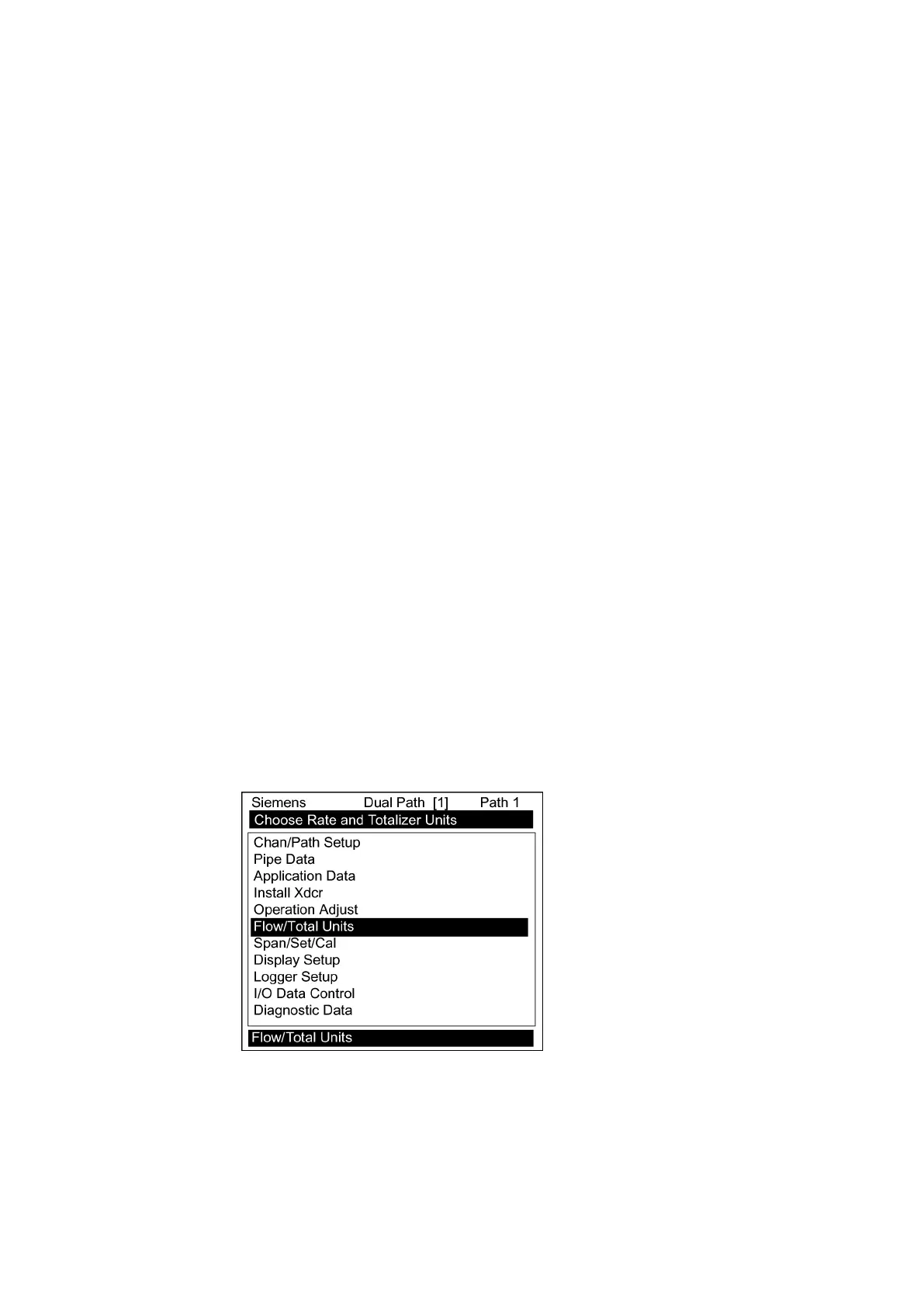

4. Scroll down to the [Flow/Total Units] menu and press the <Right Arrow> to select the [Flow
Vol. Units] menu.
FUP1010 IP67 Portable Flowmeter
Operating Instructions, 02/2010, A5E02951522A Revision 01
73
To Next Page
