Siemens SITRANS FUP1010 - Table 7-2 Totalizer Controls (the N in <Fn> = Channel Number)

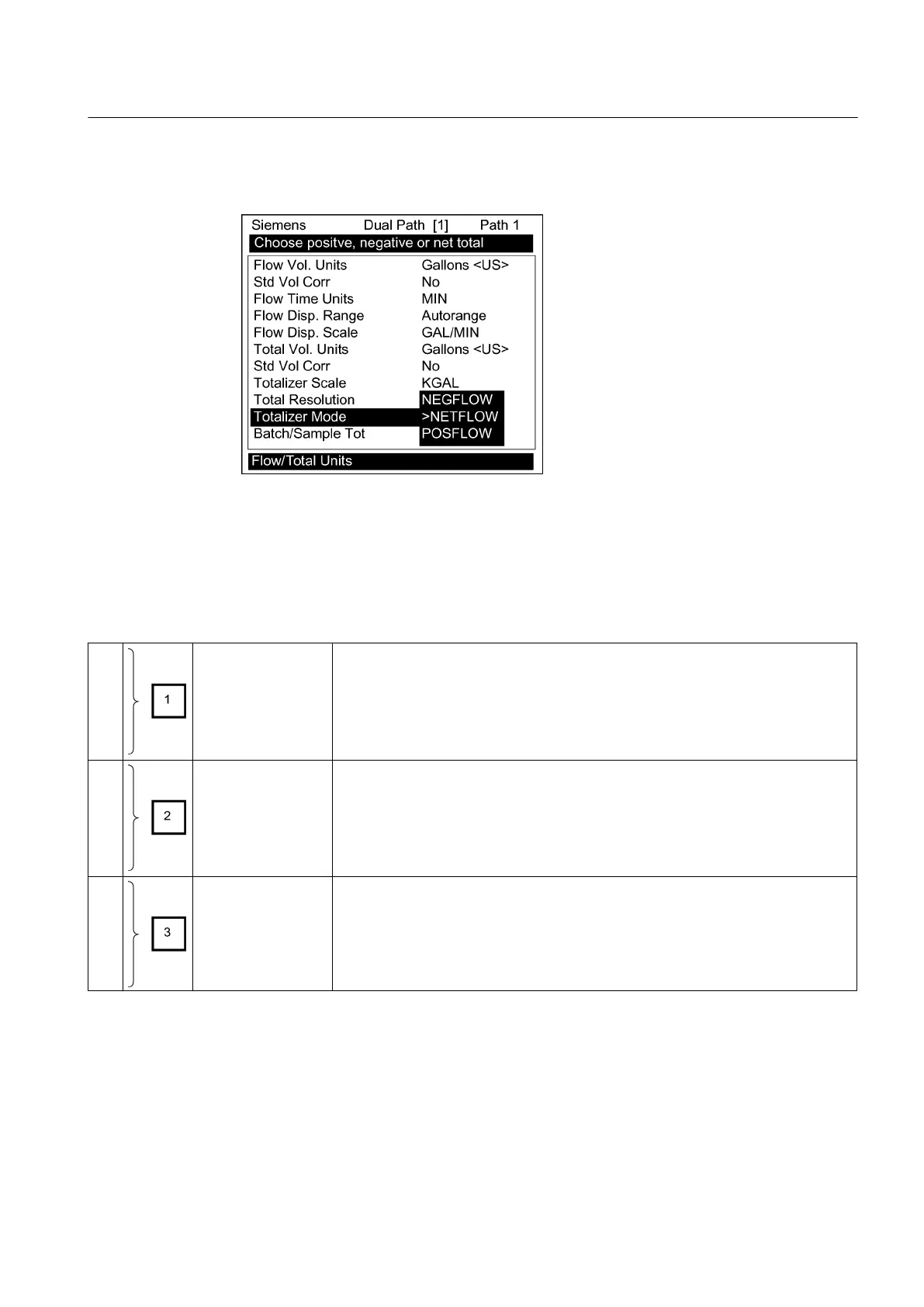

4. Scroll down to the [Totalizer Mode] menu and press the <Right Arrow> to select the Totalizer
Mode option list.
5. Press the <Up/Down Arrows> to select the desired mode.
6. Press <ENT> to store selection.
Totalizer Mode Controls
Table 7-2
Totalizer Controls (the "n" in <Fn> = channel number)*
F1
F2
F3
F4
CLEAR
(also clears
overflow)
Resetting the Totalizer registers clears all total data accumulated during operation.
Note: In Dual
Path mode, the Totalizer operates only on the virtual system channel
(Ch 3). Therefore in this case, the CLEAR trigger would be <F3> <1>.
F1
F2
F3
F4
NOTOT
(Totalizer Freeze)
Invoking the NOTOT command disables the Totalizer. Totalization will not resume
until you repeat the <Fn> <2> key sequence. When you activate NOTOT, an N
precedes the TOTAL symbol (i.e. [NTOTAL]) on the LCD Screen.
F1
F2
F3
F4
LAPTOT
(Totalizer snapshot)
The LAPTOT command freezes the Totalizer screen display. However, the
flowmeter will continue to update its internal registers. The flowmeter will show the
current total when you repeat the <F1>< 3> key sequence. When you activate
LAPTOT, an L precedes the TOTAL symbol (i.e., [LTOTAL]) on the LCD screen.
