15.Observing the upstream
and downstream orientation, attach the UP and DN cables to the
sensors and make snug. Attach the other ends to the UP and DN terminals of the flowmeter
(see figure below).

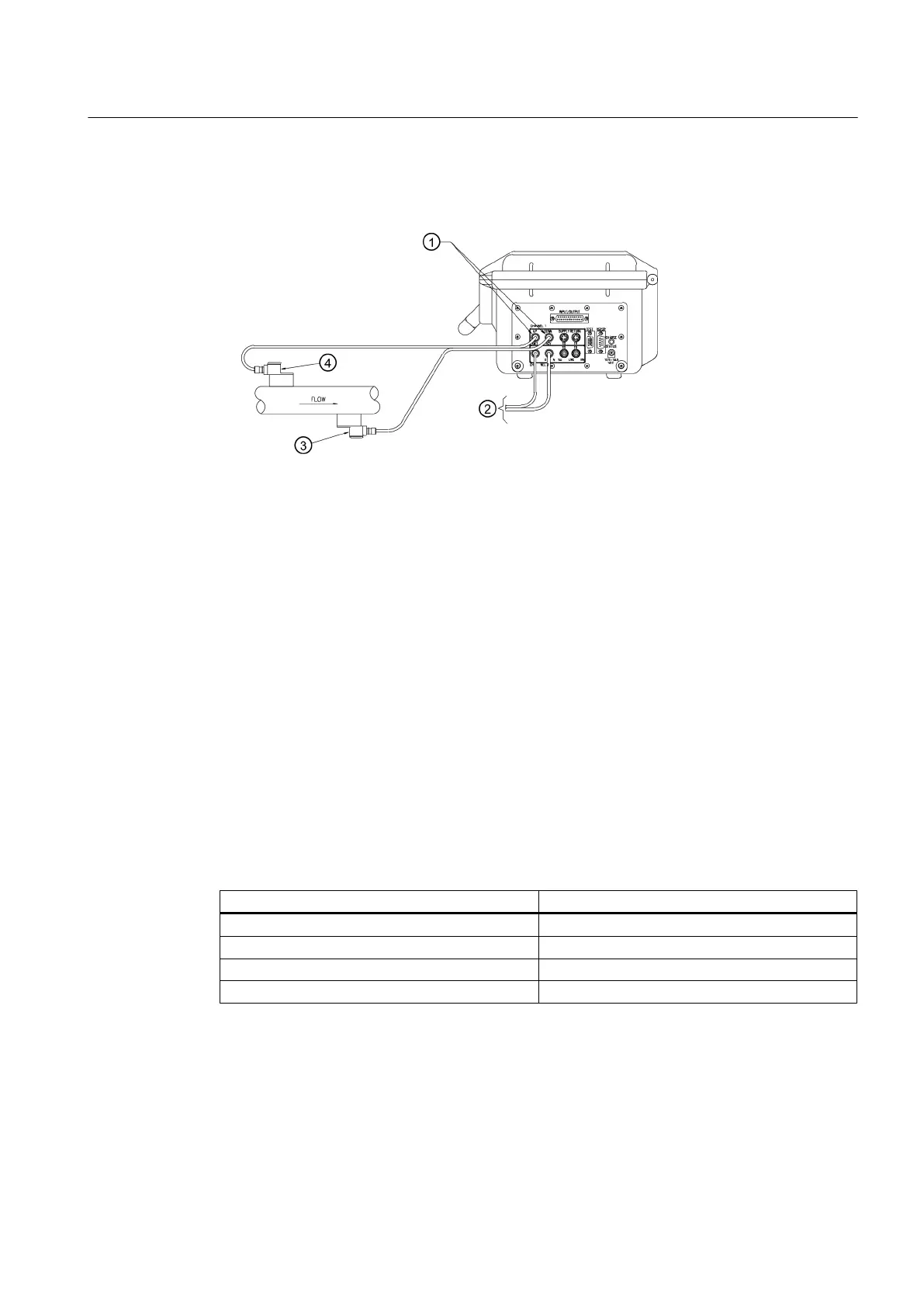

① CH 1 Flow Sensor Cable Connectors ③ Channel 1 - Downstream Sensor
② To Channel 2 Flow Sensor Set ④ Channel 1 - Upstream Sensor
Figure 5-12 Connecting Sensors to Flowmeter
16.Proceed to Commissioning (Page 65
).
5.2.5 Direct Mount
Direct Mount - Installation with EZ Clamp and Spacing Guide
The combination of EZ Clamp and spacer guide is the recommended way to mount Direct
Mode sensors. This method ensures that sensors will align exactly 180° from each other and
remain spaced the proper distance apart.
For Direct Mode mounting, a spacer bar is used to establish the distance between sensors
and a spacing guide is used to locate the sensors at the nine o’clock and three o’clock positions.
Should the distance between sensors be beyond the span of a spacer bar, a measuring tape
can be used. The Mylar spacing guide comes in various lengths and widths to accommodate
most pipe sizes.
Spacing Guide P/N Size
1012-145-1A 2" x 26" (50.8mm x 660.4mm)
1012-145-1 2" x 45" (50.8mm x 1143mm)
1012-145-2 4" x 81" (101.6 mm x 2507.4mm)
1012-145-3 4" x 155 (101.6mm x 3937.0mm)
Connecting
5.2 Sensor Wiring
FUP1010 IP67 Portable Flowmeter
Operating Instructions, 02/2010, A5E02951522A Revision 01
41
