Siemens SITRANS FUP1010 User Manual

① Tension Screw ⑧ Pipe
② To SITRANS F 1010 Flowmeter ⑨ 1011PPS Series Sensor Downstream
③ 1012C Series Cable ⑩ Number Index pin hole
④ Right Angle BNC Adapter ⑪ Flow direction
⑤ Sensor Clamp ⑫ 1012TP Series Mounting Track (D)
⑥ 1011PPS Series Sensor Upstream ⑬ REF Hole Index Pin
⑦ 1012TP Series Mounting Track (R) ⑭ Ultrasonic Couplant

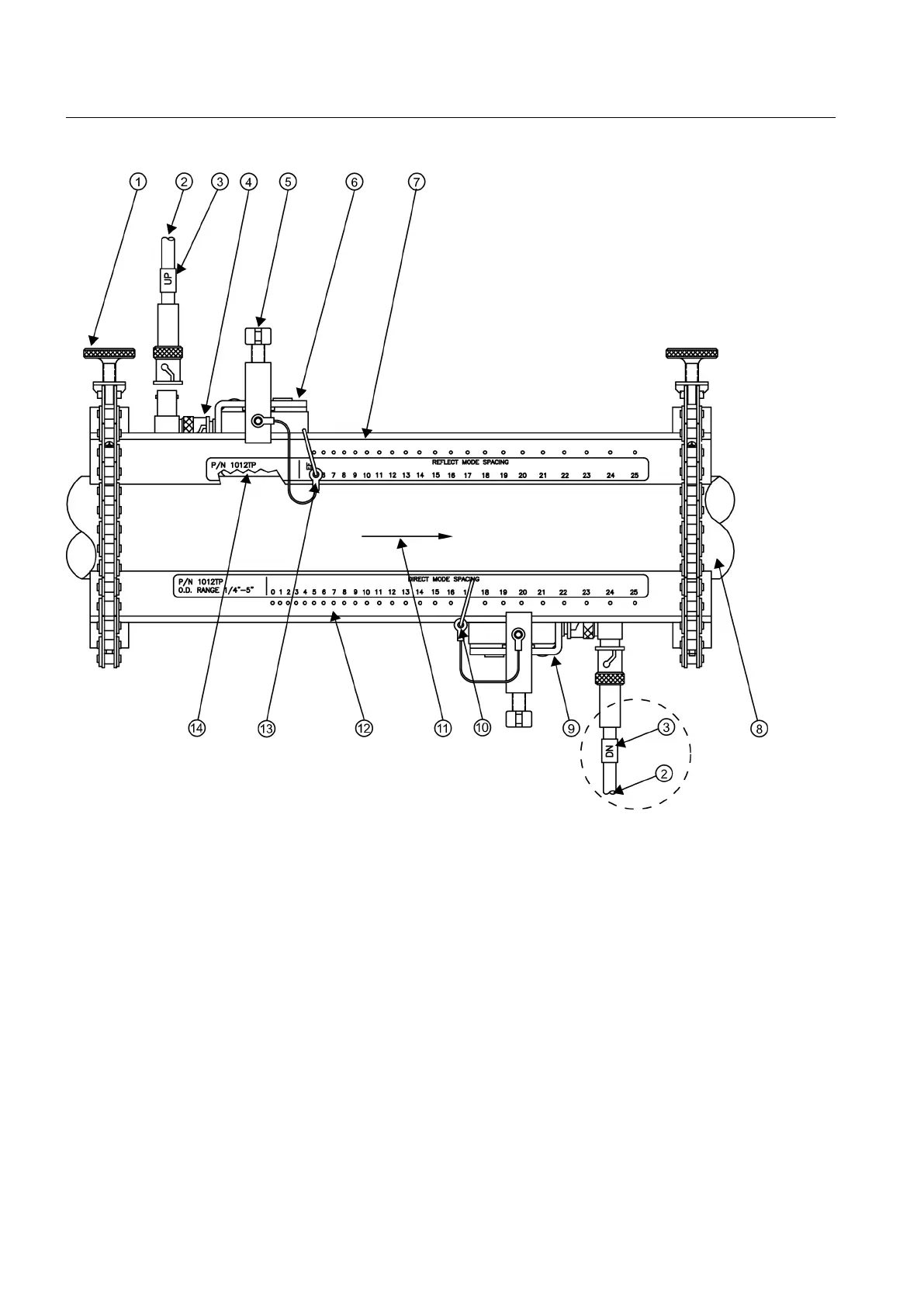

Figure 5-23 Direct Mount 180° opposed with Mounting Tracks
Connecting
5.2 Sensor Wiring
FUP1010 IP67 Portable Flowmeter
54
Operating Instructions, 02/2010, A5E02951522A Revision 01
