8. Remove battery cover from unit.

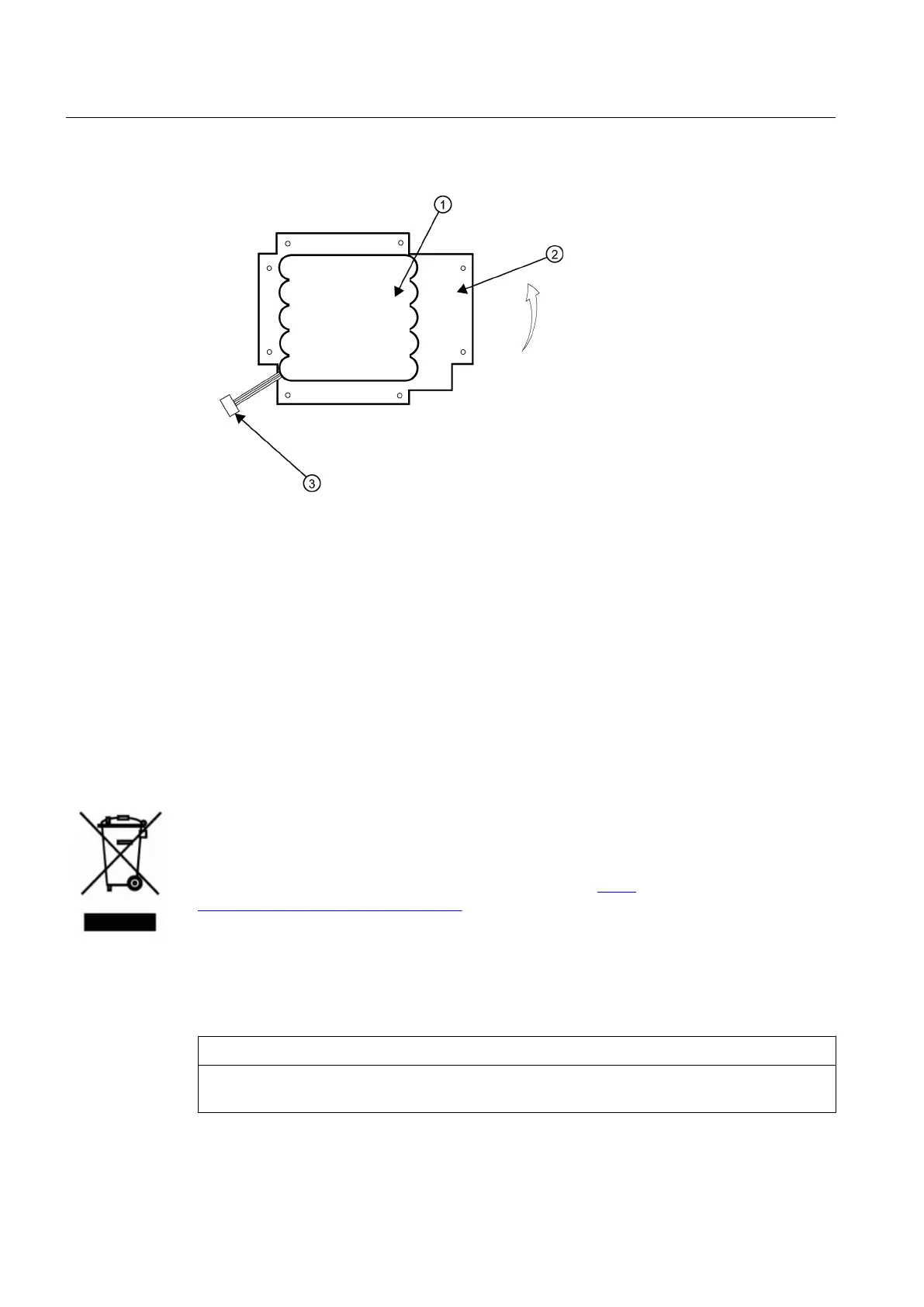

① Battery P/N 1010-107
② Underside of battery cover
③ Power Connector J2
Figure 9-3 Battery Removal/Replacement
9.
Remove battery pack from battery cover.
10.Insert new battery pack into cover making sure the power connector is placed properly in
the cover.
11.
Reconnect battery power connector to P2.
12.Reverse the installation procedure to reassemble.
9.3 Battery Disposal
In accordance with EU directive 2006/66/EC, batteries are not to be disposed of using
municipal waste disposal services.
Waste industrial batteries are accepted back by Siemens or by the local Siemens
representative. Please talk to your local Siemens contact (
http://
www.automation.siemens.com/partner) or follow the return procedures (Page 115) of
Siemens Flow Instruments.
9.4 Technical support
CAUTION
Repair and service must be carried out by approved Siemens Flow Instruments personnel
only.
Maintenance and service
9.4 Technical support
FUP1010 IP67 Portable Flowmeter
114
Operating Instructions, 02/2010, A5E02951522A Revision 01
