Select Pipe Configuration
1. Scroll down to [Pipe Config] and press the <Right Arrow>.
2. Select
a configuration that approximates the conditions upstream of your sensor mounting
location. (Refer to the definitions below.)
3. Press <ENT> to save selection.

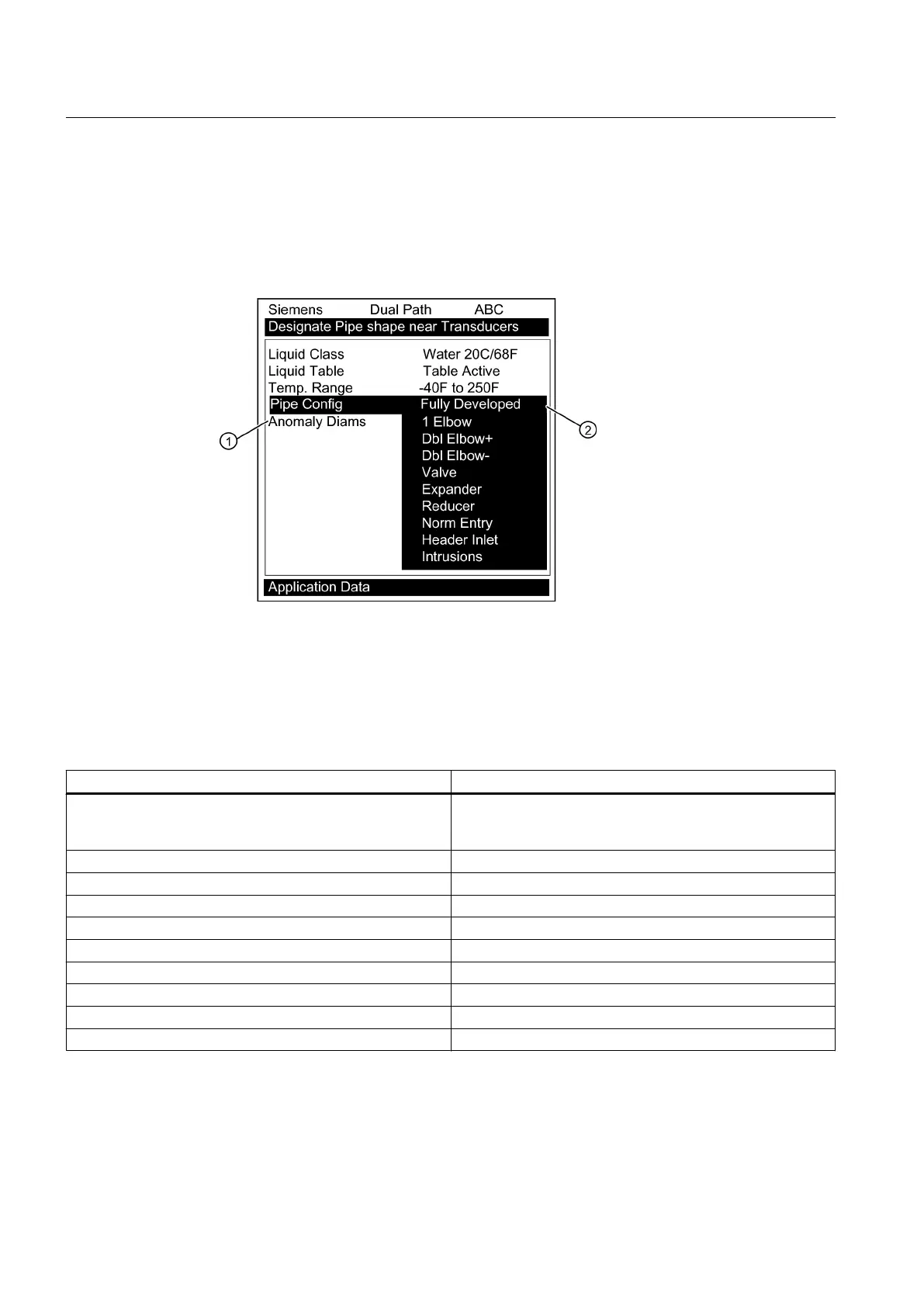

① Use this menu cell to enter the number of pipe diameters between the upstream configuration
and the sensor installation.
② Use this menu cell to select the pipe configuration that most accurately represents the
upstream pipe condition.
4. Press the <Left Arrow> and return to the main menu.
Table 5-1 Pipe Configuration Option List Definitions
Options Definitions
Fully Developed Fully developed flow, as would be expected for very long
straight pipe runs or installation downstream of a flow
condition.
1 Elbow Single 90 degree Elbow upstream of sensor installation.
Dble Elbow+ Double out-of-plane Elbows upstream of sensor installation.
Dble Elbow- Double in-plane Elbows upstream of sensor installation.
Valve Not available at this time.
Expander Pipe expansion upstream of sensor installation.
Reducer Pipe reduction upstream of sensor installation.
Norm Entry Not available at this time.
Header Inlet Header or pipe manifold upstream of sensor installation.
Intrusions Not available at this time.
Connecting
5.2 Sensor Wiring
FUP1010 IP67 Portable Flowmeter
36
Operating Instructions, 02/2010, A5E02951522A Revision 01
