7.3 Logger Control
Logger Control Menu
The Logger Control menu in the [Meter Facilities] menu provides the Logger controls for the
flowmeter measurement channels and paths. It allows the user to select data items/alarm
events, a logging interval and a destination for Logger reports. While the Logger Setup menu
is measurement channel/path specific, this Logger Control menu provides global control
functions. This means that the settings made here apply to all measurement channels/paths,
meter types, operating modes, etc. This is possible because the flowmeter stores logged data
in a single file.
The [Est LogTime Left] menu view-only menu cell shows an estimate of the hours and minutes
of logging time remaining. For convenience sake, the Display Logger command is essentially
a duplicate of the menu cell in Logger Setup. It sends Logger data to the graphic screen with
or without line wrapping. The Output Logger command sends data to an external device via
the RS-232 serial port. The Clear Logger command erases the entire Logger file.

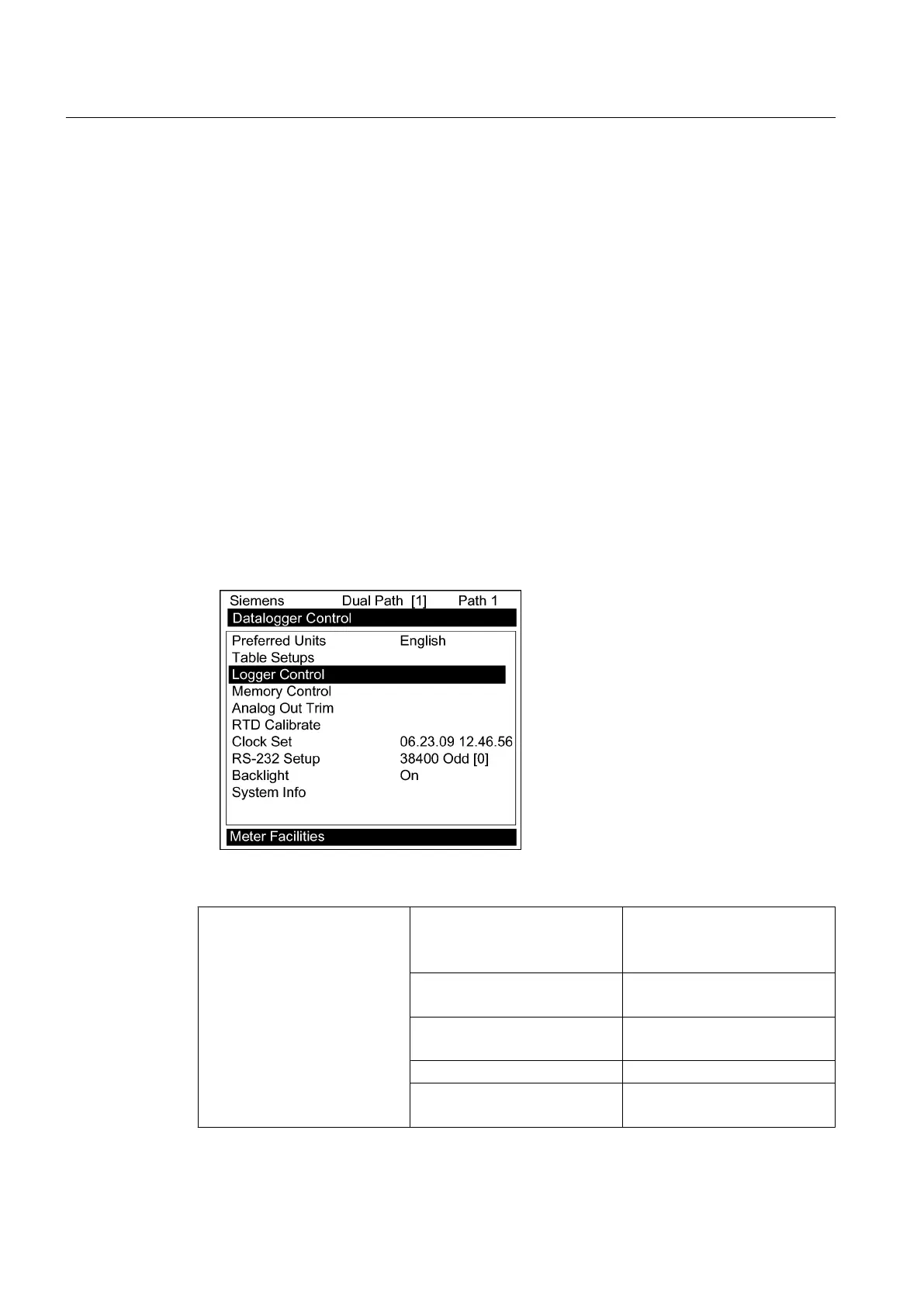

1. From the Meter Facilities menu access the [Logger Control] menu by pressing the <Right
Arrow>.
2. Scroll down to [Logger Control]. Press the <Right Arrow> to access the [Logger Control]
menu option list.
Table 7-3 Logger Control Menu Option List
Logger Control Display Logger Off
Line Wrap
No Line Wrap
Output Logger No
Yes
Circular Memory (Available for
Multi-Path units only)
No
Yes
Est LogTime Left --:--
Clear Logger No
Yes
Functions
7.3 Logger Control
FUP1010 IP67 Portable Flowmeter
78
Operating Instructions, 02/2010, A5E02951522A Revision 01
