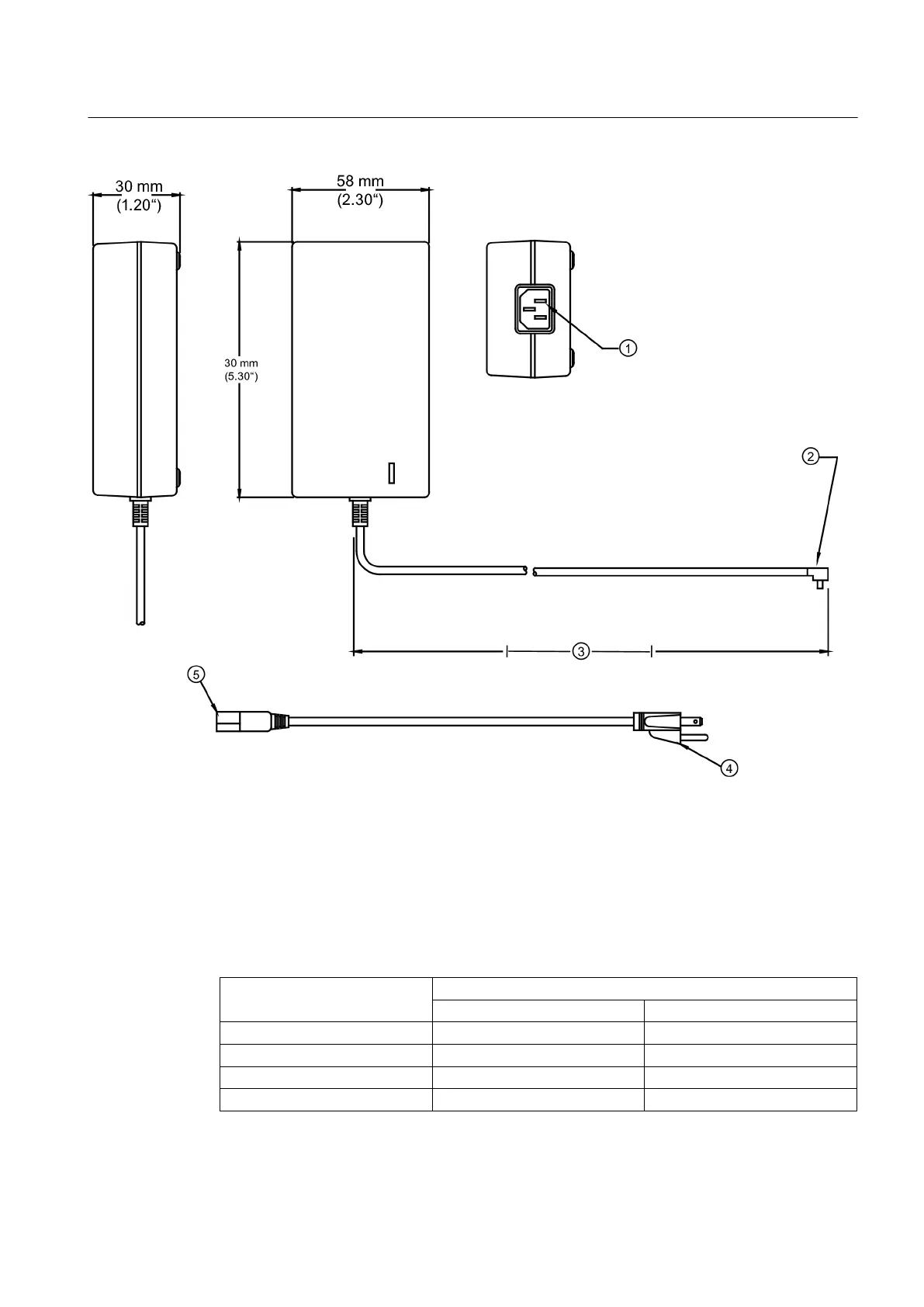

① IEC 320 Power Inlet
②. Connector
③ 0,9 meters minimum (3 ft)
④ NEMA 5 - 15P (see Power Cord table)
⑤ IEC 320 Plug (see Power Cord table)
Figure 4-1 Power Adapter/Battery Charger
Table 4
-1 Power Cord Codes
Assembly P/N POWER CORD
Plug Std
. Rating
1015BCA-1 CEE 7/7 10A / 230VAC
1015BCC-1 A5 3112 10A / 250VAC
1015BCD-1 BS 1363 5A / 240VAC
1015BCJ-1 JIS 8303 12A / 125VAC
Installing/mounting
4.4 Charging the Battery
FUP1010 IP67 Portable Flowmeter
Operating Instructions, 02/2010, A5E02951522A Revision 01
