Level A Level B Level C
Recall Site Setup Pump 1
Pump 2
Channel Enable
Create/name Site
Site Security
Delete Site Setup
Save/Rename Site

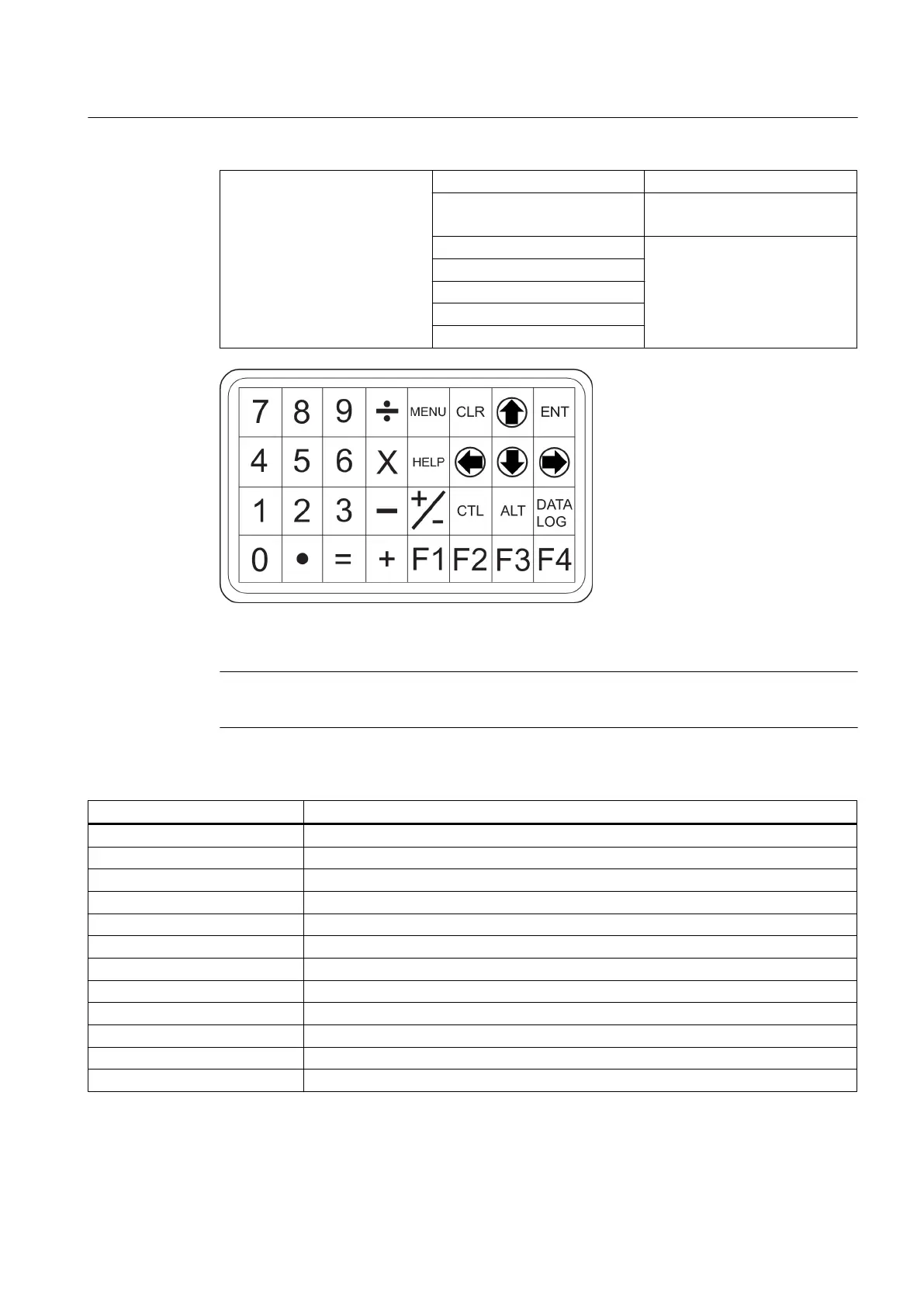

Figure 6-1 Key Pad
Note
Use <Left Arrow> key to return to previous menus.
Table 6-1 Key Pad Function Chart
Keys Description
MENU Press to activate the Installation Menu.
ENT Store numeric data, select from option lists, etc.
Left / Right Arrows Menu navigation keys move cursor.
Up / Down Arrows Same as <Left> and <Right> arrows. Scrolls option lists and graphic display screen.
CLR Erases data or selects list options.
Numbers 0 - 9 Use to type numeric data.
Decimal Point Use for decimal points in numeric data.
Math Operators 4-function math operations in numeric entry cells.
"F" Keys 1, 2, and 3 Caution: System Reset Key (use during power up).
CTL and ALT Used as shift keys for alternative key functions.
DATALOG Triggers immediate Datalogger report.
Plus and Minus [+ / -] Changes the sign of numeric data.
Commissioning
6.3 Navigating the Menu
FUP1010 IP67 Portable Flowmeter
Operating Instructions, 02/2010, A5E02951522A Revision 01
67
