Siemens SITRANS FUP1010 User Manual

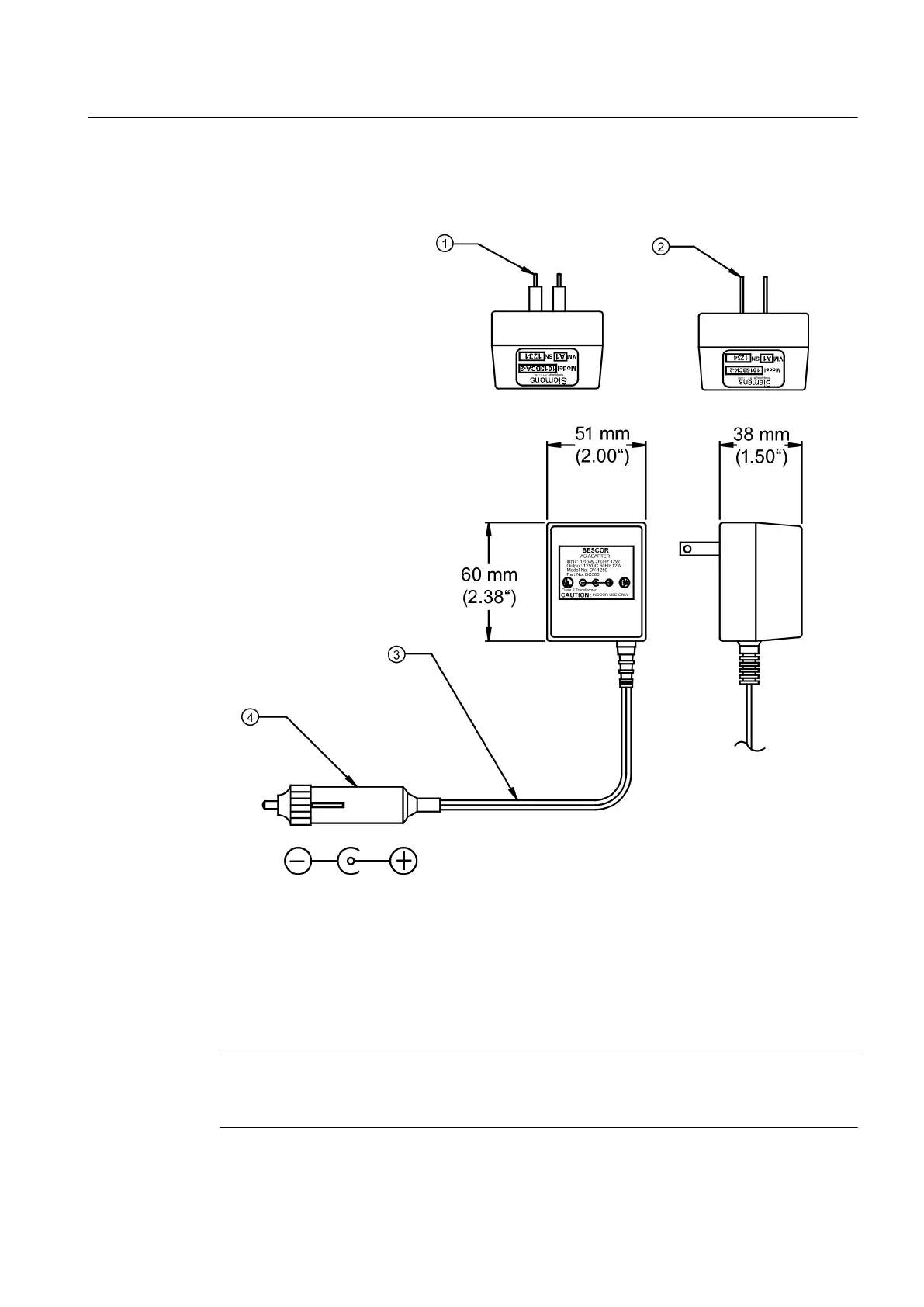

① Plug Type CEE 7/16 (EUR)
② Plug Type NEMA 1-15P (USA)
③ Cord 1829 mm (6 ft)
④ Male "Cigarette" Connector
Figure 5-2 1015BCK-2 and 1015BCA-2 Battery Chargers
Note
A [LOBAT] flag appears on the flowmeter graphic screen when the remaining battery
operating time is less than 20 minutes.
Connecting
5.1 Transmitter Wiring
FUP1010 IP67 Portable Flowmeter
Operating Instructions, 02/2010, A5E02951522A Revision 01
27
