Status Indication Action
Battery Warning Beeper Normal operation, periodic audible alarm Connect a Battery Charger for
continued operation.
Battery Discharge Unit will not turn on (no display screen) Connect to Battery Charger for at least
1.5 hours before attempting to operate.
5.1.2 Connecting AC Power
Using the 1015BCK-1 (7ME39404PG00) Power Adapter/Charger
1. Connect the AC power cord to the AC cord input of the Power Adapter/Charger.
2. Plug the Power Adapter/Charger connector into the rear panel Auxiliary Power/Battery
Charger input connector.
3.
Plug the Power Adapter/Charger AC plug into an AC power outlet.

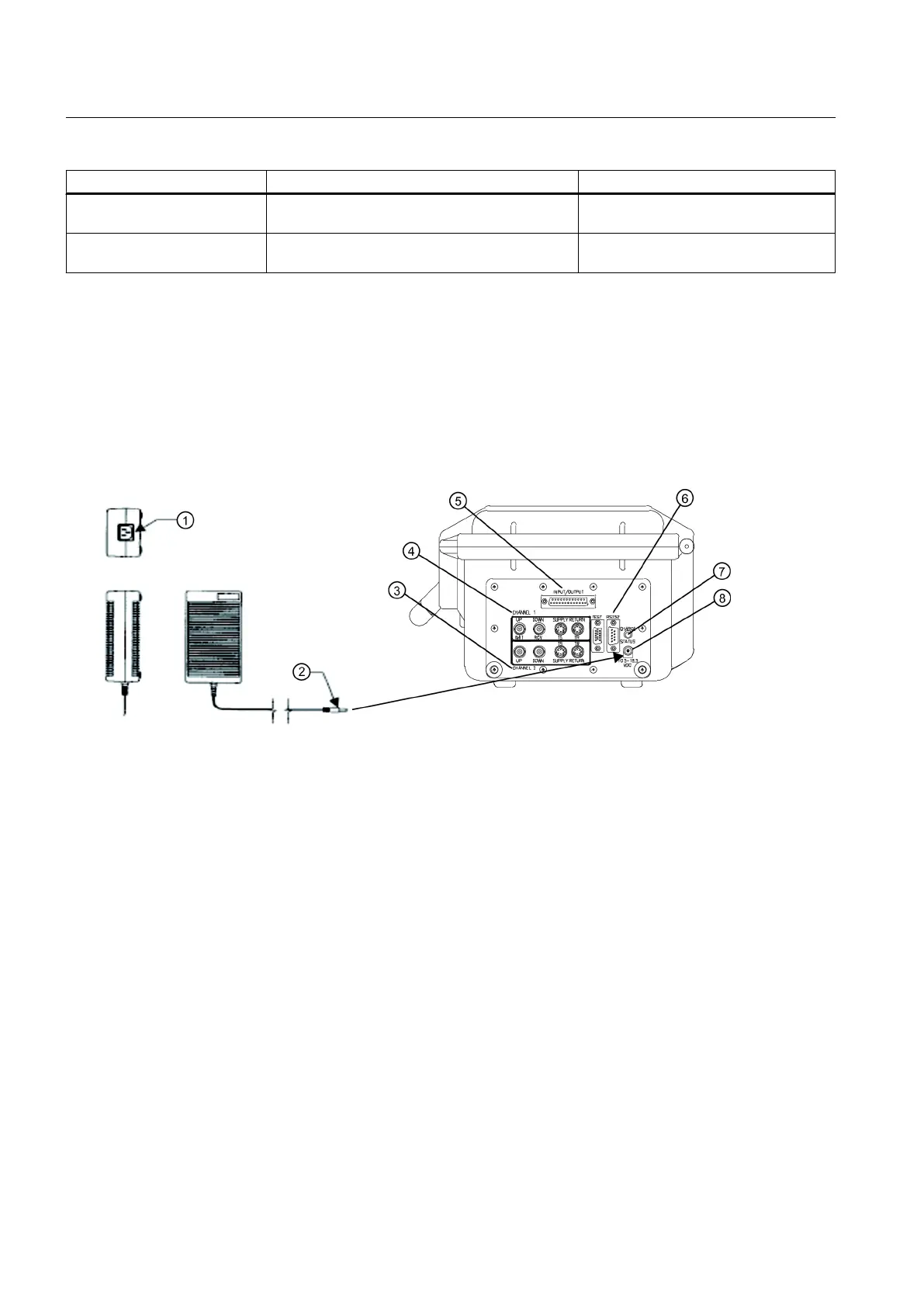

① AC Cord Input ⑤ Input/Output Connector
② Connect to Rear Panel Power Input Connector ⑥ RS-232 Port
③ Flow Sensor Channel 2 ⑦ Battery Status Indicator
④ Flow Sensor Channel 1 ⑧ Auxiliary Power/Battery Charger Input
Figure 5-3 Power Adapter/AC-Charger for Dual Channel Flowmeter
5.2 Sensor Wiring
5.2.1 Preliminary Installation Procedures
Reflect and Direct Sensor Mounting
Reflect and Direct mounting modes are supported for clamp-on sensors. The Flowmeter
recommends a mounting mode after analyzing your pipe and liquid data entries.
Connecting
5.2 Sensor Wiring
FUP1010 IP67 Portable Flowmeter
28
Operating Instructions, 02/2010, A5E02951522A Revision 01
