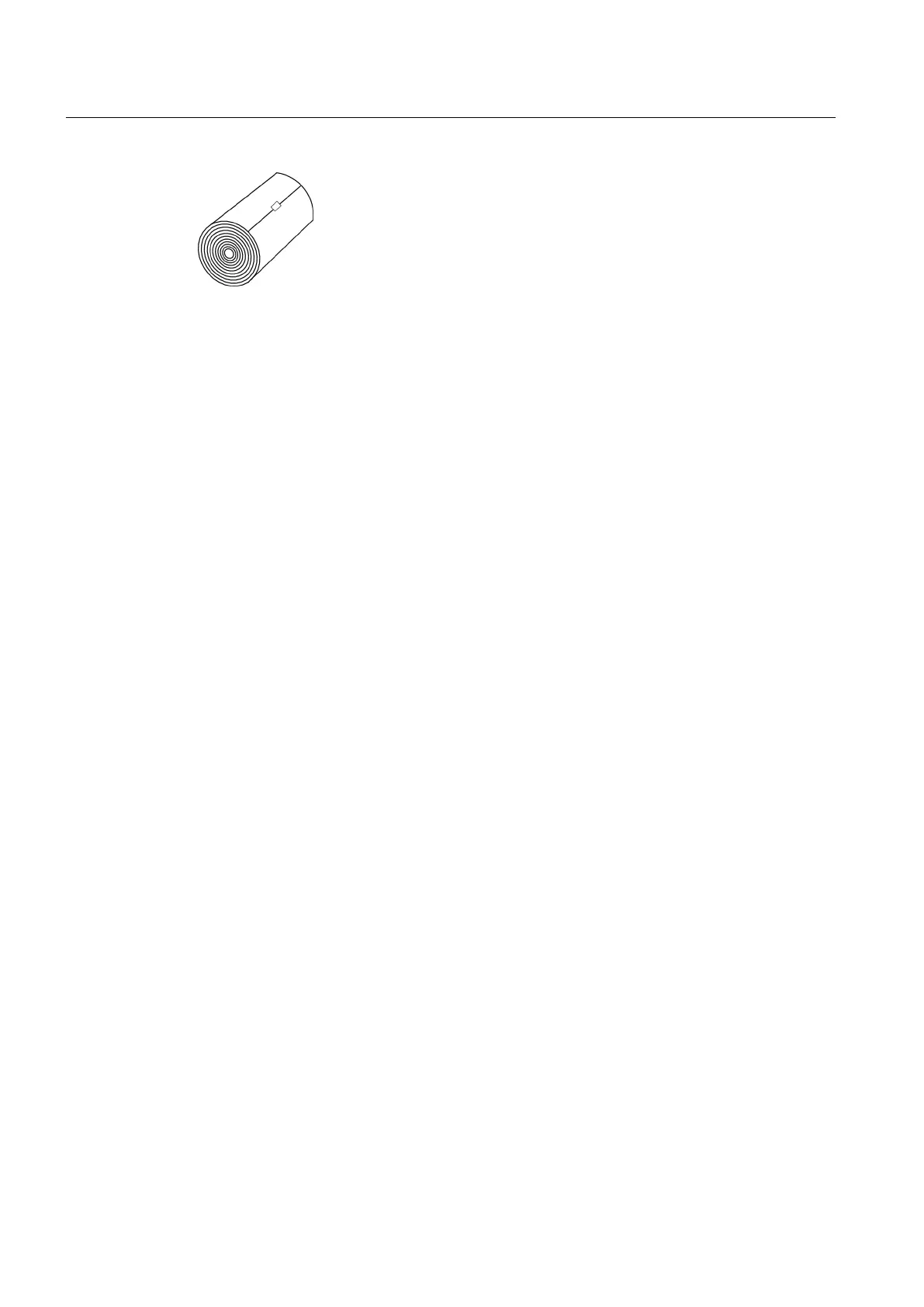

Figure 5-13 Mylar Spacing Guide
Installation Procedure
1. Make a note of the Number Index displayed in the [Install Xdcr] menu. Check to ensure
that you have a matched set of sensors. They both should have the same S/N number but
marked with either an "A" or "B" (e.g., 100A and 100B).
2. Temporarily position one of the sensors on the pipe where you will be mounting it. Ensure
that this is a smooth area without any raised areas (seams, etc.) With a pencil or chalk,
mark a generous area around all sides of the sensor. Remove the sensor.
3. Prepare the area you marked by degreasing the surface and removing any grit, corrosion,
rust, loose paint or surface irregularities with the abrasive pipe conditioning material
provided.
Connecting
5.2 Sensor Wiring
FUP1010 IP67 Portable Flowmeter
42
Operating Instructions, 02/2010, A5E02951522A Revision 01
4. Attach the EZ Clamp to the sensor under the spring clip. The adjusting nut knob should be
pointing up and on the side opposite of the spacer bar. Unscrew the knob until it’s at the
stop.
