Load/save Modbus slave templates
allows the user to load/save the configuration of the
Modbus SLAVE protocol with a defined block of registers, e.g.: register type (Holding/Input),
write mode of register, data format (16 bits or 32 bits). For configuration of Modbus SLAVE
see
Chapter 7.15.2. Modbus - SLAVE mode
,
The process of exchanging configuration files or Modbus templates between the MultiCon and
flash drive starts when you plug the flash drive to the unit. Then enter
MENU -> File
management -> Configuration Files
. If you want to
Load configuration/template
the
window panel will show a view of the contents of the flash drive with the available files:
– for
configuration file
with extension
.cfg
,
– for
Modbus template file
with extension
.mcfg
,
– for
Modbus slave template file
with extension
.scfg
,
Please note that the file name is defined by the user. If the user wants to
Save
configuration/Modbus template
, press the
Save configuration
,
Save Modbus template
or
Save Modbus slave template
button. A window appears with the available files that can be
overwritten or a new file can be created by pressing button with keys symbol in the upper left
corner (see
Fig. 7.21
). After confirming the write process the data is stored on the flash drive.
An example of configuration files in
Fig. 7.21
.

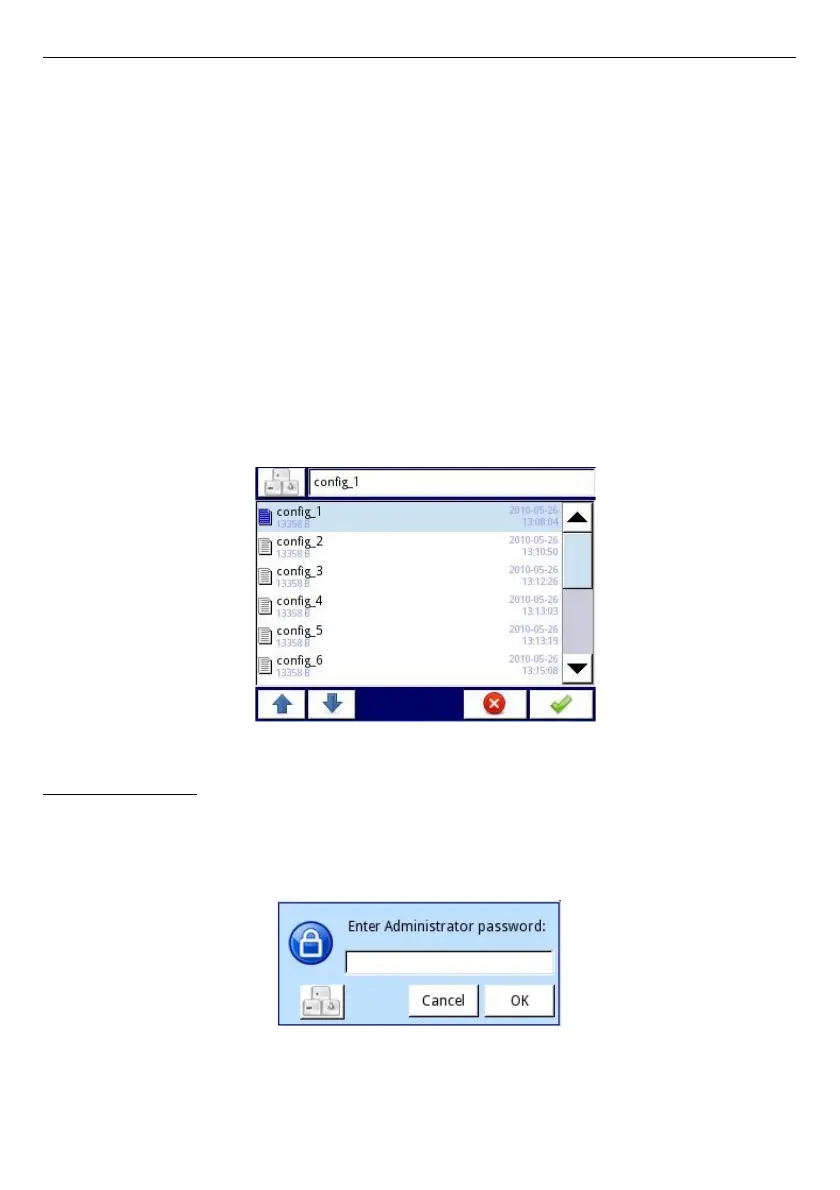

Fig. 7.21. Example of logging and configuration files
Permissions files:
Third button in the
Files management
menu is
Permission files
. This menu is related
with
MultiLevel Access
mode (see
Chapter 7.17.
). Access to that menu has only user
logged as Administrator. If no user is logged, the administrator's password must be passed to
open that menu (see
Fig. 7.22
).
Fig. 7.22. Enter password dialogue
51
