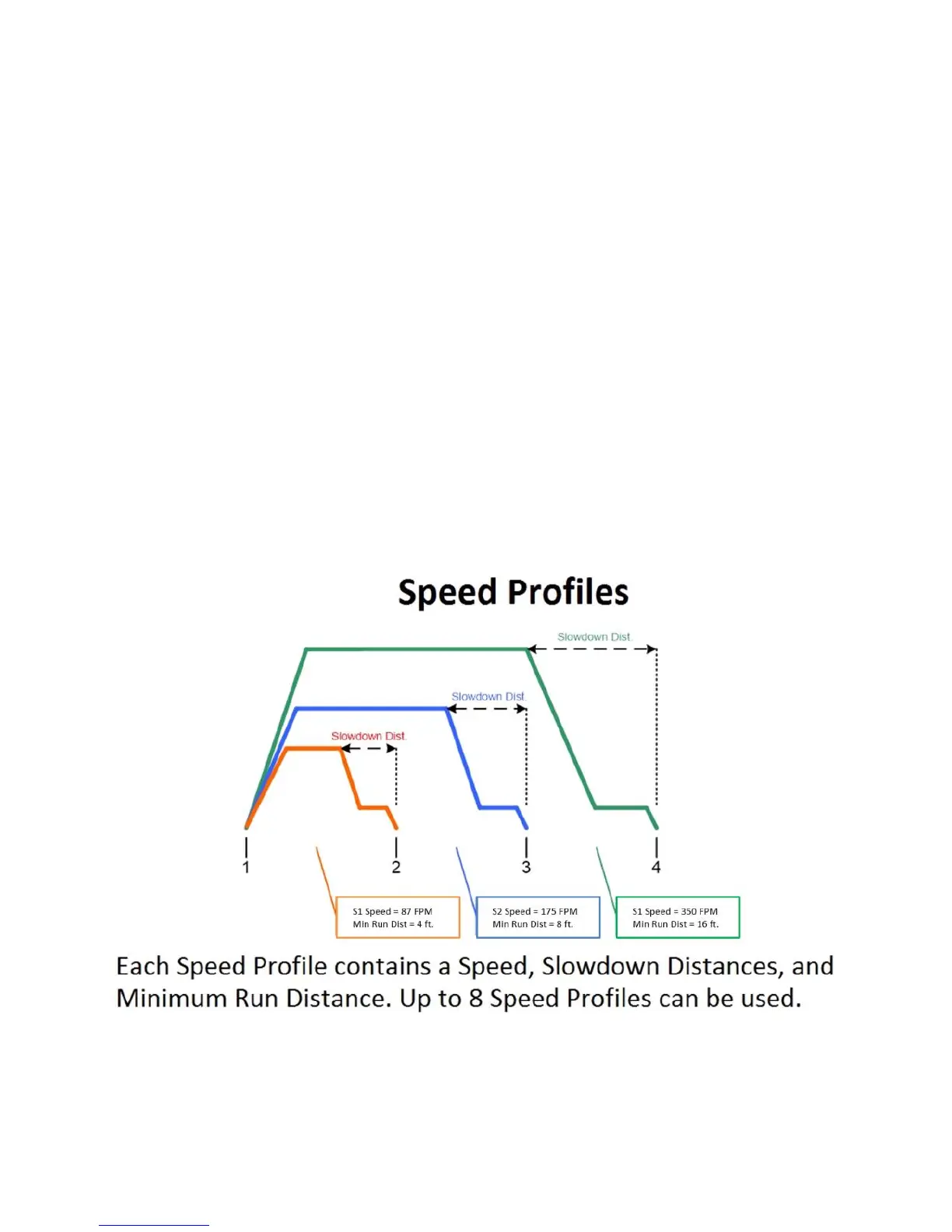

The operation of each speed profile must be defined so the speeds
conform to this logic: S8 > S7 > S6 > S5 > S4 > S3 > S2 > S1. A setting
of zero at any “S” speed profile disables that speed setting.
Example: The contract speed of a car is 350FPM. The following
parameters could be defaulted as:
Contract = 350 FPM
Inspection = 50 FPM
Leveling = 10 FPM
S1 (S1 Speed) = 87 FPM (1 – Floor Run)
S2 (S2 Speed) = 175 FPM (2 – Floor Run)
S3 (S3 Speed) = 350 FPM (3 or more – Floor Run)
S4 thru S8 = 0 FPM (Disabled)
In this example, the controller will command any one of the 3
programmed target speeds based on the MINIMUM RUN DISTANCE.
