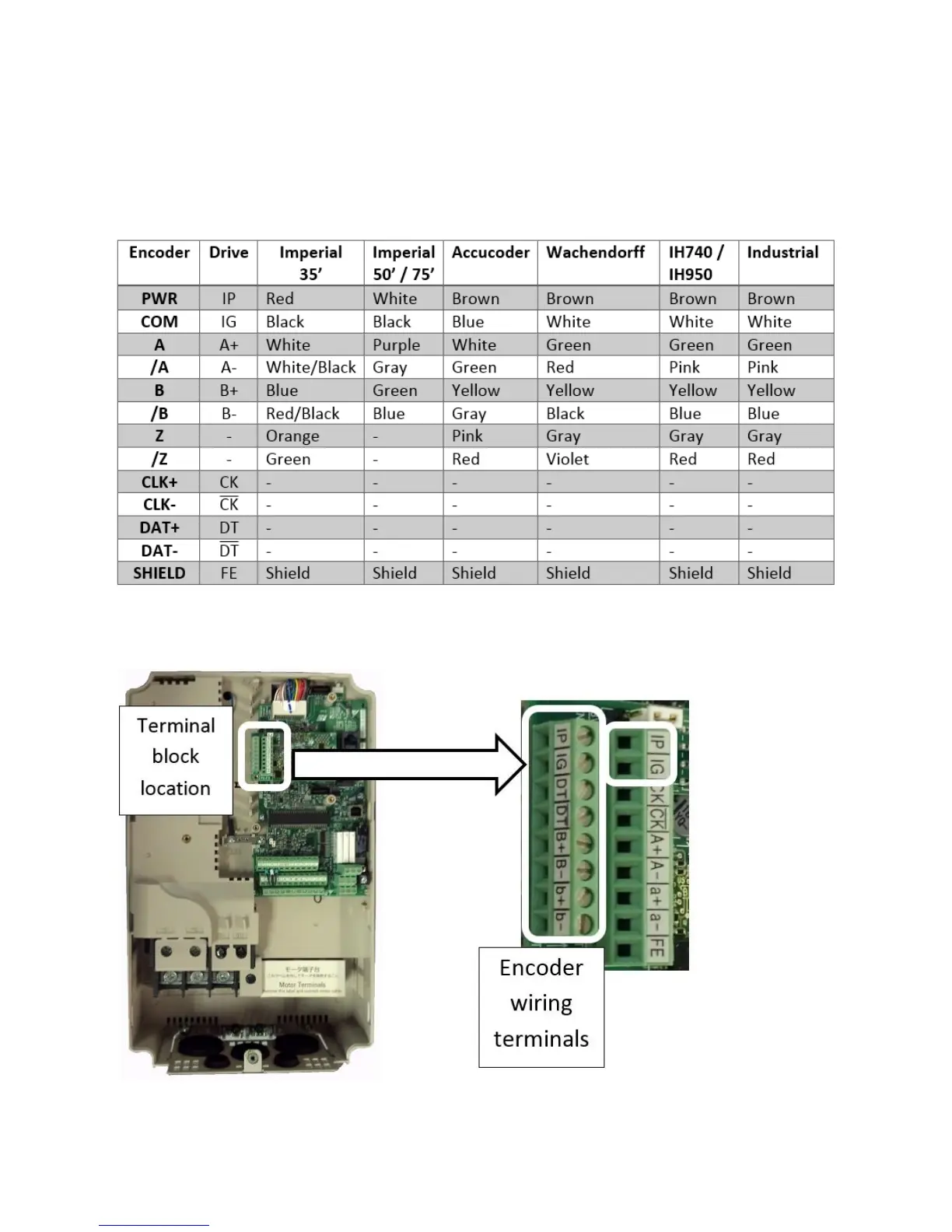

Encoder Terminal Locations – L1000A – (Inductions Only)

Connect the encoder cable to the encoder terminal block located

under the drives cover. The following table contains wiring

references for common encoders.
