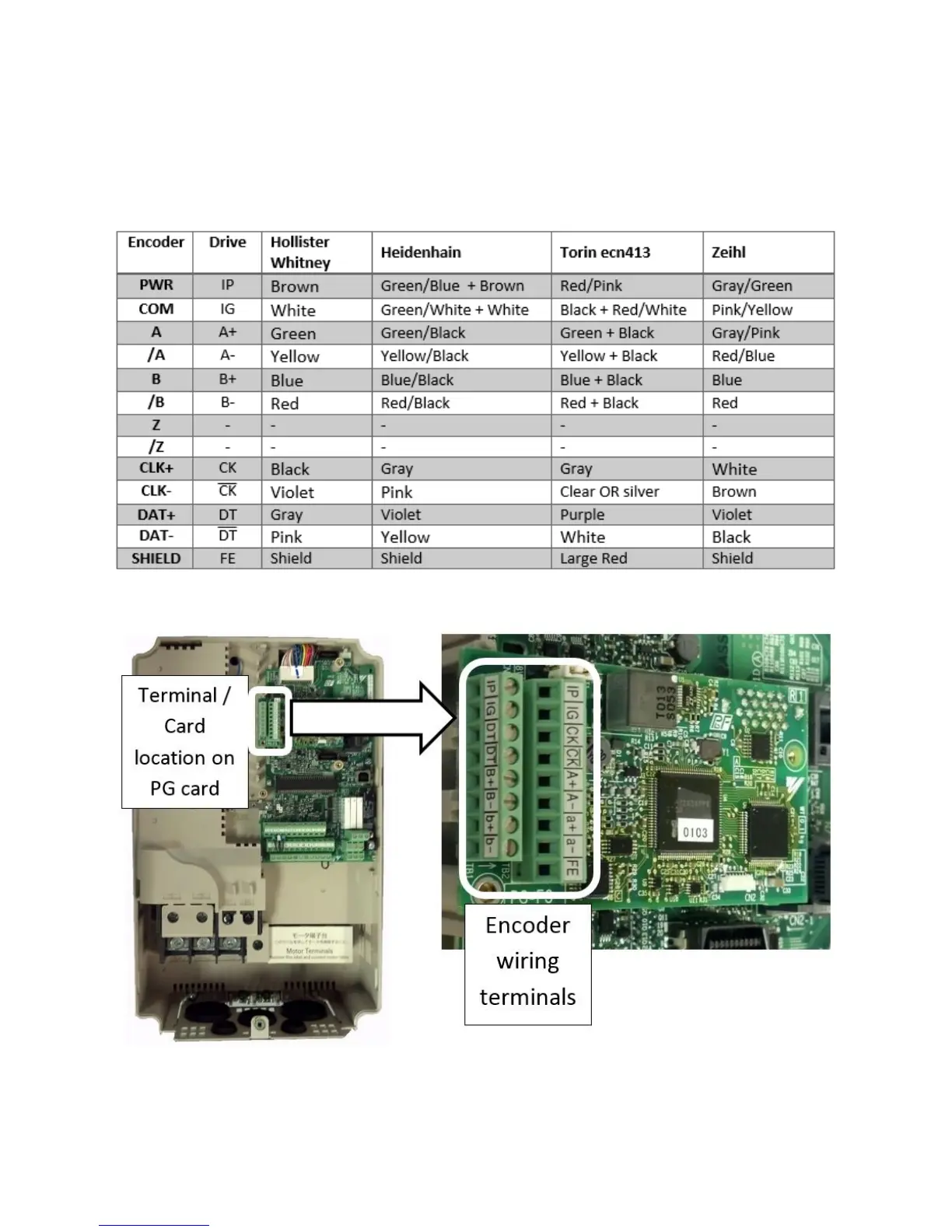

Encoder Terminal Locations – L1000A – (PMs Only)

Connect the encoder cable to the PG Card located under the top

cover. The following table contains wiring references for common

encoders.
