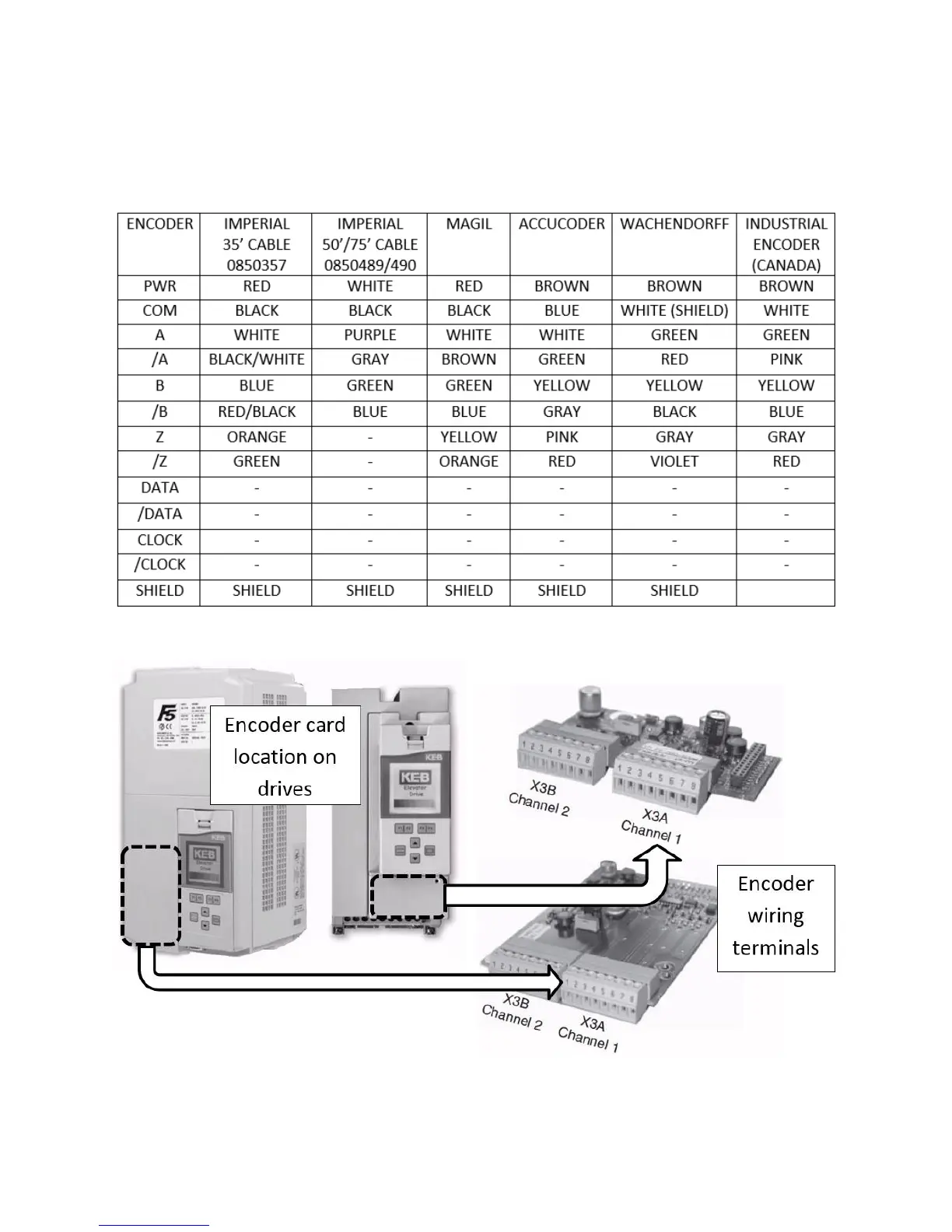

Encoder Terminal Locations – KEB – (Inductions Only)

Connect the encoder cable wiring to the X3A terminal block on the

encoder card mounted on the drive. The following table contains

wiring references for common encoders.
