47
Equipment/Settings verification

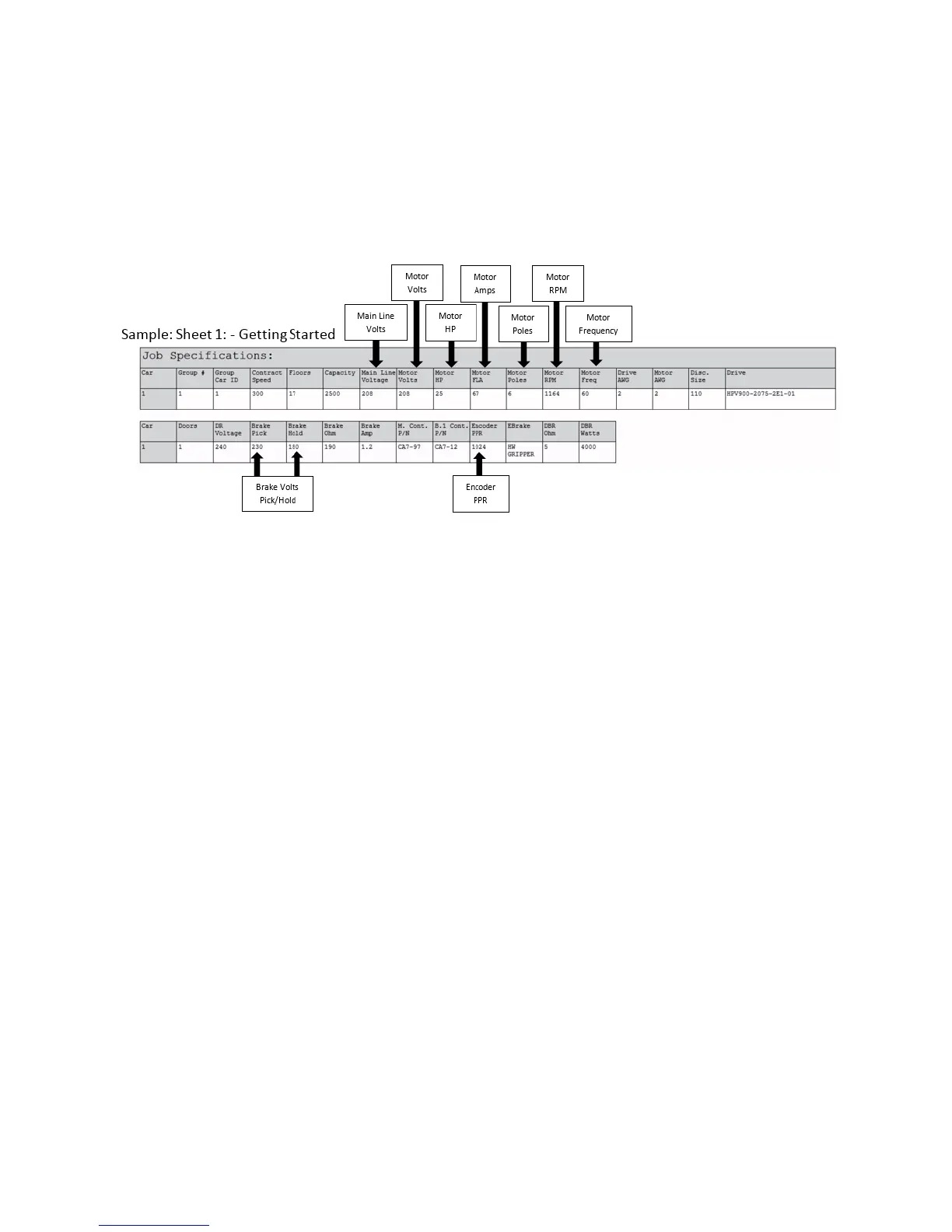

Verify that the Job Specification parameter table on the drawings
“Sheet 1: Getting Started” matches the actual equipment.
Below is a sample table showing the important values that will
affect operation.
Magnetek Parameter location Reference
ADJUST A0
DRIVE A1
Encoder Pulses (Encoder PPR – 1024/2048)
POWER CONVERT – A4
Input L-L Volts
MOTOR – A5
Rated Mtr Power (Kw)
Rated Mtr Volts (VAC)
Rated Exit Freq (60Hz)
Rated Motor Curr (FLA – Amps)
Motor Poles
Rated Mtr Speed (RPM)
CONFIGURE C0
USER SWITCHES – C1
Motor Rotation
- Forward/Reverse
Encoder Connect
- Forward/Reverse
