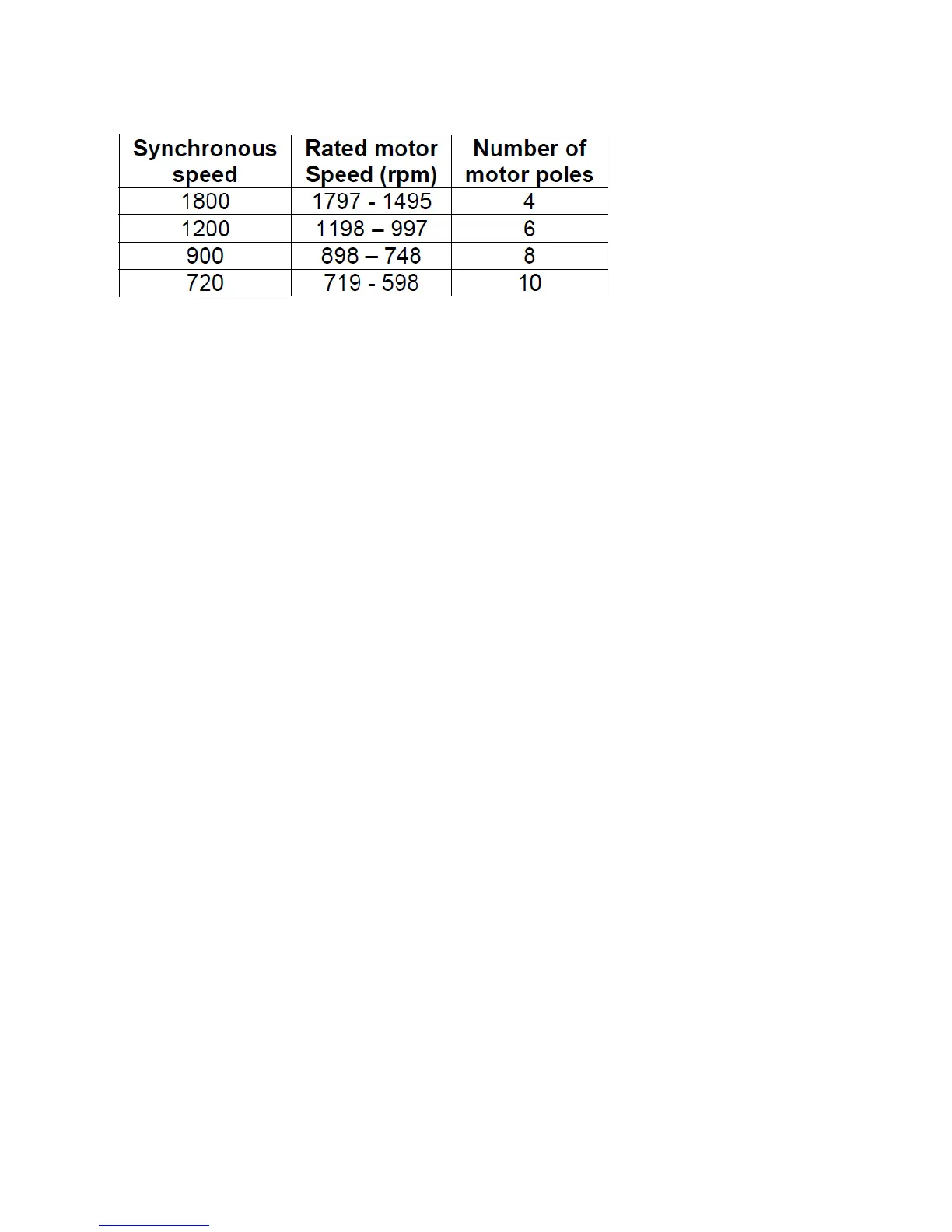

RPM - MOTOR POLE TABLE
INPUTTING MOTOR DATA - SAMPLE
1) If the data in the drive doesn’t match the existing equipment, use
the following procedure to correct the values:
a) Press UP arrow key to access the motor output power
parameter T1-02.
b) Press ENTER key to view the default setting.
c) Press F1 (left), F2 (right), RESET, UP and DOWN arrow keys to
enter the motor power nameplate data in kW – (kW) = (Motor
HP) x (.74)
i) Example: 12 HP x .74 = 8.88 kW (in this example T1-
02 would be 8.88)
d) Press ENTER key to save the setting
e) The display automatically returns to the display in Step 2.
