Special Note when Adjusting Voltages:
The voltages between the PICK and HOLD levels are interconnected.
Adjusting one will affect the other.
Adjust the PICK voltage to its maximum. If more voltage is required,
lower the HOLD voltage down a little bit and readjust the PICK voltage.

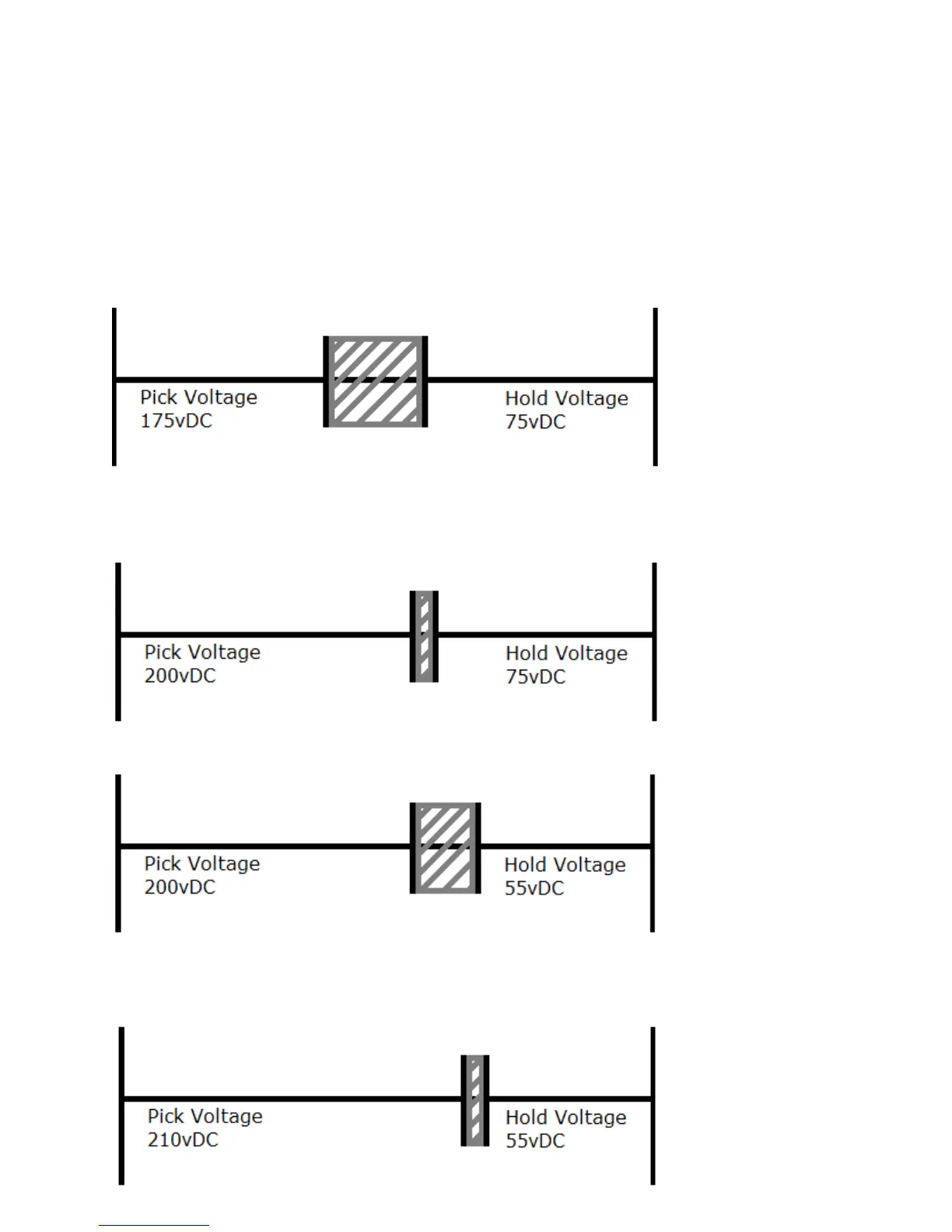

Example:
1. The PICK voltage is 175vDC and the HOLD voltage is 75vDC.
2. The PICK voltage is raised to 200vDC max while the HOLD voltage is still
75vDC.
3. The HOLD voltage is adjusted down to 55vDC.
4. The PICK voltage has more room for adjustment and can be raised to
210vDC.
