Scope Multimeter Optional Settings
121
Trace Full Scale - changes the dropdown vertical scale menu selections to full scale
mode, which represents the selected unit of measurement over the entire (full)
scale.

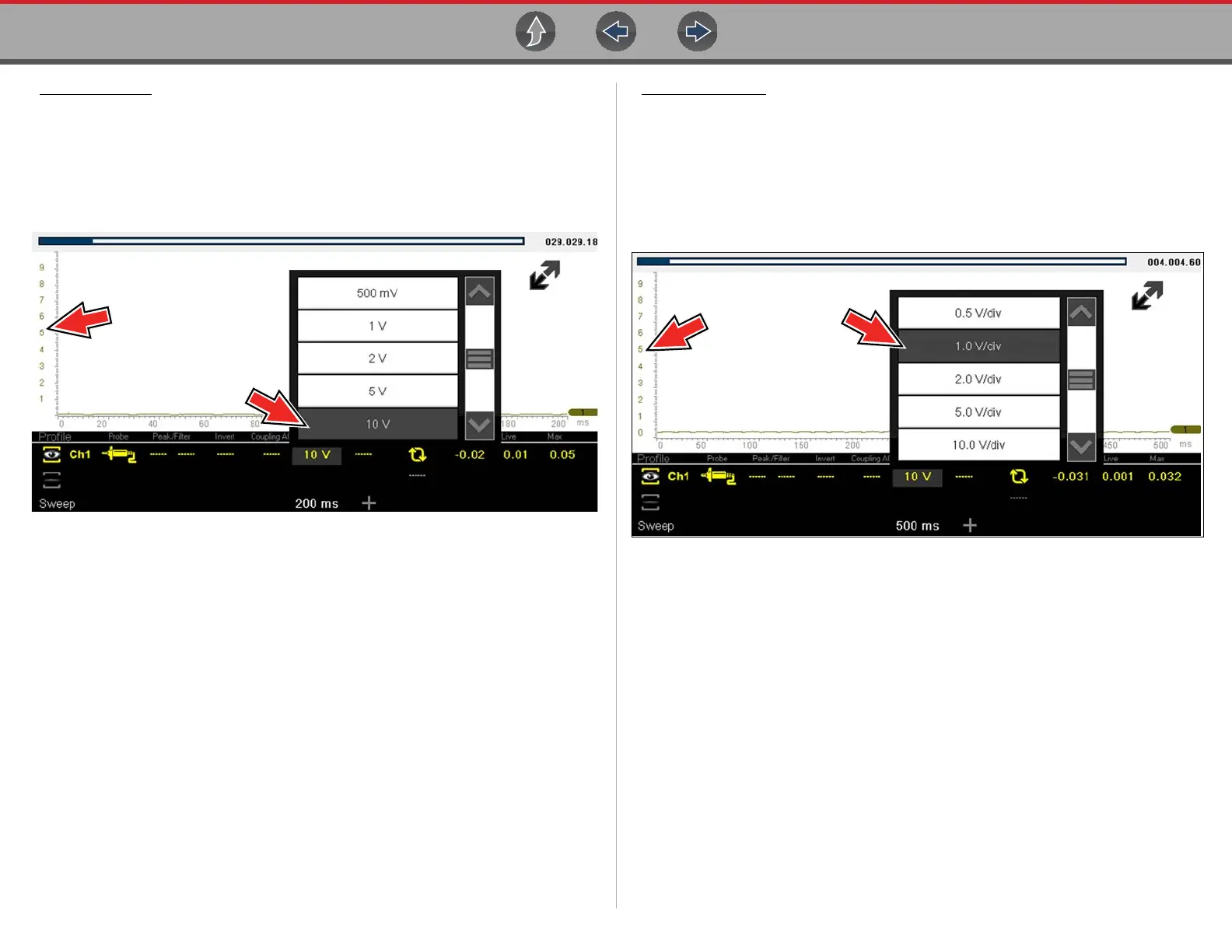

Example (Figure 12-29): Selecting 10V, changes the vertical scale to a 10V volt
scale. The vertical scale is “always” divided by 10, therefore each division is
incremented by 1V.
Figure 12-29
Trace Per Division - changes the dropdown vertical scale menu selections to ##/div
mode, which in turn changes the vertical scale to represent ## by division.
## - represents (variable) what is being measured (voltage, amperage, pressure
etc.)
Example (Figure 12-30): Selecting 1.0V/div, displays a vertical scale divided
by 10. The vertical scale is “always” divided by 10, therefore each division is
incremented by 1.0V, thus a 10V scale.
Figure 12-30
