z Intelligent Diagnostics Demo 3 - Opening the Intelligent Diagnostics Main
Menu (Using the Code Results Dropdown and Top Repairs Graph)
Intelligent Diagnostics uses the vehicle ID and any active codes to query and
display only information/data applicable to the vehicle and specific code selected.
Intelligent Diagnostics information modules are contained in one multi-card Main
Menu.
1. Select code P0300 from the code results list.
2. Select the Diagnose icon from the toolbar.
3. The Intelligent Diagnostics Main Menu opens (Figure 5-2).
4. Select the Code Results Dropdown menu (Figure 5-2) to open the list of
codes (if multiple codes are displayed). This menu allows you to select any of
the codes from the code list, without having to exit Intelligent Diagnostics.
Selecting a code changes the Intelligent Diagnostics data displayed in the
menu to specific data about that code.

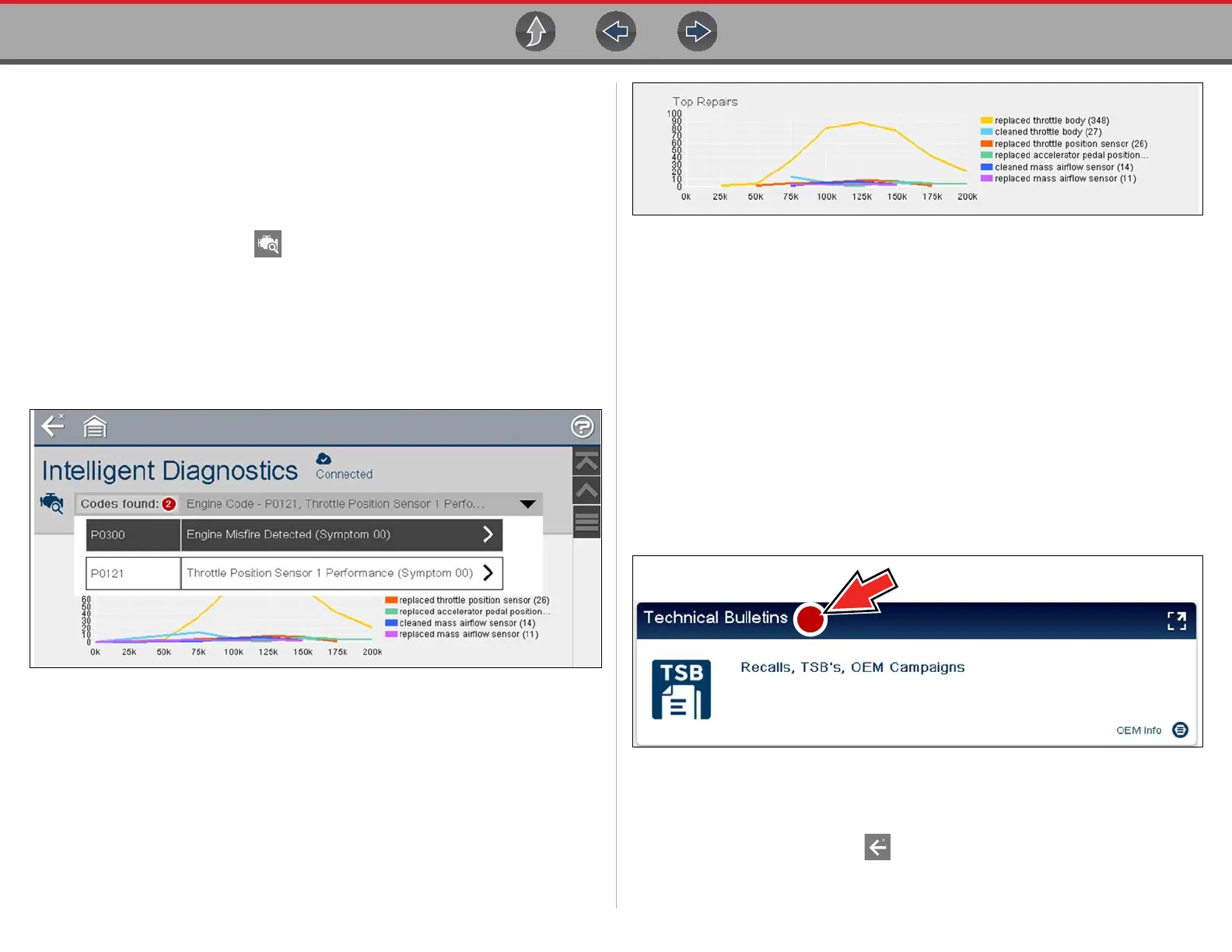

Figure 5-2
5. The Top Repairs Graph (Figure 5-3) shows the most common verified fixes
and procedures, and provides a quick indication of what other technicians
have done to fix vehicles that have exhibited the same code.The graph is not
selectable and is continuously updated as new data is collected.
Figure 5-3
6. Proceed to Intelligent Diagnostics Demo 4
z Intelligent Diagnostics Demo 4 - Viewing OEM Technical Service
Bulletins
1. Select code P0300 from the Code Results Dropdown menu.
2. Scroll down to the Technical Bulletins card.
The Technical Bulletins feature allows you to access OEM Recall, TSB and
Campaign information (if available) for the selected code.
- A red icon (Figure 5-4) indicates the total number of Recalls, TSBs, and
OEM Campaigns that have been found.
- A green icon (check mark) indicates a search was performed and no
results were found.
3. Select the Technical Bulletins card.
Figure 5-4
A list of available OEM information is displayed. Our selected code has only
one result.
4. Select the TSB to view it.
5. When finished select Back to return to the Intelligent Diagnostics Main
Menu.
6. Proceed to Intelligent Diagnostics Demo 5
