DAW Control
Channel Solo and Cut Tile
Channel V-pot
E

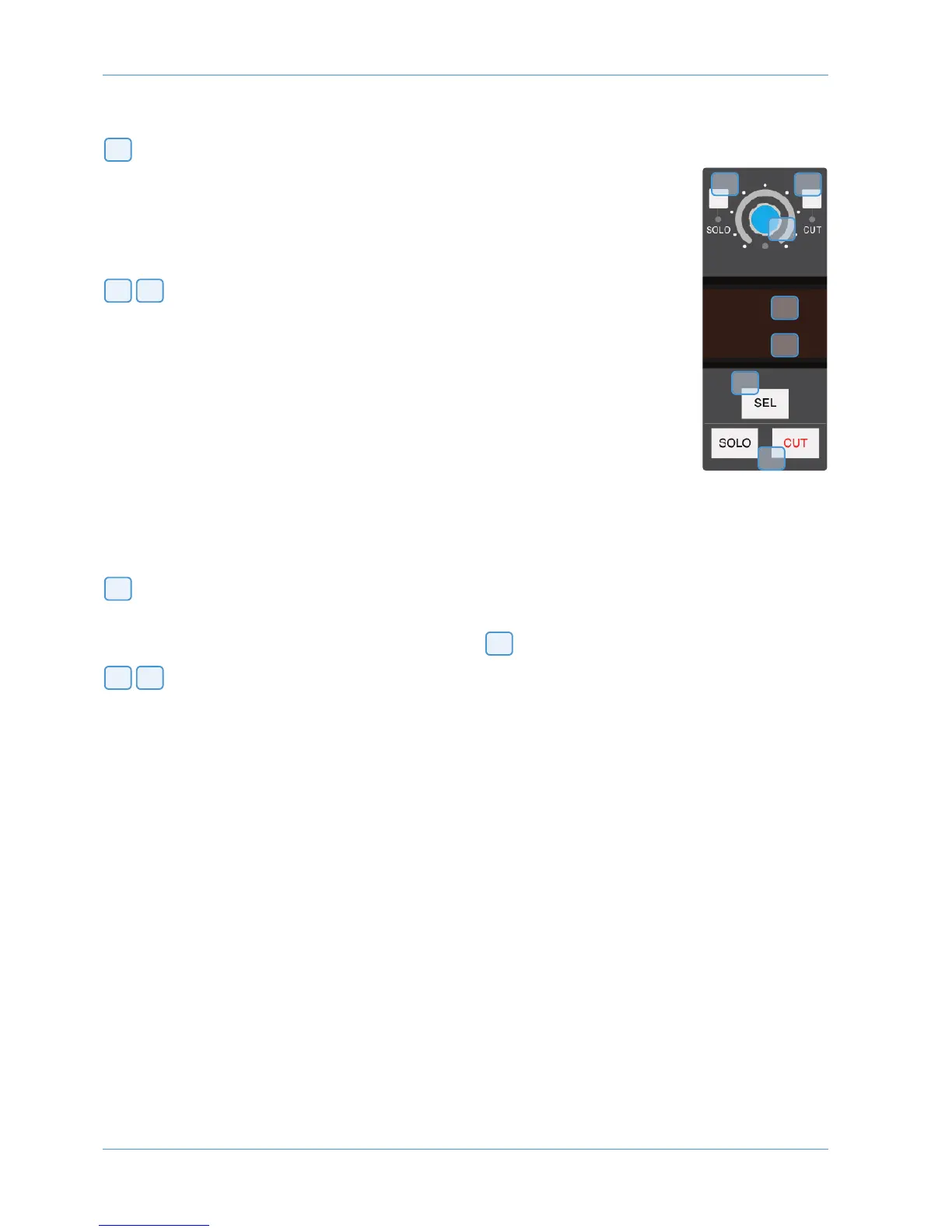

ach channel has a continuous controller (the V-pot). This can be used to control Send levels and
Panning, and to assign Input, Output and Send routing. See Page 4-16 for more details.
The V-pot includes a push switch that is used (depending on the centre section mode) to select
sends to be pre or post fade, to mute sends and to confirm I/O selections. See Page 4-15 for more
details.
Solo and Cut Switches
Two sets of SOLO and CUT buttons are provided on each channel. The upper set is associated
with the signal path controlled by the channel V-pot and the lower set with the signal path under
fader control. Thus in Analogue Focus mode and with CHANNEL mode selected the lower set
of buttons control the analogue path and the upper the DAW channels. Changing to DAW Focus
reverses this.
When a DAW solo is active the cut buttons on the other channels flash.
Holding down OPTION and pressing a channel SOLO/CUT button will select/deselect that
function across all channels. If channels are already soloed then this will turn off all solo buttons,
making this a quick way to clear solos.
Solo Isolate
Holding down ALT and pressing a channel SOLO will put a channel into Solo Isolate mode. This mode prevents that
channel from being cut when a SOLO is activated on another channel. This is particularly useful for FX return tracks.
Channel Select Button
The channel SEL button can function as a channel select button, a track record enable or a plug-in edit enable button,
depending on the mode selected on the Master Control panel ( , as shown on Page 4-6).
Scribble Strip Displays
When an AWS channel fader is controlling a DAW fader level, the channel scribble strip will indicate a four character
version of the DAW channel name. When controlling the analogue channel it displays the number of the fader, eg ‘Fader
23’.
The scribble strip can also display other information such as: Automation status, Grouping information, Monitor information,
Input/Output routing, Send routing, Send Pre/Post information, fader level display and Pan position.
The V-pot scribble strip displays the DAW channel name or analogue fader number in CHANNEL mode or the selected
function (Pan, ASGN etc) in other modes.
14 18
5
17
16 19
16
15
14
18
1
7
19
16
1
5
Page 4-12 AWS 924-948 Owner’s Manual
