The Channel Meter Panel (629923X1 / X2)
First remove the top trim by unscrewing the five screws that secure it to the console frame, and lift it clear. Now refer

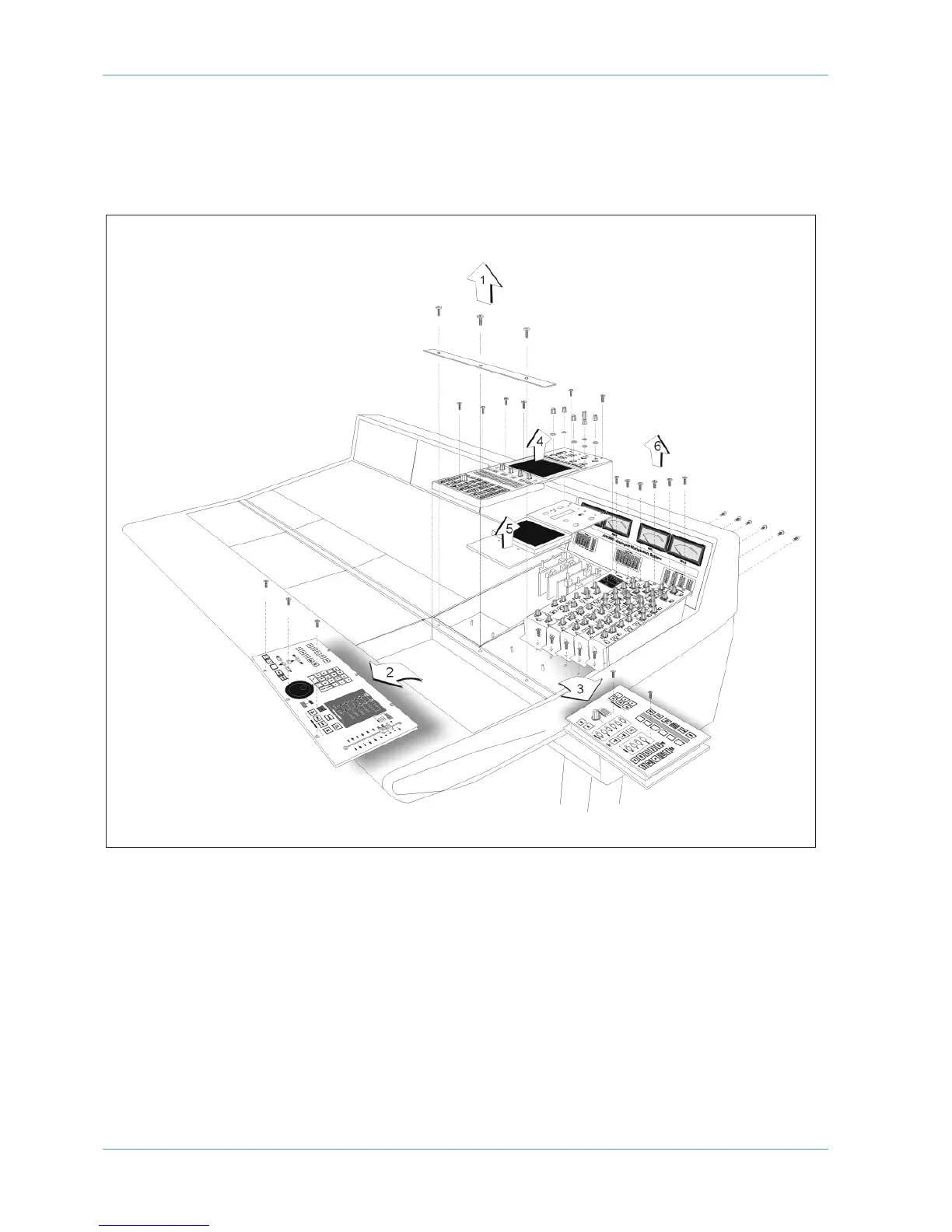

to the illustration on Page A-16. Each meter panel is secured by four screws across the top. Remove these and lift the
meter panel clear, taking care to disconnect the ribbon connectors.
