AWS 924-948 Owner’s Manual Page 2b-11
AWS 948 Tutorial
CENTRE SECTION

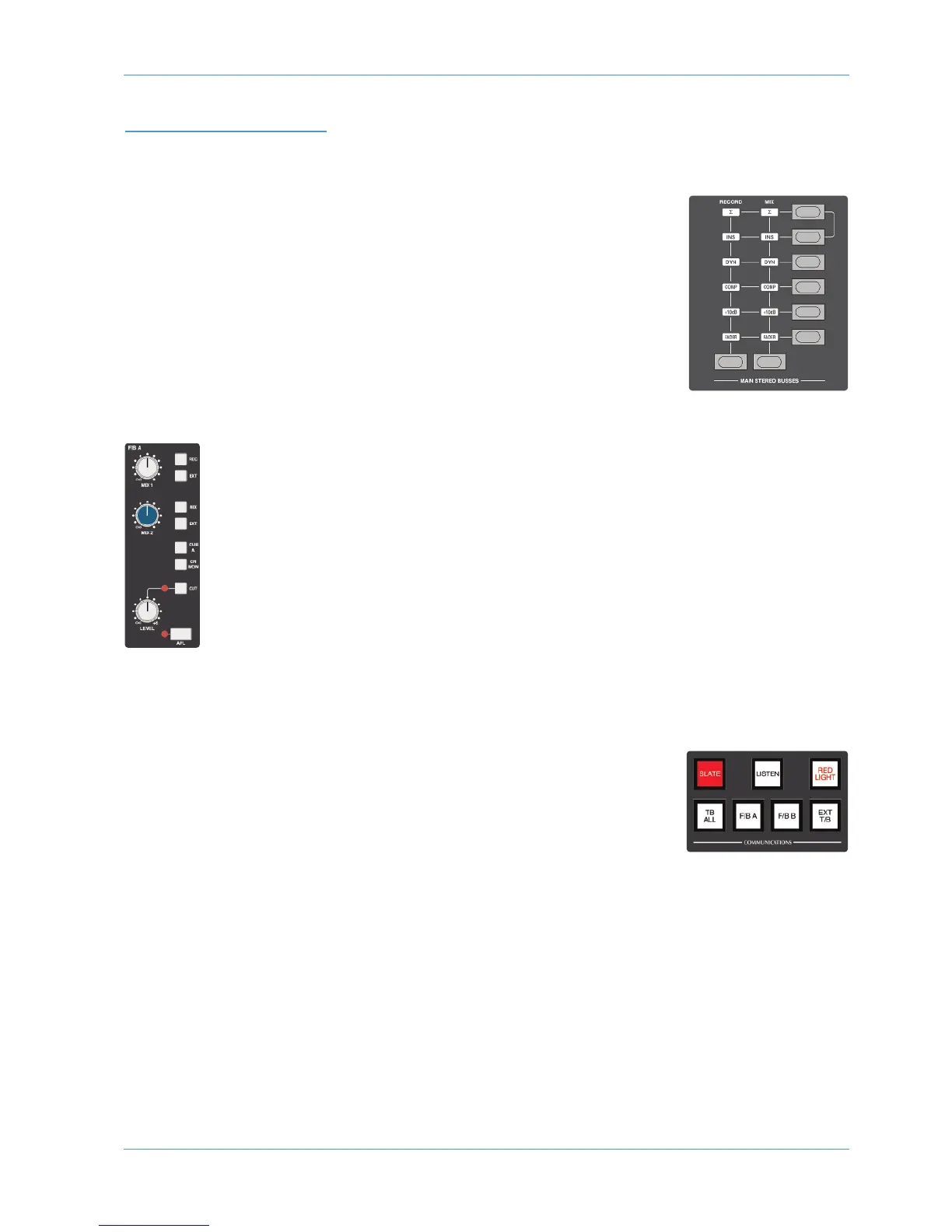

Adjusting the Mix and Record Busses
To assign control of the Record and/or Mix busses to the master fader, hold down the
button at the base of the RECORD or MIX columns of the bussing matrix next to the
fader, and press the button in the row labelled FADER. Now move the master fader to
a
djust the bus level.
Creating a Monitor Mix
Press MIX in the MON SRC buttons monitor source buttons on the Monitor Control
Panel and ensure that the CUT button is inactive. Adjust the monitor level using the main
monitor level pot.
Creating Foldback Mixes
Foldback mixes can be quickly created using the Foldback section of the centre section.
Select sources using the buttons down the right-hand side. The MIX pots control level for the sources to
their right. There is also an overall LEVEL control.
Using the FX Returns
External FX processing such as reverbs and delays can be connected to the console’s four FX send busses.
FX unit outputs can be returned back into the AWS via the four Stereo Return inputs in the console centre
section. These can be routed to either of the foldback mixers, and to the record and mix busses.
Using Talkback
The talkback controls are located to the right of the shuttle wheel. Press SLATE to send
talkback to the Mix, Rec and Track busses, press FB A or B to send it to the foldbacks, or
press TB ALL to send to foldback A and B outputs. The black pots above the TFT screen
control communications levels.
