CHANNEL STRIP
N
ote that throughout this section, where the 924 and 948 differ, the 924 channel strip is shown on the left and the
948 on the right. Text specific to one model is framed in a blue box with the model name at the top.

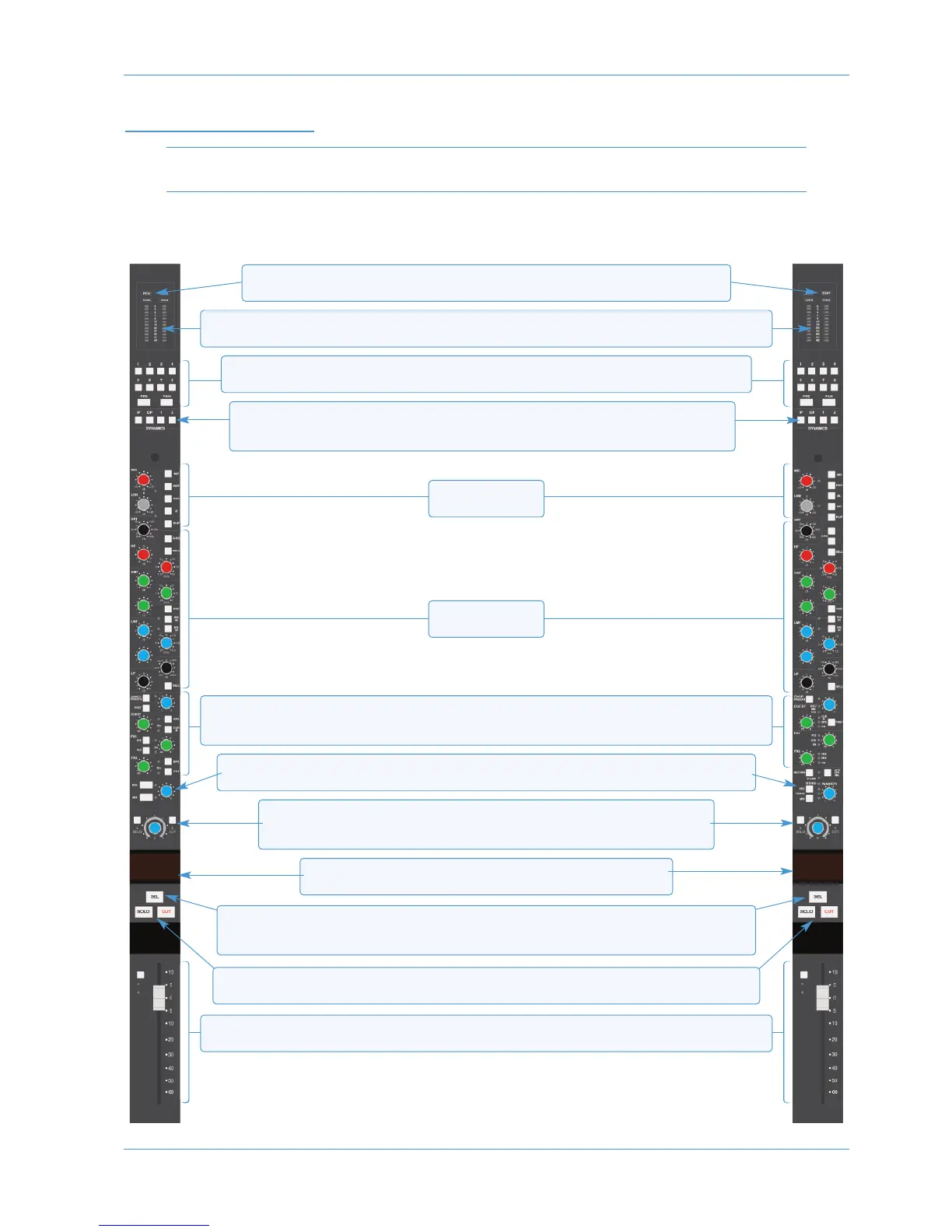

Overview
Channel meters and peak lights, showing analogue levels or DAW levels depending on console Focus mode.
See Page 3-6.
REC: DAW channel is in Record Ready; EDIT: channel is assigned to the plug-in editor.
See Section 4.
Track bus routing and source selection: Pre-fader (PRE), post-pan (PAN) or post fader (neither)
See Page 3-10.
Dynamics assignment: Press 1or 2 (either for Stereo channels) to assign available compressors.
Compressor source is post EQ; IP or OP move it to begninning or end of chain.
See Page 3-6.
Input section
See Page 3-5.
EQ section
See Page 3-7.
Cue and FX sends. Press pot to activate.
948: hold ALT/EFX Sel and press pot to switch between odd/even sends or EFX.
See Page 3-9.
Channel pan and routing buttons for Mix and Rec busses. (948: RETURN enables 48-chan mixing)
See Page 3-11.
V-Pot, plus solo and cut switches. Control either DAW channel or console channel,
depending on the console Focus mode. Press V-pot to operate V-sel switch.
See Page 3-12.
Channel display, showing a variety of DAW and console information.
See Page 3-11.
SEL switch, selects channel for editing in DAW or centre section, depending on console Focus
mode. Also used as a Record Ready switch and Plug-in Edit selectors.
See Page 3-12.
Channel solo and cut switches for DAW or console channel, depending on the console Focus mode.
See Page 3-12.
Channel fader. Controls either DAW channel or console channel, depending on the console Focus mode.
See Page 3-12.
A
WS 924 AWS 948
Analogue Operations
AWS 924-948 Owner’s Manual Page 3-5
