The Sonar Template

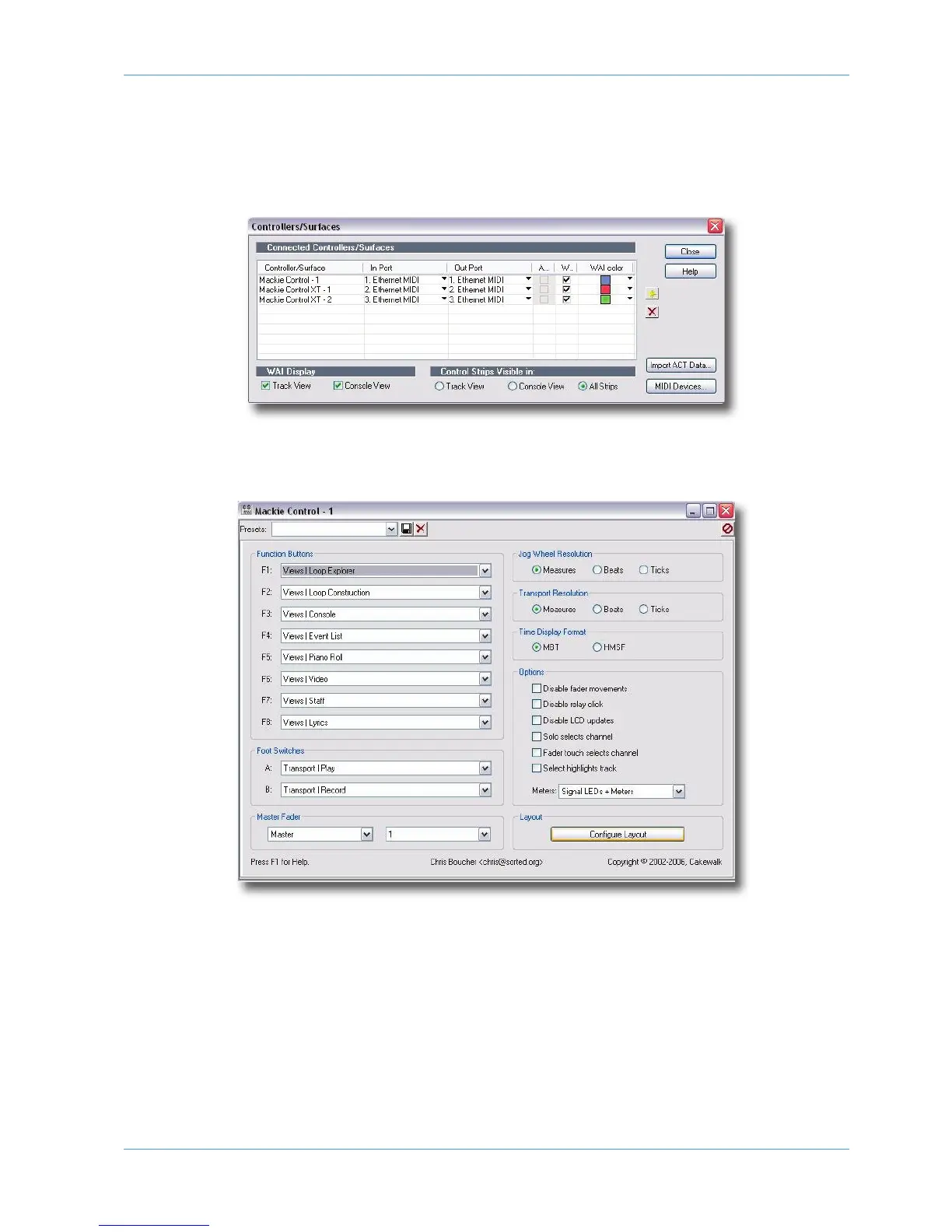

The AWS emulates a Mackie Control (MCU) plus two Mackie Control Extenders. Configure the MIDI input and output ports
a
s below in the Controllers/Surfaces page of Sonar’s Options menu (substitute ipMIDI ports 4-6 for ports 1-3 if Sonar is to
be used on the second AWS DAW layer)
Once the MIDI ports are configured, select the Mackie Control device from Sonar’s Tools menu to open the Mackie Control
properties page, and use the Configure Layout feature to map the AWS channels to the Sonar mixer channels using the AWS
channel V-pots, as prompted on the channel scribble strip displays (note: the AWS must be in DAW focus mode).
DAW Control
AWS 924-948 Owner’s Manual Page 4-39
