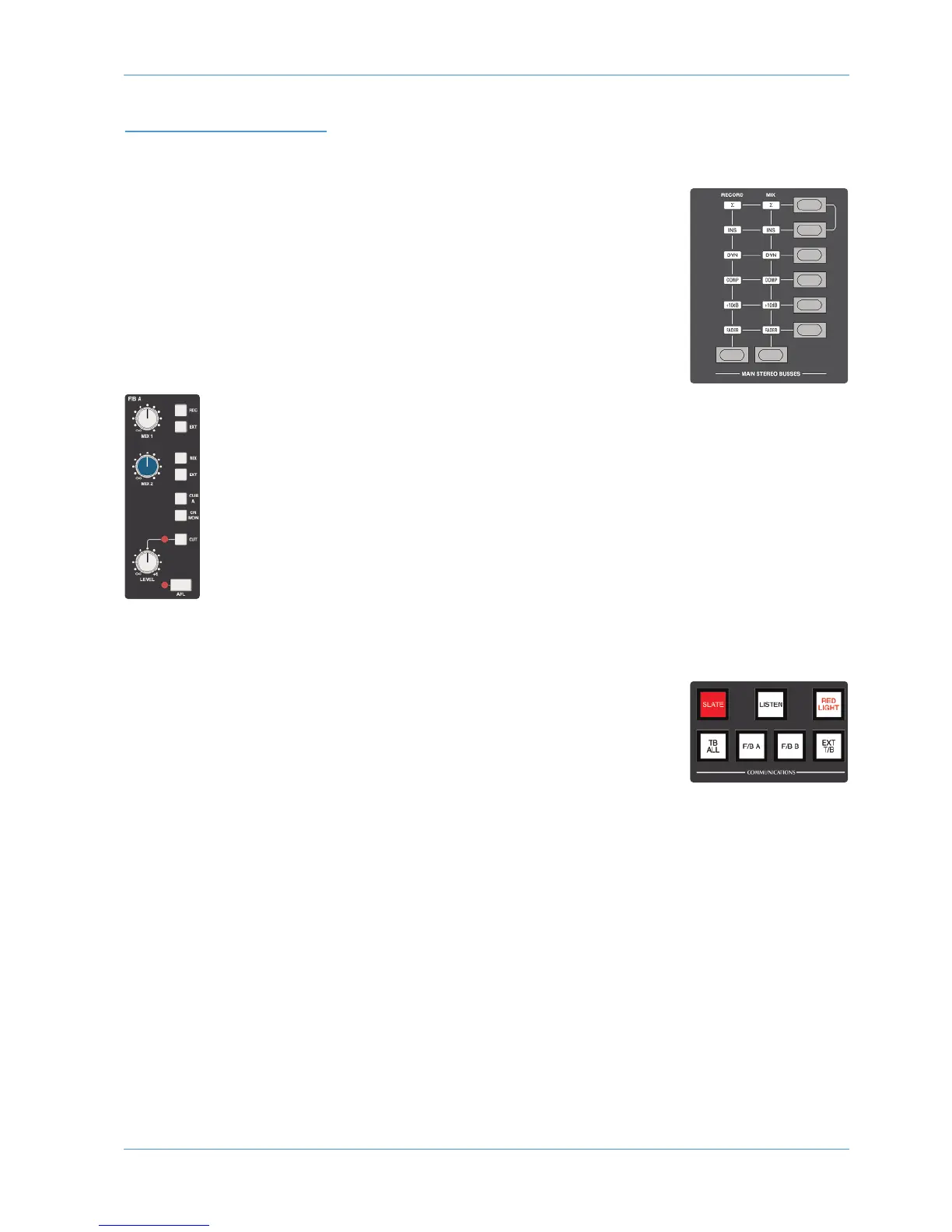

CENTRE SECTION
Adjusting the Mix and Record Busses
To assign control of the Record and/or Mix busses to the master fader, hold down the button
at the base of the RECORD or MIX columns of the bussing matrix next to the fader, and
press the button in the row labelled FADER. Now move the master fader to adjust the bus
level.
Creating a Monitor Mix
Press MIX in the MON SRC buttons monitor source buttons on the Monitor Control
Panel and ensure that the CUT button is inactive. Adjust the monitor level using the main
monitor level pot.
Creating Foldback Mixes
Foldback mixes can be quickly created using the Foldback section of the centre section.
Select sources using the buttons down the right-hand side. The MIX pots control level for the sources to
their right. There is also an overall LEVEL control.
Using the FX Returns
External FX processing such as reverbs and delays can be connected to the console’s four FX send busses.
FX unit outputs can be returned back into the AWS via the four Stereo Return inputs in the console centre
section. These can be routed to either of the foldback mixers, and to the record and mix busses.
Using Talkback
The talkback controls are located to the right of the shuttle wheel. Press SLATE to send
talkback to the Mix, Rec and Track busses, press FB A or B to send it to the foldbacks, or
press TB ALL to send it to all outputs. The black pots above the TFT screen control
communications levels.
‘In-line’ Recording
Selecting CHANNEL on the Master Control Panel while in DAW Focus will allow you to control the input levels from
the channel rotary encoders and the DAW mix from the channel faders. Pushing the Channel Rotary Encoder will swap the
encoder and fader, which allows some faders to control input level and others to control the DAW monitor mix, mimicking
the operation of an in-line console. See Section 4 for more details.
ASW 924 Tutorial
AWS 924-948 Owner’s Manual Page 2a-5
To Next Page
