The Channel Fader (629924X1)

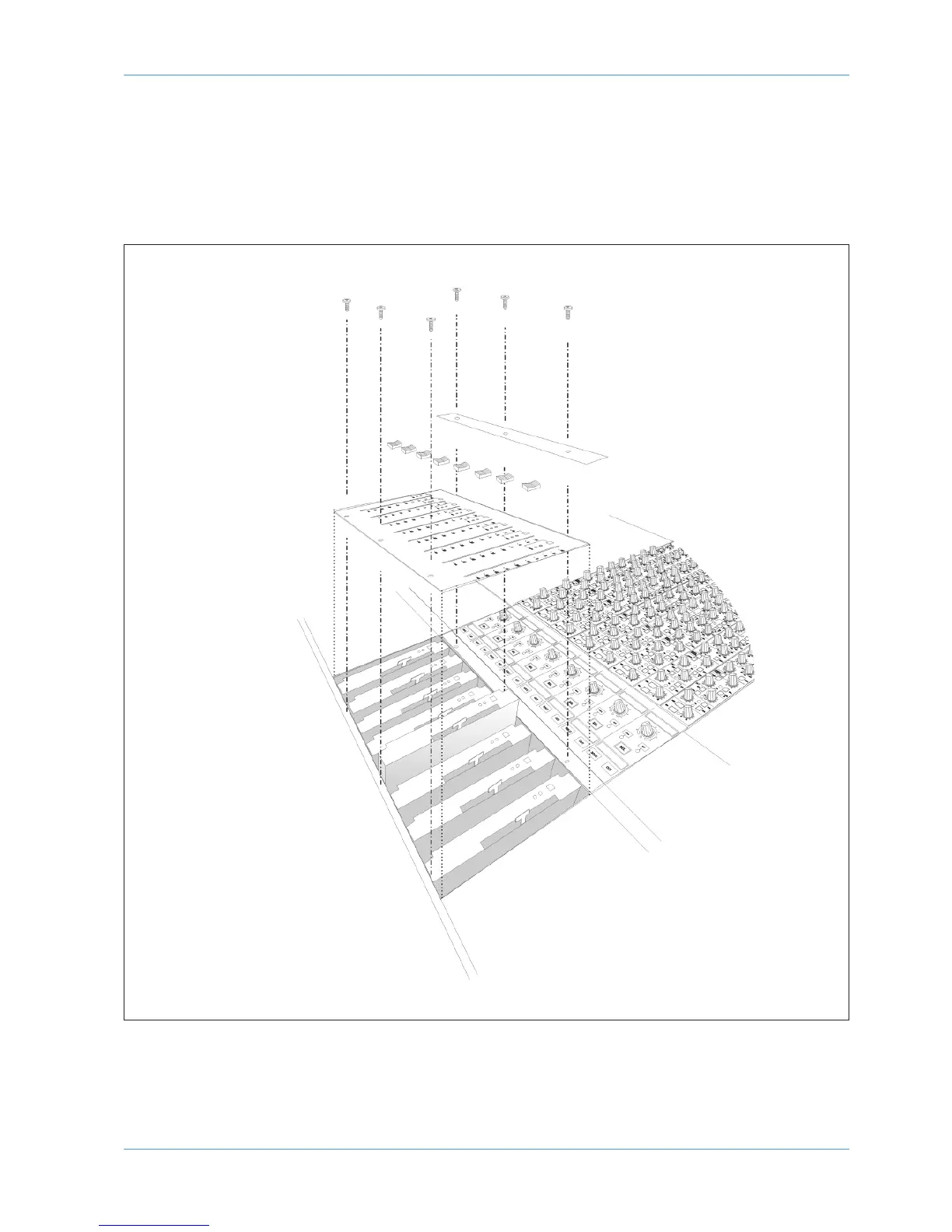

First remove all of the fader knobs from the faders in that bay. Do this by simply pulling firmly on each one until it separates
from the fader tang. Then, unscrew the six countersunk screws and remove the top plate. Each fader can then be lifted
clear from its connector on the bus card. When reassembling, the top plate has locating pins that locate into each fader
t
o ensure its correct positioning.
