The Logic Template

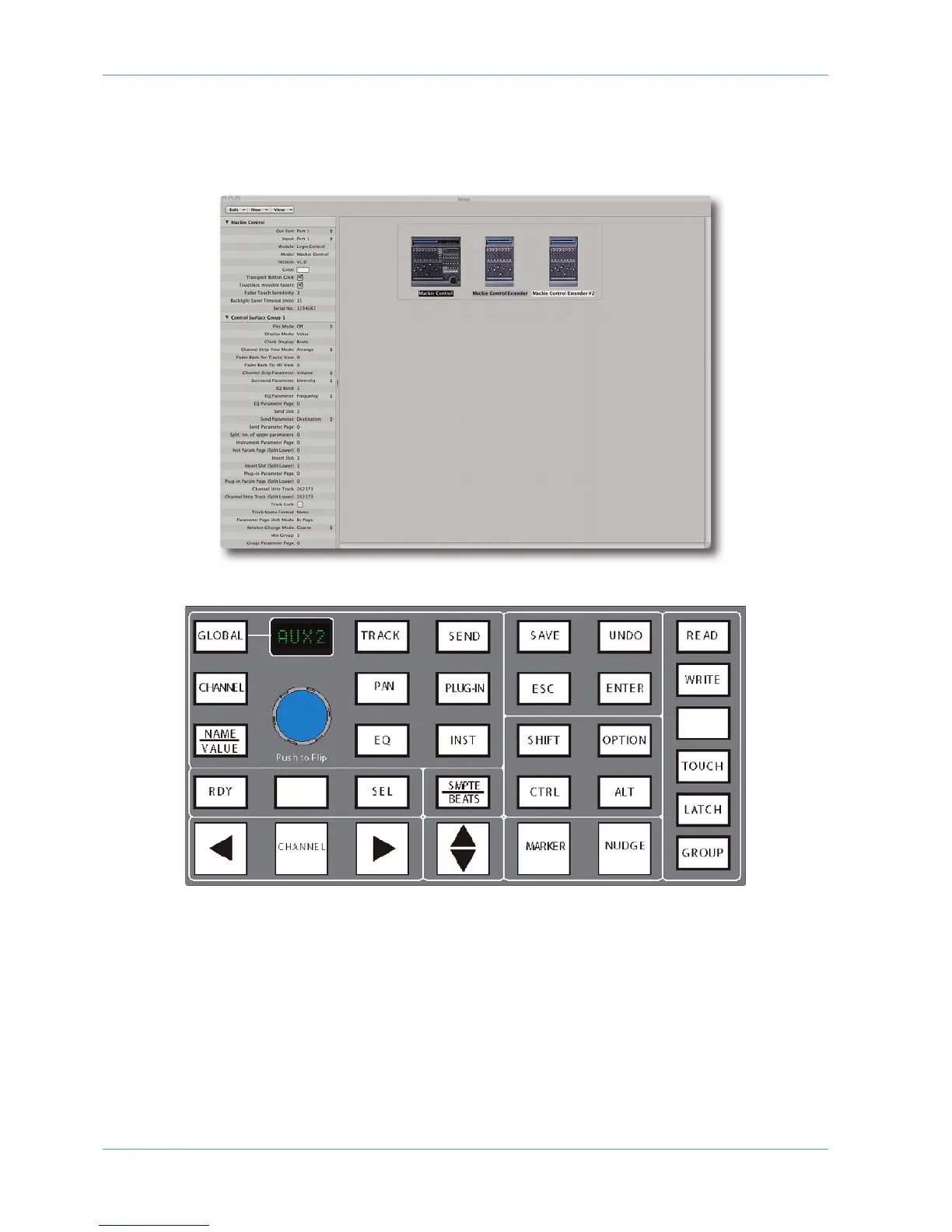

The AWS emulates a Mackie Control plus two Mackie XT fader expanders. The Logic Control Surface set up should be
c
onfigured as shown below in the Logic Preferences menu.
Logic Console Layout
Major changes compared to the HUI front panel are Automation modes replacing the Screen display select keys and the
inclusion of the MARKER and NUDGE functions. GLOBAL uses the 8x8 matrix keys to select the different view
options. CHANNEL is unchanged and assigns the AWS channel gain element to the V-pot. The Encoder switch is used
to ‘flip’ parameters on to the fader but the encoder itself has no function. The Display indicates V-pot mode with a two-
character label. Plug-ins are controlled from the channel V-pots so there is no longer an ‘EDIT’ select mode for the channel
SEL key.
DAW Control
Page 4-34 AWS 924-948 Owner’s Manual
