The TFT Screen
T
he centre section TFT screen provides access to a number of console configuration items, in addition to its primary role
as plug-in editor.
The 16 boxes at the base of the screen indicate the functions assigned to the 16 buttons in two rows of eight below the
screen.
The four boxes above them indicate the functions assigned to the central four buttons in the row of six. Note that the two
outside buttons are used for scrolling left and right, where relevant.
T

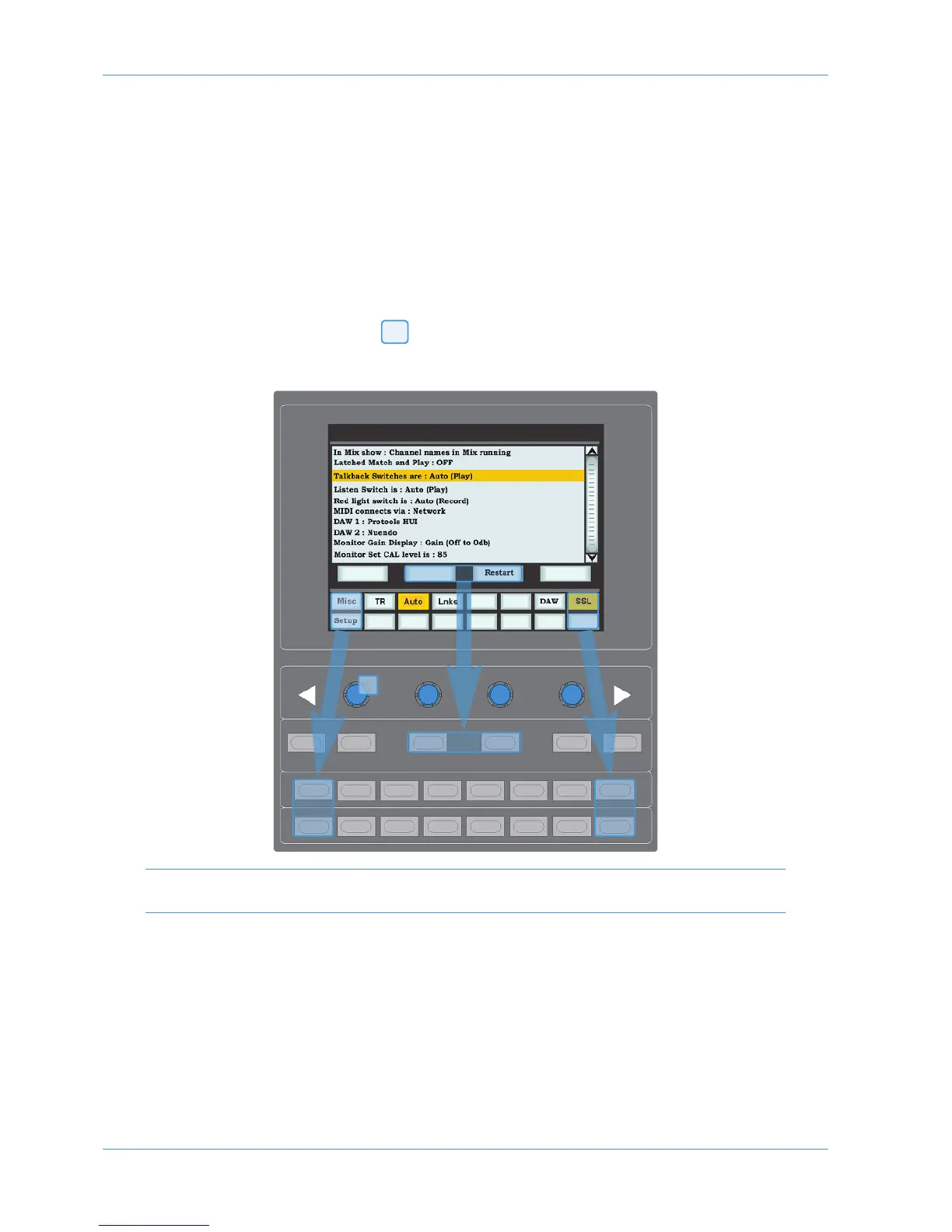

he picture below provides example illustrations of how the screen and controls relate.
To change a setting, use the left hand V-pot ( ) to select the item, then press the V-pot to enter adjustment mode.
Turn the V-pot to the desired setting and press it a second time to save the setting to non volatile memory.
Note that a VGA output on the back of the console allows the console’s screen to be displayed on an external monitor.
See Section 1 for details.
1
Misc
Setup
SSL
(blank)
(blank) Restart
1
Analogue Operations
Page 3-2 AWS 924-948 Owner’s Manual
