• Using an RJ45 cable, make a direct network connection between the network port on your AWS to a network port
o
n your workstation computer and check that the IP address is set to FIXED in the console’s
SSL > MISC > NET menu.
• Open System Preferences and click on Network. Create a new location by clicking where it says Location, scroll down
to Edit Locations and click the ‘+’ sign. Name the new location AWS.

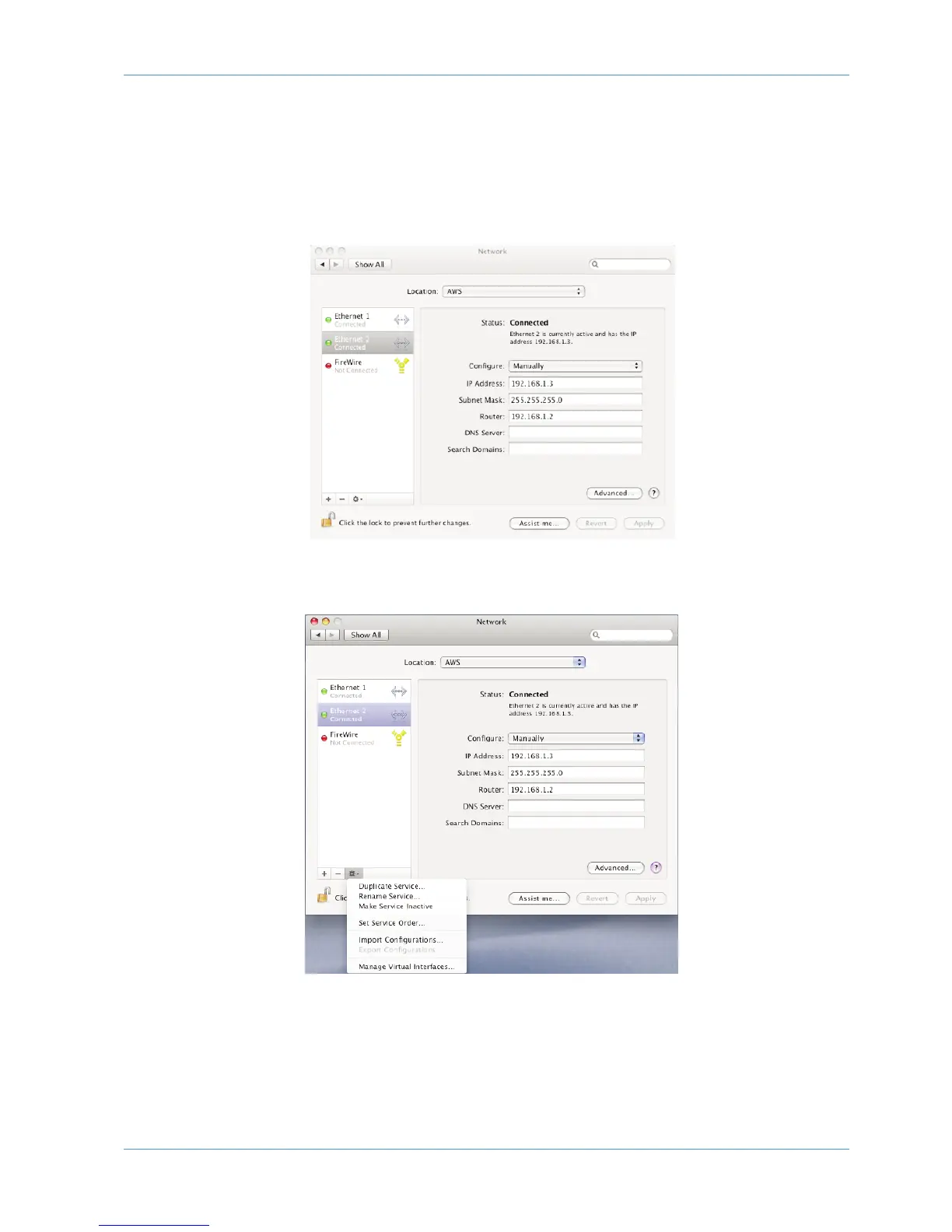

• Next, select the Ethernet port which is connected your AWS and configure as shown below:
• If your Macintosh features multiple network ports, you should set the priority of these so that the Ethernet port
connected to your AWS is at the top of the list. To do this, choose Set Service Order from the Actions pop–up menu:
DAW Connection
AWS 924-948 Owner’s Manual Page 1-9
