DMS-1200 Release 6 Operations Manual
Section 7 – DAS Device Control 72

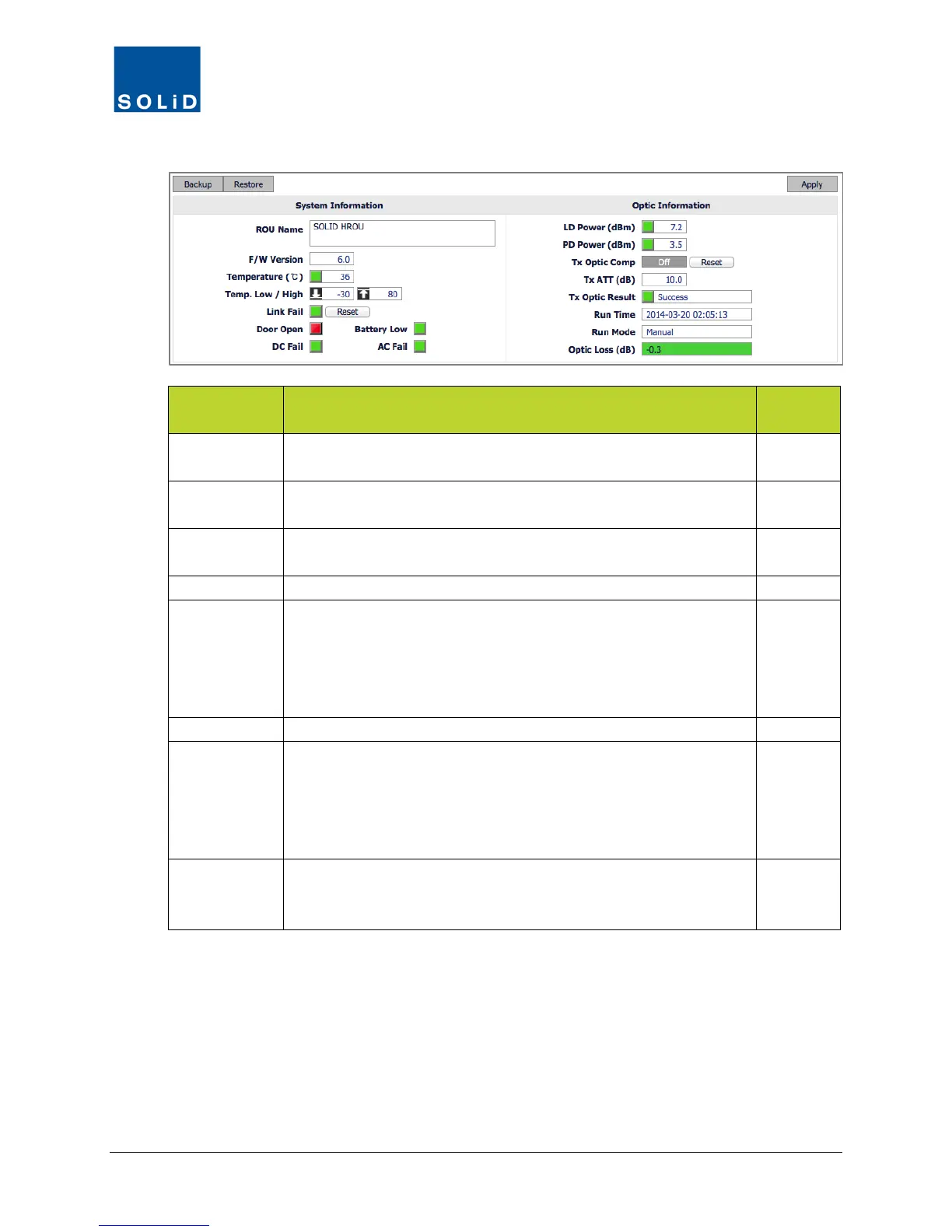

3. Configure the Optic Information according to these guidelines:
HROU Field Action / Description
User
Configure
LD Power Shows laser diode power of R-Optic module. Green = normal.
Red = Power is below reference power.
N
PD Power Shows photo diode power being received from ODU or OEU.
Green = normal. Red = Receive power is below reference level.
N
Tx Optic
Comp
Click the toggle to turn On/Off the Auto optic compensation
function for transmit signal.
Y
Tx ATT
Shows attenuation level for compensating optical loss.
N
Tx Optic
Result
Shows result after running Auto optic compensation:
Success: The optical compensation has been successful.
Over Optic Loss: optical loss exceeds limits: 6dBo or more for 4-
port optic module; 11dBo or more for 1-port optic module.
Communication Fail: Communication with BIU has failed.
N
Run Time
Date / Time when optical compensation was last performed.
N
Run Mode Shows optical compensation mode:
Auto: Optical compensation was executed by the CPU
automatically.
Manual: Optical compensation was executed manually by the
user.
N
Optic Loss Displays optical loss. Green = optical loss is within tolerance. Red
= optical loss exceeds limits: 9dB for 1-port optic module; 4dB for
4-port optic module.
N
Table 7.19 – TiTAN 20W Control Screen Fields – Optic Information (All ROU Types)
4. Click Apply when you are done. Changes are saved immediately.
