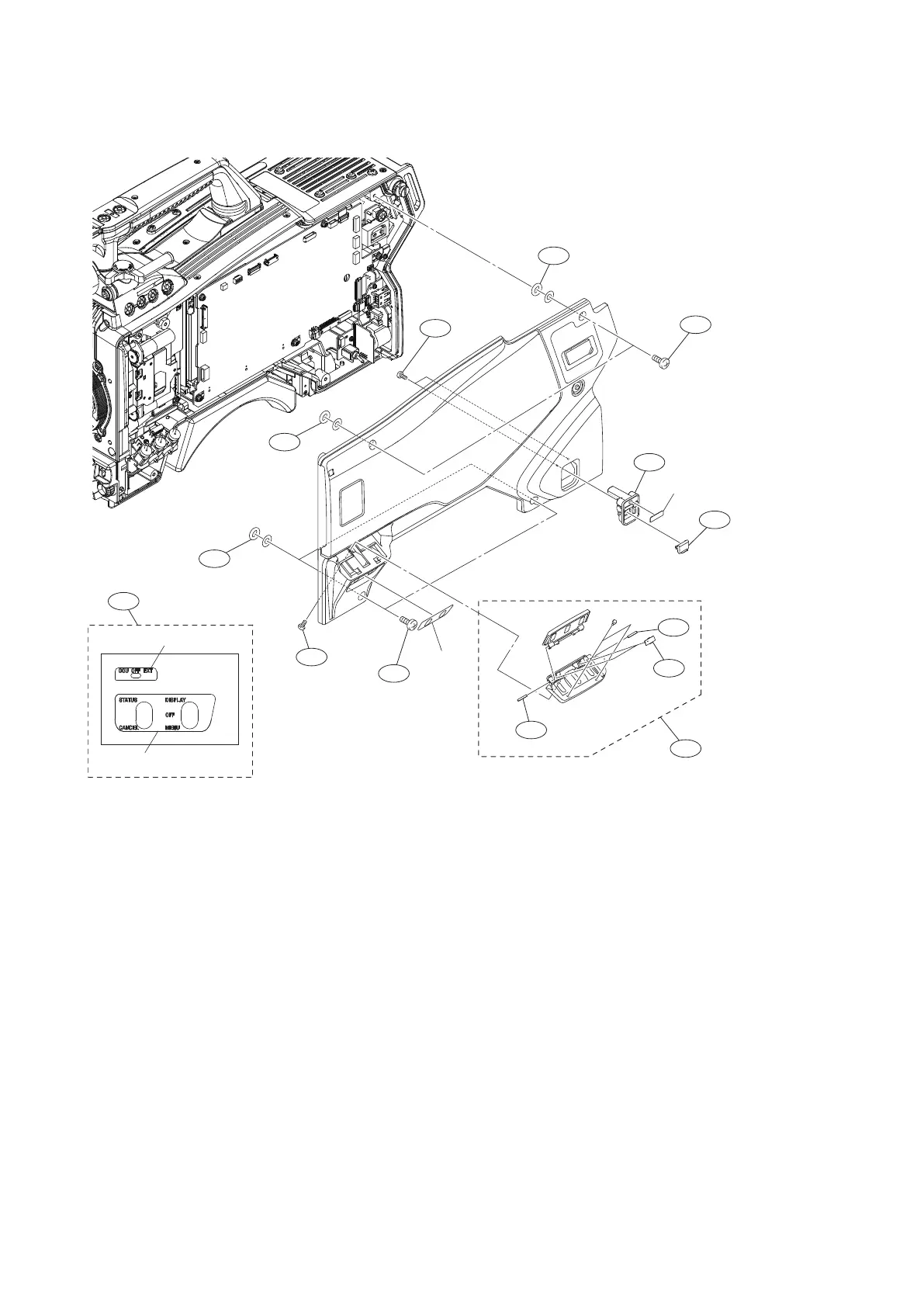

10-2. Exploded Views
Inside-1
1
2
2
3
4
4
4
5
5
6
7
8
9
9
a
a
b
b
No. Part No. SP Description
1 A-1838-923-A s INSIDE SWITCHCOVER ASSY
2 3-603-679-02 s STAINLESS SCREW +B3X10
3 3-612-669-01 o LID,POWER SW
4 3-672-250-01 s RING (M2.6), O
5 3-703-575-11 s PIN (DIA. 1.2X8), PARALLEL
6 3-742-066-11 o SPRING, SHUTTER
7 4-400-101-01 s POWER SW HOUSING
8 4-410-956-01 s SHEET, INSIDE(MULTI)
9 4-654-273-02 s ACE (M2), LOCK [B2x5]
HDC4300
10-2
