2. Disconnect the harness from the connector (CN2) on the CN-3423 board.

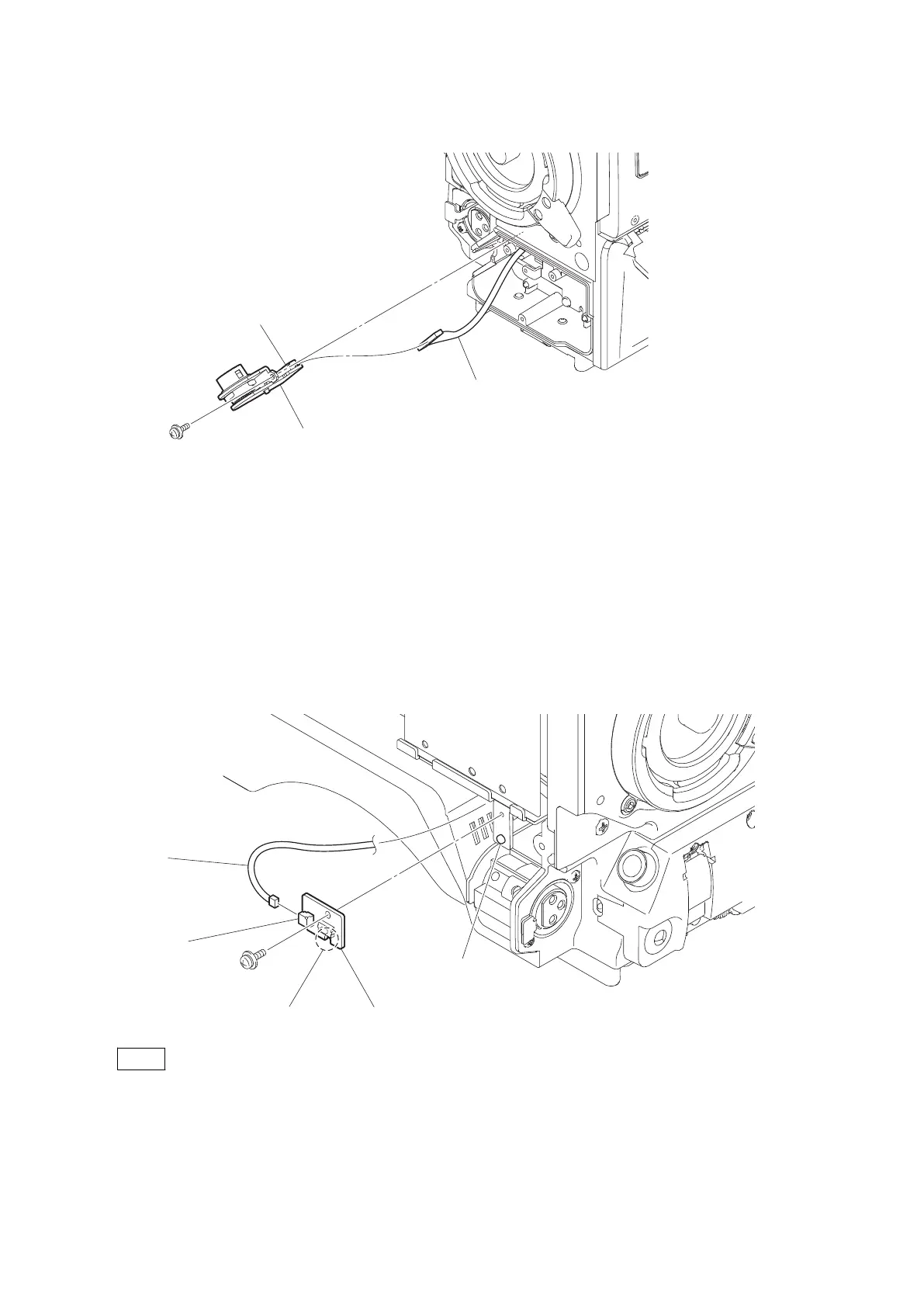

Harness
CN-3423 board
CN2
PSW2 x 5
3. Install the removed parts by reversing the steps of removal.
4-8-7. SW-1672 Board
Preparation
1. Remove the outside panel assembly. (Refer to“4-3-1. Outside Panel Assembly”)
Procedure
1. Remove the screw and pull out the SW-1672 board.
2. Disconnect the harness from the connector (CN001) on the SW-1672 board.
Harness
SW-1672 board
Boss
CN001
PSW2 x 5
Slit
Note
When installing the SW-1672 board, match the boss with the slit.
3. Install the removed parts by reversing the steps of removal.
