Sony HDC4300 - MIC Panel

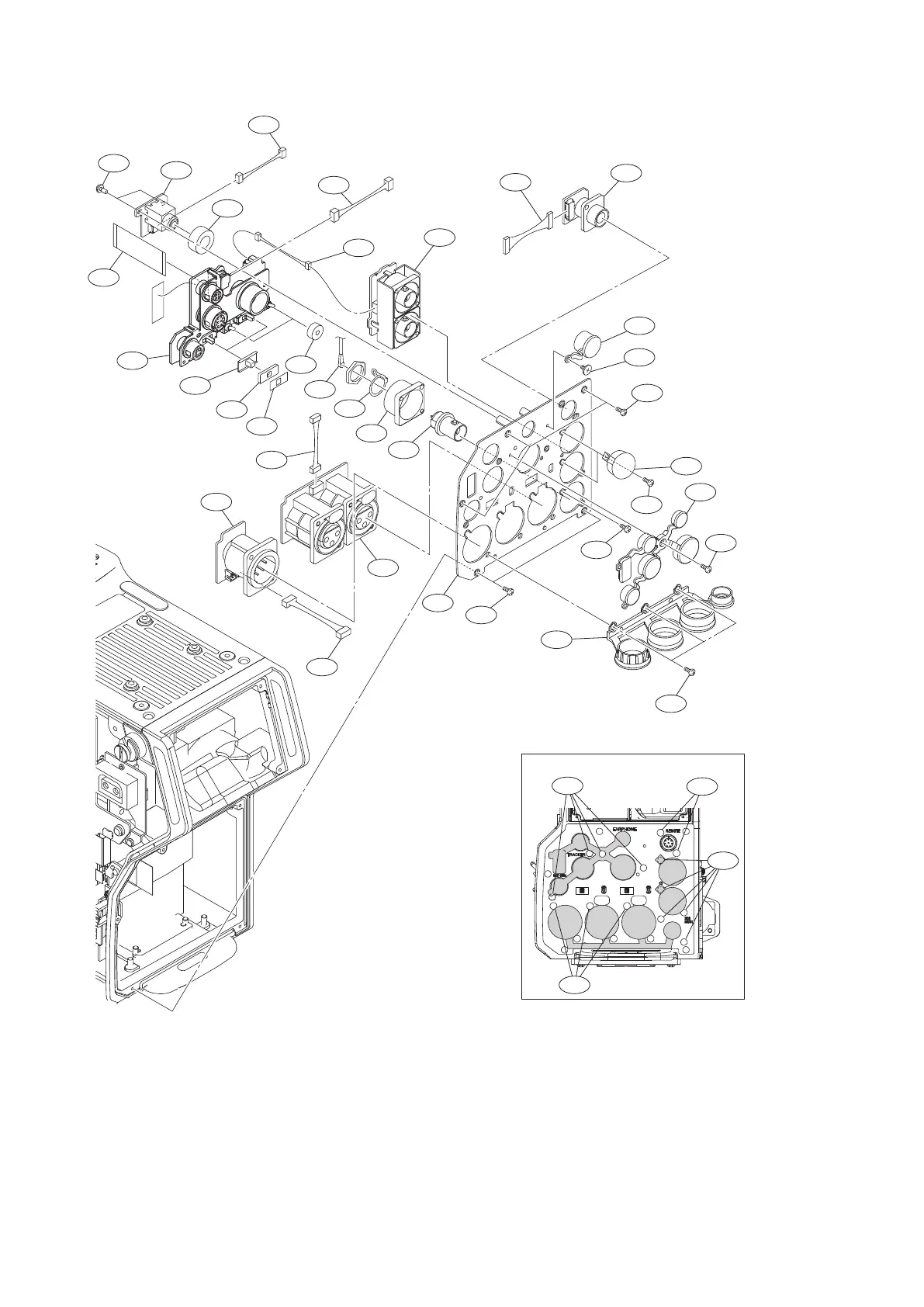

Mic Panel
Position of screws
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
830
830
830
817
818
820
822
823
824
825
826
827
828
829
831
831
831
831
831
831
831
819
821
No. Part No. SP Description
801 A-1860-036-A s MOUNTED CIRCUIT BOARD, CN-3425
802 A-1860-038-A s MOUNTED CIRCUIT BOARD, CN-3427
803 A-1860-039-A s MOUNTED CIRCUIT BOARD, CN-3428
804 A-1860-040-A s MOUNTED CIRCUIT BOARD, CN-3429
805 A-1860-041-A s MOUNTED CIRCUIT BOARD, CN-3430
806 A-1860-043-A s MOUNTED CIRCUIT BOARD, CN-3432
807 1-784-240-11 s CONVERTER, COAXIAL CONNECTOR
808 1-830-742-11 s CABLE ASSEMBLY, COAXIAL
No. Part No. SP Description
809 1-831-147-11 s CABLE, FLEXIBLE FLAT (36 CORE)
810 1-968-142-11 s HARNESS, SUB (TEST)
811 1-968-143-11 s HARNESS, SUB (EARPHONE)
812 1-968-146-11 s HARNESS, SUB (EXT DC IN)
813 1-968-150-11 s HARNESS, SUB (UNREG)
814 1-968-153-11 s HARNESS, SUB (MIC)
815 1-968-154-11 s HARNESS, SUB (REMOTE)
