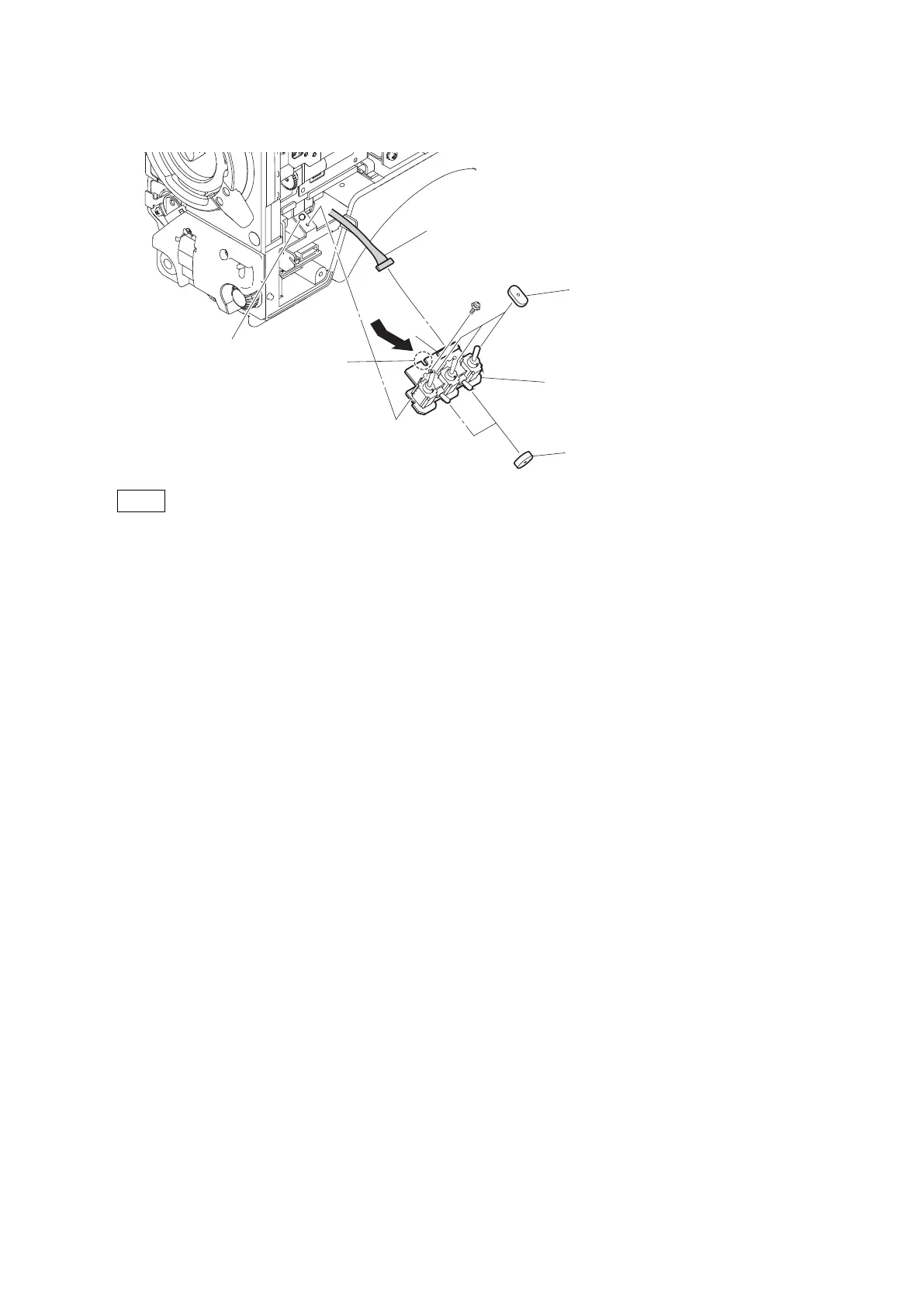

3. Disconnect the harness from the connector (CN1) on the SW-1528 board.
Toggle SW cushions
PSW2 x 5
CN1
Slit
Harness
SW-1528 board
Toggle SW cushions
Boss
Note
When installing the SW-1528 board, match boss with the slit.
4. Install the removed parts by reversing the steps of removal.
4-8-10. CN-3424 Board
Preparation
1. Remove the inside panel assembly. (Refer to “4-2. Inside Panel Assembly”.)
2. Remove the outside panel assembly. (Refer to “4-3-1. Outside Panel Assembly”.)
3. Remove the front assembly. (Refer to “4-5. Front Assembly”.)
4. Remove the SW-1672 board. (Refer to“4-8-7. SW-1672 Board”)
5. Remove the SW-1528 board. (Refer to “4-8-9. SW-1528 Board”.)
6. Remove the SW-1527 board. (Refer to“4-8-5. SW-1527 Board”)
7. Remove the CN-3423 board. (Refer to“4-8-6. CN-3423 Board”)
