Sony HDC4300 - OHB Block

OHB Block
608
613
606
615
617
616
618
614
611
609
605
619
603
607
601
602
610
612
604
attached
screw
K2 x 3
K2 x 3

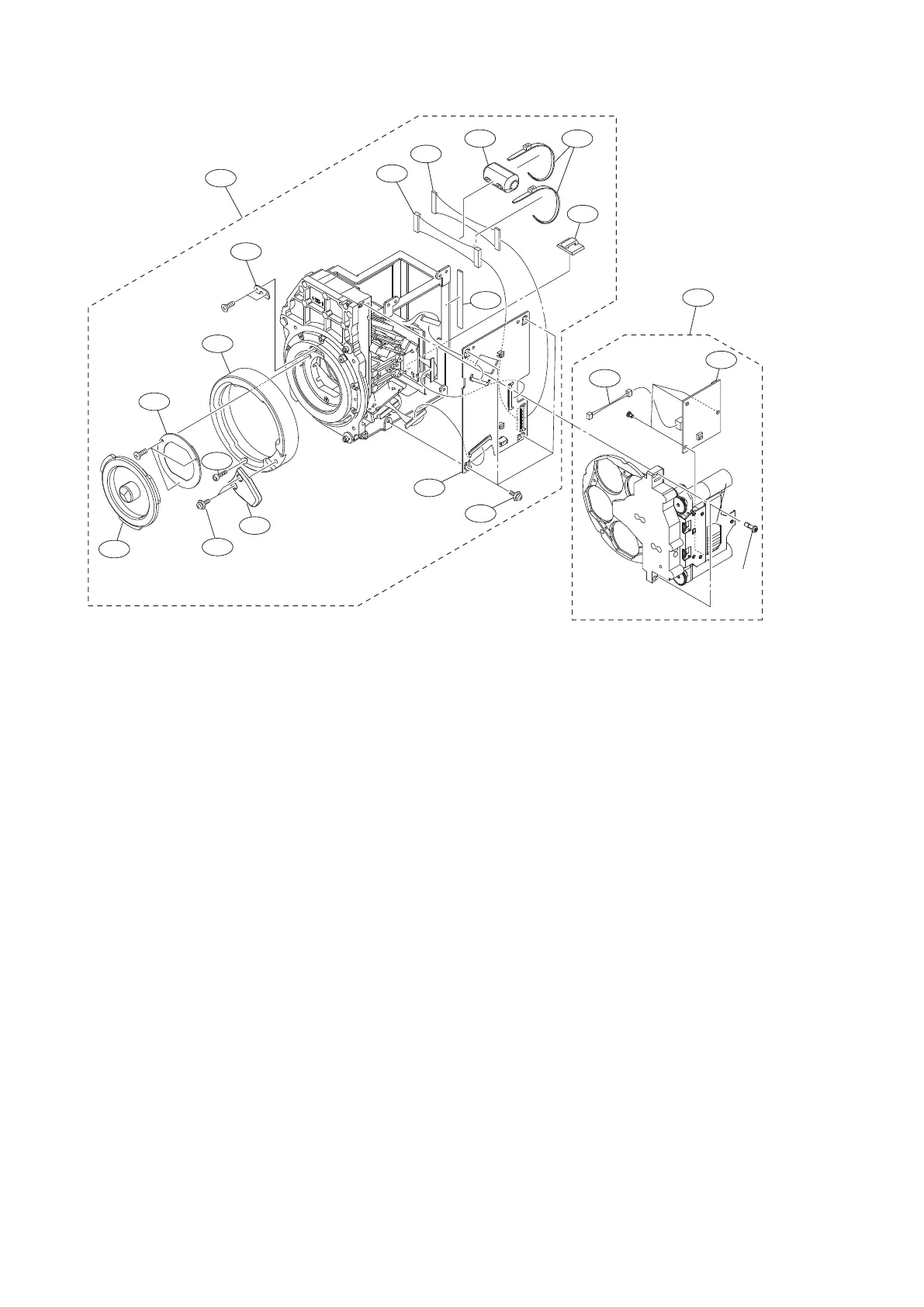

No. Part No. SP Description
601 A-1813-088-A s MOUNTED CIRCUIT BOARD, DR-663
602 A-1845-719-A s FD ASSY
603 A-2076-813-A s MOUNTED CIRCUIT BOARD, IF-1278
604 A-2078-341-A s CMOS BLOCK ASSY (RP)
605 1-543-793-11 s FILTER, CLAMP (FERRITE CORE)
606 1-856-701-11 s OPTICAL FILTER UNIT
607 1-967-833-11 s HARNESS, SUB (FT-I2C)
608 1-970-788-11 s HARNESS, SUB (CIS-PWR)
609 1-970-790-11 s HARNESS, SUB(DPR-IF(40))
610 2-640-315-02 o SCREW (M2X5), SMALL, +P, SW
611 3-100-481-01 s GASKET (4X5X50)
612 3-655-653-01 s BAND (TAITON), BINDING
613 3-699-048-01 s CAP, MOUNT
614 3-776-897-02 s GUIDE PLATE
615 4-263-184-04 s RING, BAYONET
616 4-562-323-01 s LEVER, MOUNT
617 4-654-273-02 s ACE (M2), LOCK [B2x5]
618 4-264-474-01 s BOLT,BHS M2X15
619 3-257-200-01 CLAMP, CORD
7-627-452-18 s SCREW,PRECISION +K 2X3
HDC4300
10-8
