1-2. Connectors and Cables

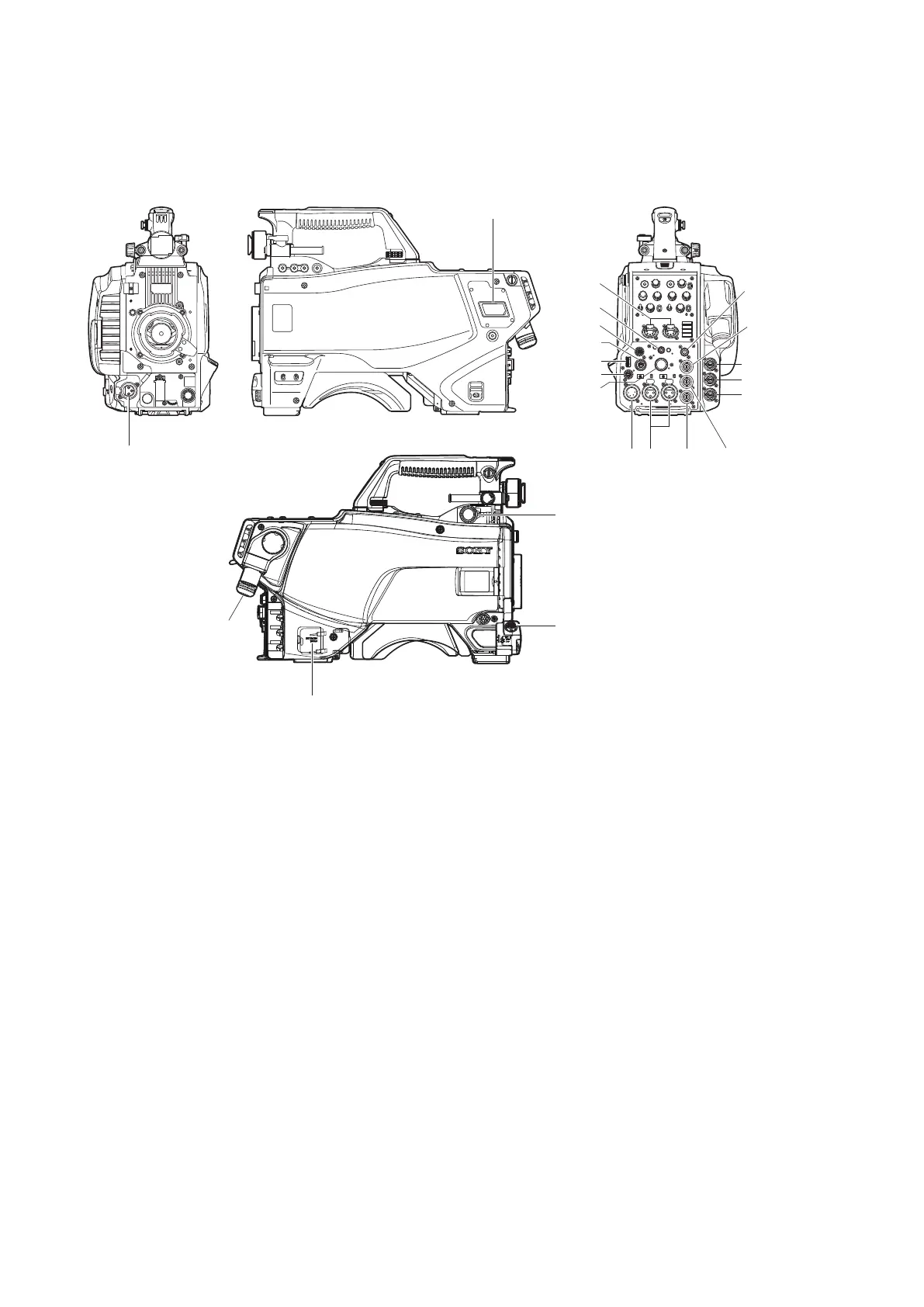

1-2-1. Connector Input/Output Signals
19
22
1
21
15
16
1214 5 6
2
7
13
10
18
20
9
17
3
11
4
8
Input/Output Signals
1. BPU
10.692 Gbps/10.681319 Gbps serial
2. PROMPTER/GENLOCK
BNC type 75 Ω, 1.0 V p-p
3. SDI 1
BNC type
3G SDI signal
SMPTE 424M/425M-B compliant
0.8 Vp-p 75 Ω, 2.97 Gbps/2.9679 Gbps Serial
or HD SDI signal
SMPTE 292M/372M, BTA-S004 compliant
0.8 Vp-p 75 Ω, 1.485 Gbps/1.4835 Gbps Serial
4. SDI 2
BNC type
Output: HD SDI signal
SMPTE 292M/372M, BTA-S004 compliant
0.8 Vp-p 75 Ω, 2.97 Gbps/2.9679 Gbps Serial
Input: HD SDI signal
SMPTE 292M, BTA-S004 compliant
0.8 Vp-p 75 Ω, 1.485 Gbps/1.4835 Gbps Serial
5. SDI-MONI
BNC type
HD SDI signal
SMPTE 292M/372M, BTA-S004 compliant
(HDC2500/2570)
SMPTE 292M, BTA-S004 compliant
(HDC2400/2550)
0.8 Vp-p 75 Ω, 1.485 Gbps/1.4835 Gbps Serial
or SD SDI signal
SMPTE 259M compliant
0.8 Vp-p 75 Ω, 270 Mbps Serial
6. TEST OUT
BNC type 75 Ω, 1.0 V p-p
7. EARPHONE
Stereo mini jack
