7. Install the removed parts by reversing the steps of removal.
4-3-2. MEM-147 Board/TX-146 Board
Preparation
1. Remove the outside panel assembly. (Refer to“4-3-1. Outside Panel Assembly”)
Procedure

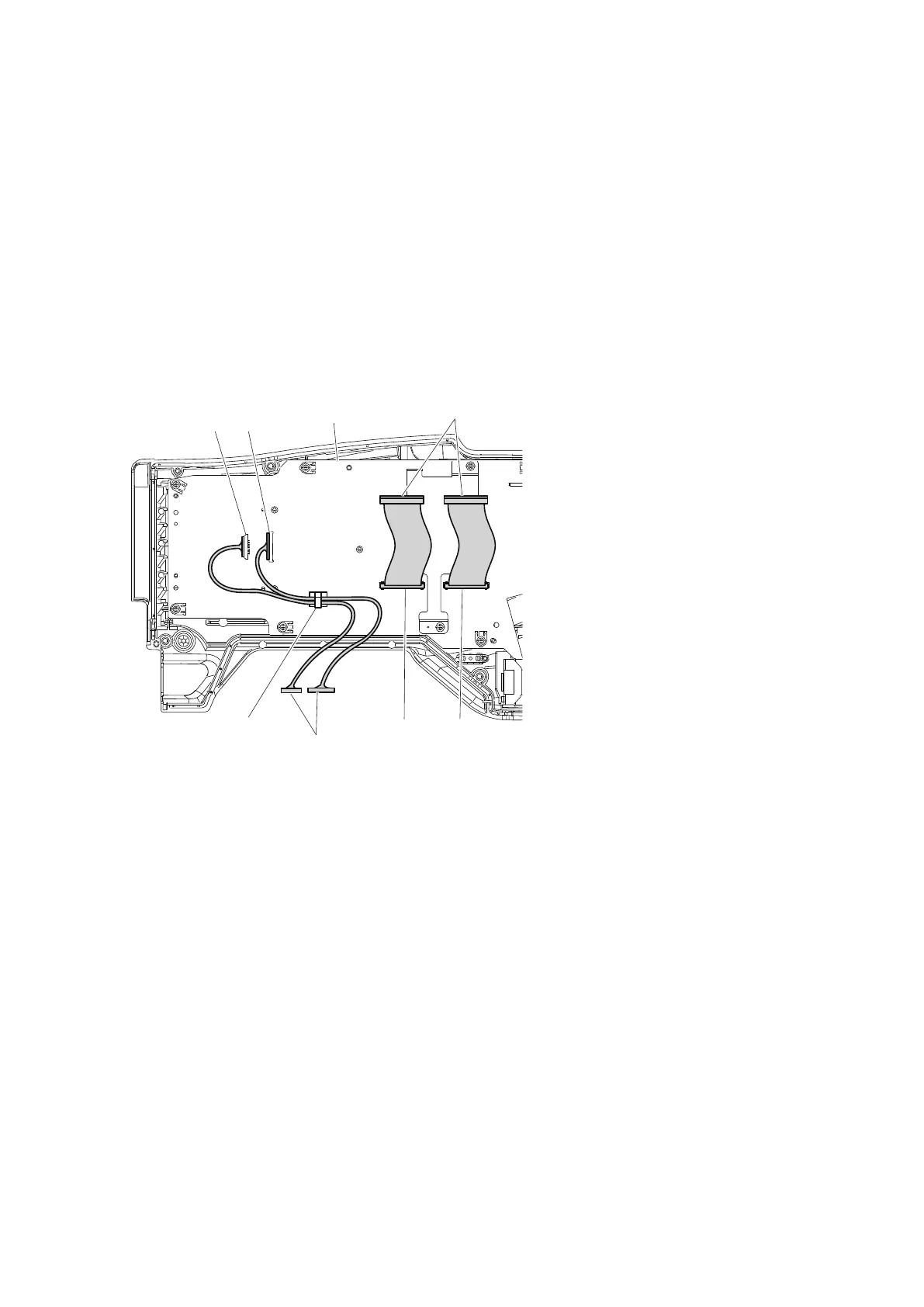

1. Disconnect the two FPCs with connectors (DPR-SDI) from the two connectors (CN001, CN102) on the MEM-147
board.
2. Disconnect the two fine-wire coaxial cables from the two connectors (CN901, CN902) on the MEM-147 board,
and release the two fine-wire coaxial cables from the clampers.
CN902 CN901
MEM-147 board
FPCs with connectors (DPR-SDI)
CN001 CN002
Fine-wire coaxial cables
Clamper
3. Release the fine-wire coaxial cable and coaxial cables from the clamper.
4. Disconnect the three coaxial cables from the three connectors (SDI1, SDI2, and PROMPTER2) on the MEM-147
board.
5. Disconnect the fine-wire coaxial cable from the connector (CN501) on the MEM-147 board.
